Double Wire Fine Wire Drawing Machine

The Double Wire Fine Wire Drawing Machine is designed for fine drawing of copper wire and aluminum wire in cable production, conductor manufacturing and electrical wire processing. The machine supports double-wire operation, high-speed drawing up to 2000 m/min, and the XT22-2 model can be configured with annealing for soft copper wire production.
Get a Quote
Company Profile

An Experienced Team,
Built to Deliver
Overseas.

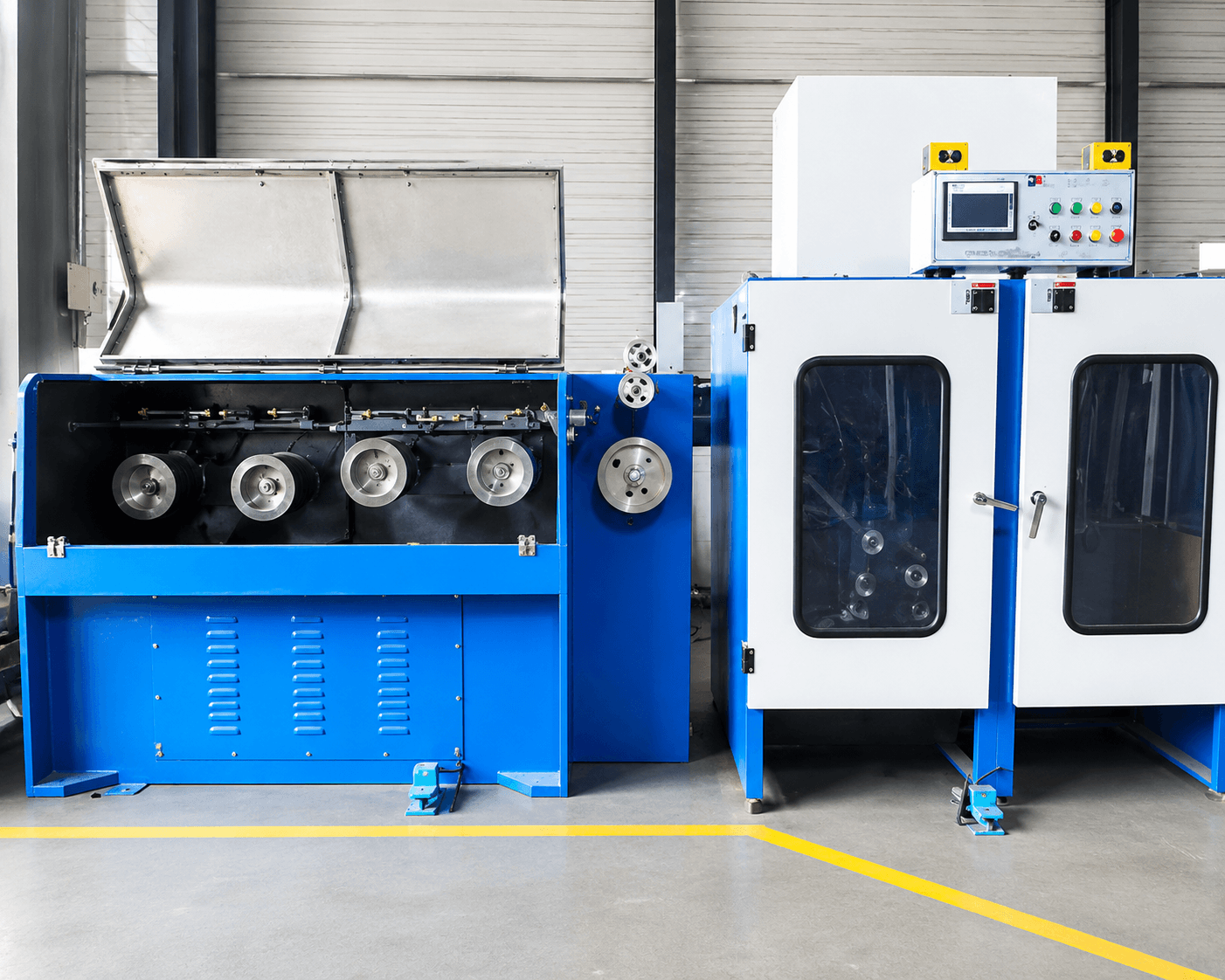

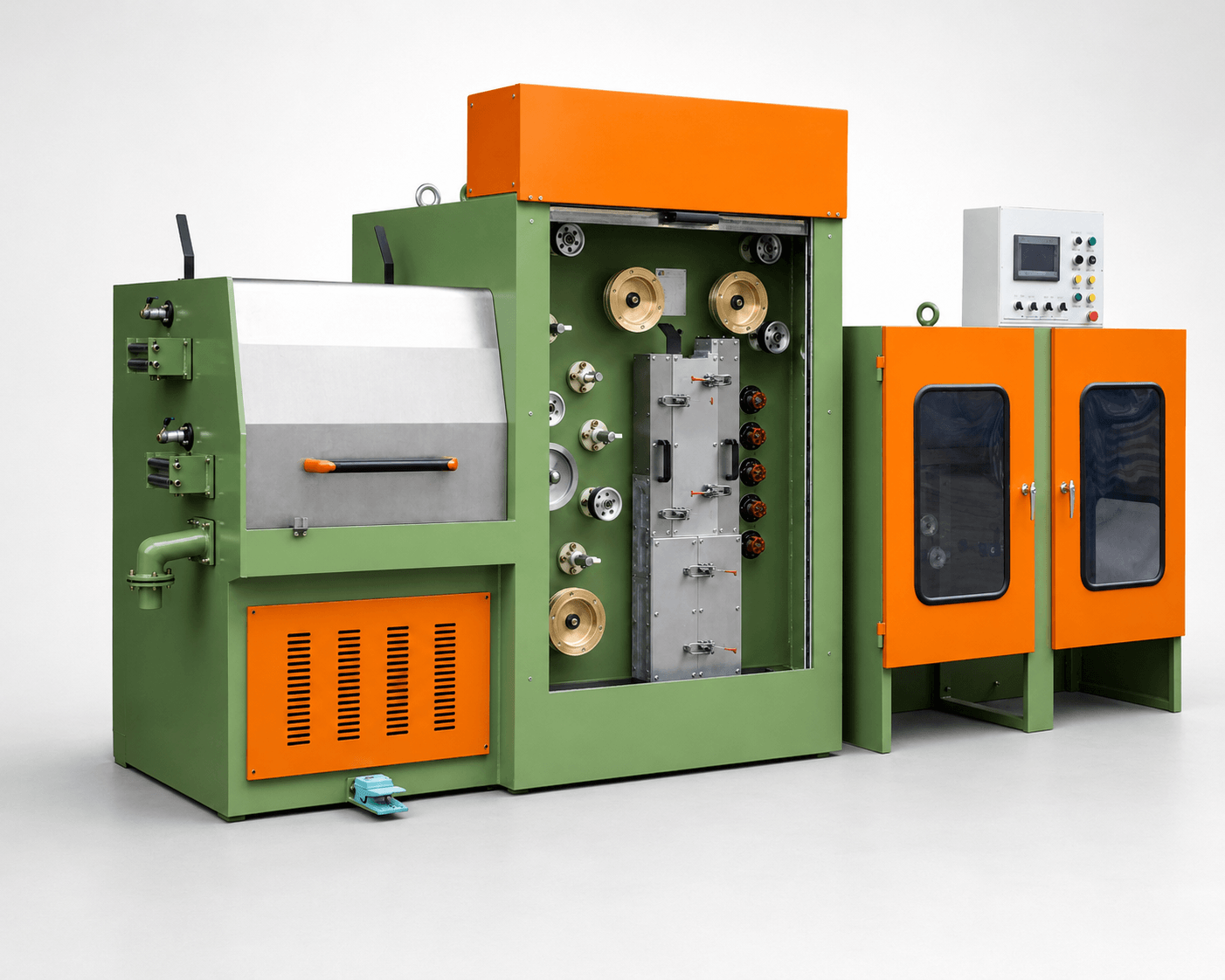

This double head small wire drawing machine, also described as a Double Wire Fine Wire Drawing Machine, is used to reduce copper or aluminum wire to fine wire diameters through a continuous drawing process. It is suitable for wire and cable manufacturers that require stable fine wire output before bunching, stranding, insulation or other downstream cable production processes.

According to the source specification, the XT22-2 model is suitable for copper fine wire drawing with annealing, while the X22-2 model supports copper and aluminum fine wire drawing without the annealing configuration. The machine is suitable for factories looking for reliable fine wire drawing performance, compact equipment layout and flexible production capability.

Product Advantages

Double-wire fine drawing

The machine is designed for two-wire operation, helping cable factories improve output while maintaining stable wire drawing conditions.

Suitable for copper and aluminum wire

The XT22-2 model is specified for copper wire, while the X22-2 model supports copper and aluminum

High mechanical speed

The source specification lists a maximum mechanical speed of 2000 m/min, supporting efficient fine wire production for industrial cable manufacturing.

Optional annealing configuration

The XT22-2 model includes transformer capacity and annealing current parameters, making it suitable for soft annealed copper wire production.

Practical bobbin compatibility

The machine is compatible with PVC or PND300/400 bobbin sizes, supporting common wire collection requirements in cable workshops.

What the Line Includes

The system is delivered as a sequence of coordinated stations, each built and tested in-house before shipment.

  • Dual‑Wire Simultaneous Fine Drawing

    Dual‑wire working design raises production capacity, delivers stable fine‑wire output without oversized machine footprint for cable workshops.

  • Two Optional Machine Models

    Choose XT22‑2 (copper with annealing) or X22‑2 for copper & aluminum drawing, match your material and soft‑wire production demands.

  • Broad Wire‑Size Processing Range

    Output covers 0.15‑0.40 mm copper wire; X22‑2 expands to 0.20‑0.60 mm aluminum wire, covers mainstream fine‑wire cable specifications.

  • High‑Speed Fine Drawing Performance

    Max mechanical speed reaches 2000 m/min, enables high‑efficiency mass production of fine copper and aluminum wire for cable manufacturing.

  • Integrated Annealing for Soft Copper Wire

    XT22‑2 equipped with annealing transformer & DC current unit, completes drawing and softening in‑line for TR annealed copper wire.

  • Standard Bobbin Compatibility

    Works with PVC or PND300/400 bobbins, fits common wire‑collecting workflow in most wire‑and‑cable manufacturing workshops.

  • Stable Drawing Mechanical Structure

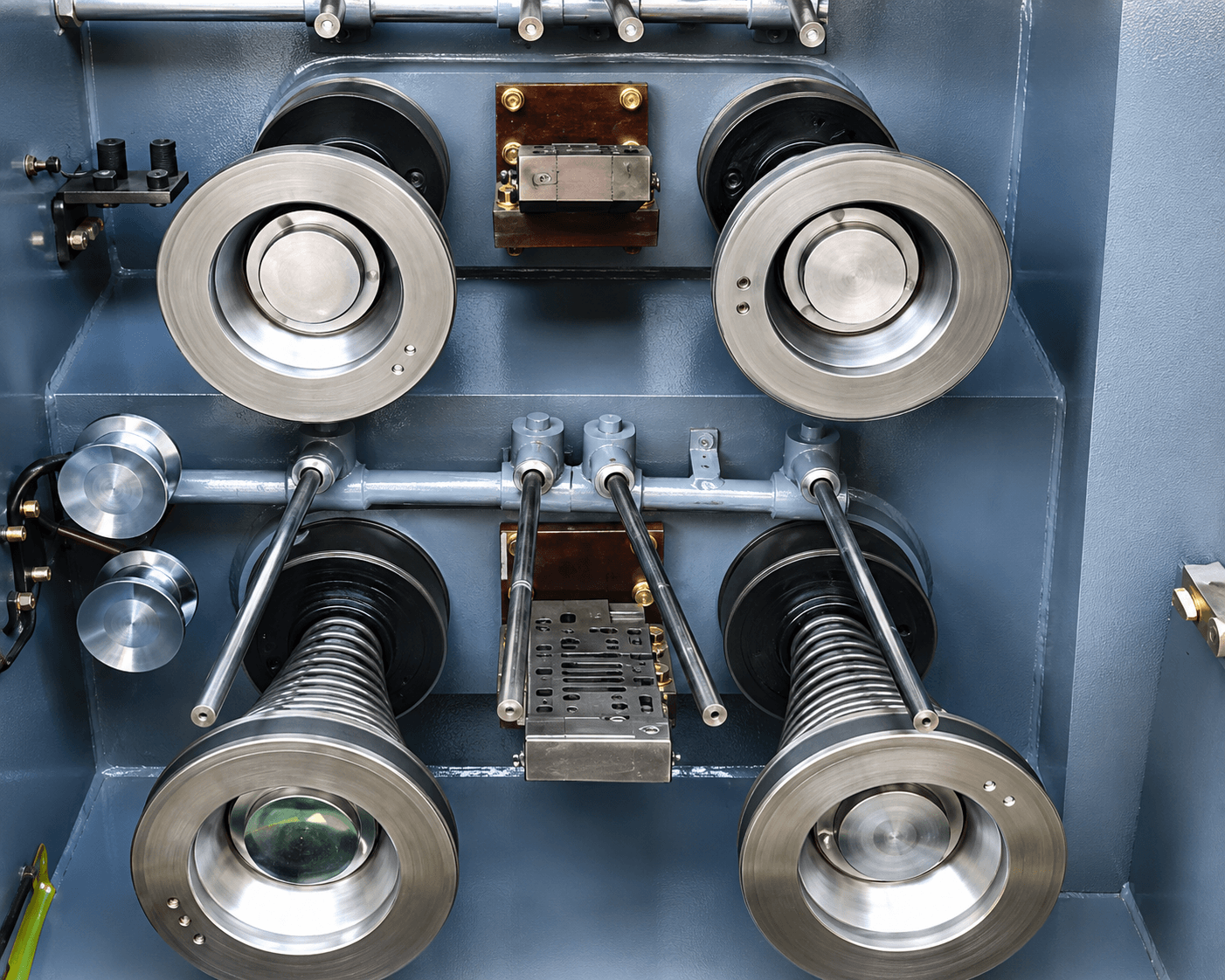

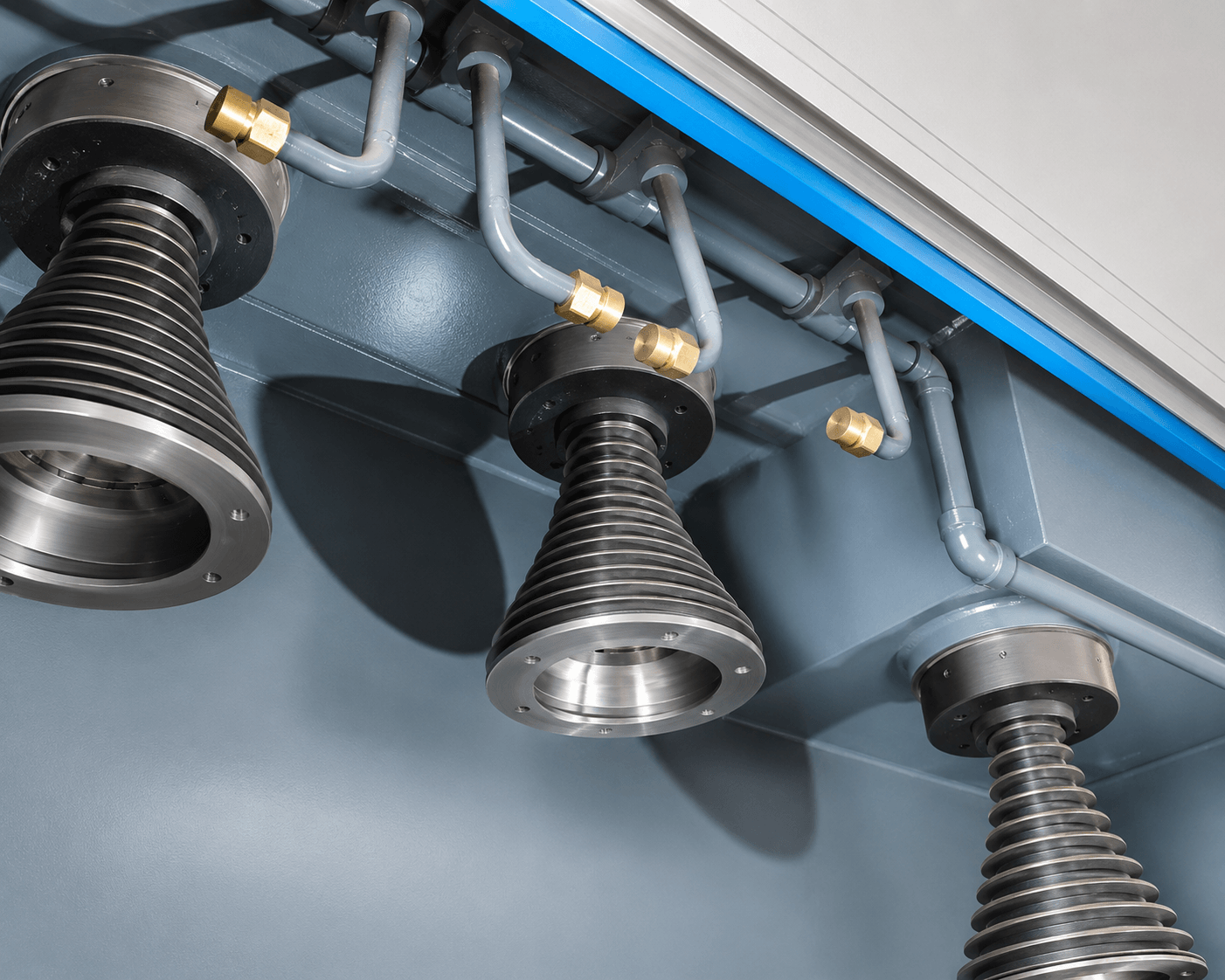

    200 mm drawing cone & capstan wheel with fixed elongation setting, guarantees uniform dimension and smooth surface for finished fine wire.

  • Flexible Custom‑Built Configuration

    Adjust model type, bobbin specification, electric components, local voltage and layout according to workshop space and production targets.

Technical Specifications

Parameter XT22-2 X22-2
Inlet Wire Diameter Max 1.20 mm (Cu) Max 1.20 mm (Cu) / Max 1.60 mm (Al)
Outlet Wire Diameter 0.15-0.40 mm 0.15-0.40 mm (Cu) / 0.20-0.60 mm (Al)
Mechanical Speed Max 2000 m/min Max 2000 m/min
Drawing Cone Diameter 200 mm 200 mm
Capstan Wheel Diameter 200 mm 200 mm
Mechanical Elongation Drawing part 15%; final die 10% Drawing part 15%; final die 10%
Main Motor Power AC 18.5 kW AC 18.5 kW
Take-up Motor Power AC 3 kW AC 3 kW
Transformer Capacity 60 KVA /
Annealing Current Max 800 A DC /
Bobbin Size PVC or PND300/400 PVC or PND300/400
Brake Method Pneumatic Pneumatic
Weight 6000 kg 3500 kg

Applications

  • Copper fine wire drawing for cable production

  • Aluminum fine wire drawing for electrical wire applications

  • Soft annealed copper wire production

  • Building wire and electrical conductor manufacturing

  • Wire preparation before bunching, stranding and insulation

  • Wire and cable factories requiring compact double-wire drawing equipment

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is a double wire fine wire drawing machine used for?
It is used to draw two copper or aluminum wires at the same time into fine wire sizes for cable production, conductor manufacturing and electrical wire processing.
What is the difference between XT22-2 and X22-2?
According to the source specification, XT22-2 is configured for copper wire drawing with annealing parameters, while X22-2 supports copper and aluminum fine wire drawing without the listed annealing configuration.
What outlet wire sizes can be produced?
XT22-2 covers 0.15-0.40 mm. X22-2 covers 0.15-0.40 mm for copper and 0.20-0.60 mm for aluminum.
Can this machine produce soft copper wire?
Yes. The XT22-2 model includes annealing current and transformer capacity parameters, making it suitable for soft annealed copper wire production.
What is the maximum mechanical speed?
The source specification lists a maximum mechanical speed of 2000 m/min. Actual production speed depends on wire size, material and process conditions.
Can the machine configuration be customized?
Yes. Model selection, bobbin size, take-up arrangement, electrical configuration, voltage and factory layout can be customized according to production requirements.
