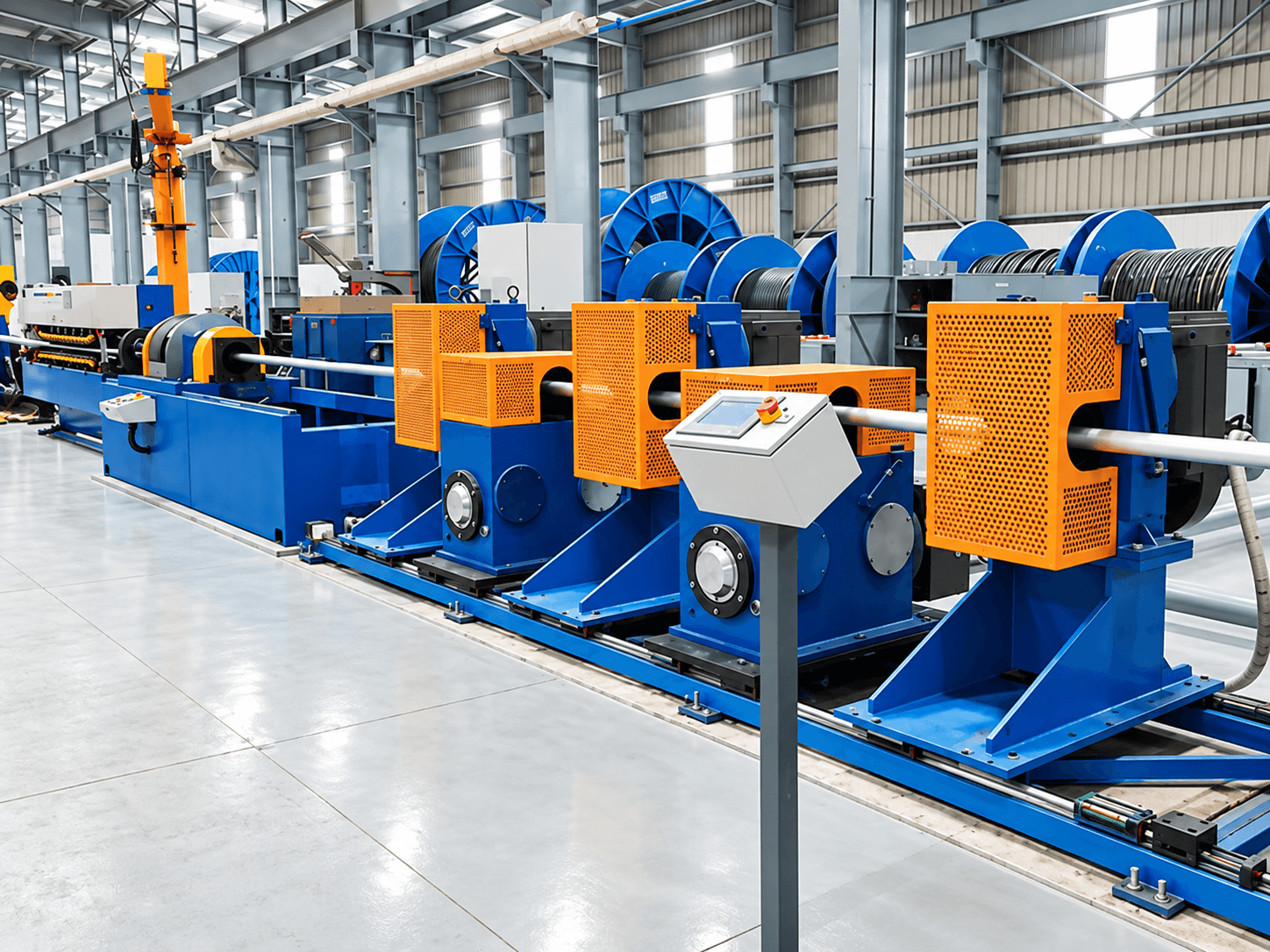

LBF Aluminum Sheathing Continuous Extrusion Machine

Designed for the production of seamless aluminum metallic sheaths for medium-, high- and extra-high-voltage power cables, the LBF continuous extrusion machine delivers stable aluminum tube formation for demanding cable manufacturing lines.
Get a Quote
Company Profile

Overview

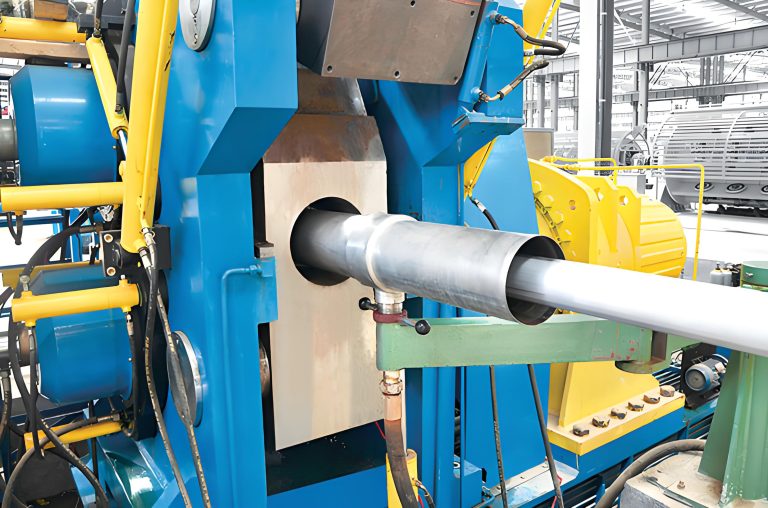

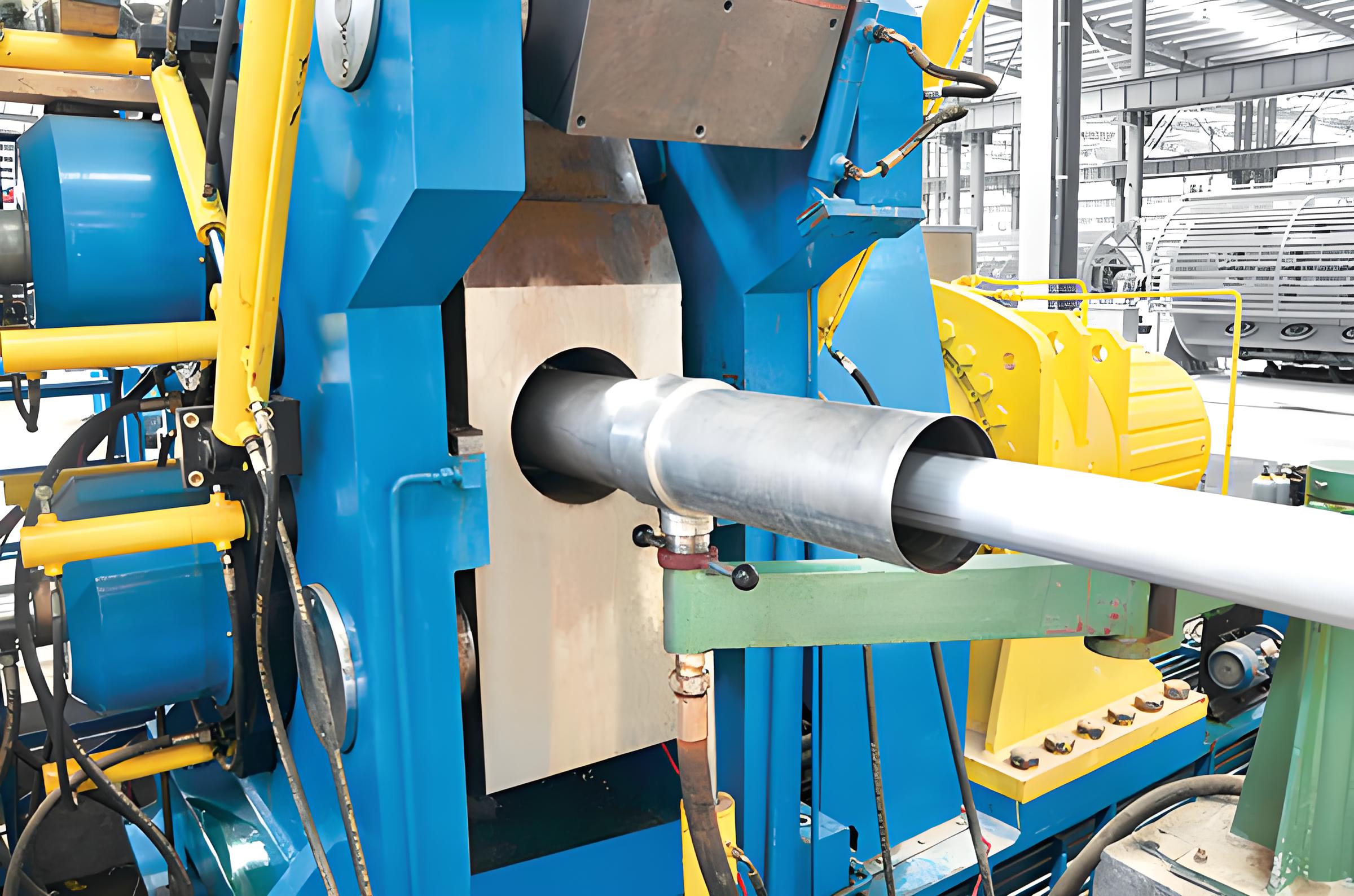

The LBF Aluminum Sheathing Continuous Extrusion Machine is engineered for cable manufacturers that require a continuous and reliable process for forming aluminum sheaths around power cables. It converts aluminum rod into a continuous aluminum tube that can serve as a metallic protective sheath for medium-voltage (MV), high-voltage (HV) and extra-high-voltage (EHV) cable constructions.

Its continuous extrusion process supports consistent tube dimensions and controlled wall thickness, while the downstream corrugation capability allows the aluminum sheath geometry to be adapted to cable design requirements. The equipment is suitable for integration into complete power-cable production lines where production stability, repeatability and dimensional control are important.

Product Advantages

Continuous Aluminum Sheath Forming

Continuous extrusion supports uninterrupted aluminum tube production for efficient cable sheathing operations.

Suitable for MV, HV and EHV Cables

Developed for seamless aluminum metallic sheathing used in medium-, high- and extra-high-voltage power cable manufacturing.

Controlled Tube Wall Thickness

The available wall-thickness range helps manufacturers match different cable designs and mechanical protection requirements.

Adjustable Corrugation Capability

Corrugation pitch and depth can be configured within the specified ranges to suit different sheath structures.

Two Output Configurations

LBF350×2 and LBF420×2 models provide different extrusion outputs for production planning and capacity matching.

Core Equipment

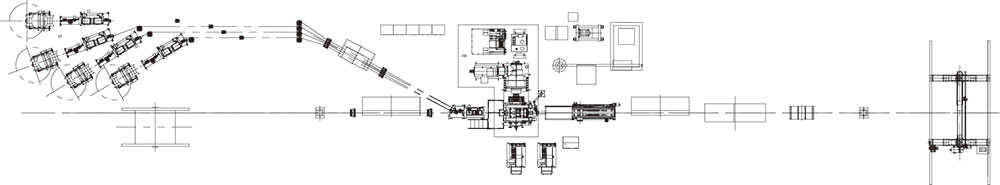

Model Aluminum Rod Extrusion Output Aluminum Tube Wall Aluminum Tube Corrugation Aluminum Tube Corrugation Production Line
Diameter (kg/h) Thickness Range Pitch Range Depth Range L × W
LBF350×2 Ø9.5mm 350 1.5-3.0mm 10-50mm 2-8mm 62×11
LBF420×2 400 1.5-4.0mm

Applications

  • Medium-voltage power cables

  • High-voltage power cables

  • Extra-high-voltage power cables

  • Seamless aluminum metallic sheath production

  • Corrugated aluminum sheath production for cable structures

  • Power-cable production lines requiring continuous aluminum tube forming

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is the LBF Aluminum Sheathing Continuous Extrusion Machine used for?
It is used to form seamless aluminum metallic sheaths for medium-, high- and extra-high-voltage power cables through a continuous extrusion process.
Which aluminum rod diameter is specified for the machine?
The supplied technical data specifies an aluminum rod diameter of Ø9.5mm for both LBF350×2 and LBF420×2.
What extrusion outputs are available?
The LBF350×2 is rated at 350 kg/h, while the LBF420×2 is rated at 400 kg/h.
What aluminum tube wall-thickness range can be produced?
The LBF350×2 covers 1.5-3.0mm, and the LBF420×2 covers 1.5-4.0mm.
Can the aluminum tube be corrugated?
Yes. The supplied specification lists a corrugation pitch range of 10-50mm and a corrugation depth range of 2-8mm.
How do I choose between LBF350×2 and LBF420×2?
Selection should be based on the required production output and aluminum tube wall-thickness range, together with your cable design, target capacity and overall line configuration.
Can the machine be integrated into a complete cable production line?
Yes. It is intended for use as part of an aluminum sheathing process and can be planned together with upstream and downstream cable manufacturing equipment.
What information should be provided when requesting a quotation?
Please provide the target cable type and voltage class, aluminum sheath dimensions, required wall thickness, desired corrugation geometry, production capacity and any line-layout requirements.
Start a project

Tell Us Your Target. We'll Design the Line.

Share your capacity, raw material and site conditions — we'll come back with a process route, equipment selection and a turnkey path to production.

Email Our Team View a Project
Address

No.310–311 National Road, Quanshan District, Xuzhou City, China

Related Machines

Often Delivered Together

Explore More Products
Aluminium Wire Drawing Machine for Aluminum Wire and Cable Production Featured Image
Aluminium Wire Drawing Machine for Aluminum Wire and Cable Production Cables Product Line

This LFDL‑450/13 aluminium wire drawing machine processes aluminium & heat‑resistant alloy rod into round single wire for cables and overhead conductors. With 13 drawing passes, max 25 m/s speed and auto double‑spool take‑up, it boosts continuous production and stable wire surface quality for cable manufacturers.
Double Head Intermediate Wire Drawing Machine Featured Image
Double Head Intermediate Wire Drawing Machine Drawing Lines

The Double Head Intermediate Wire Drawing Machine is designed for drawing copper wire from larger inlet sizes to medium wire diameters used in cable production and conductor manufacturing. Based on the PM200 series specification, the machine supports stable two-wire drawing, adjustable mechanical elongation and optional online annealing for soft copper wire production.
Single Wire Individual Motor Type Rod Breakdown Machine
Single Wire Individual Motor Type Rod Breakdown Machine Drawing Lines

The Single Wire Individual Motor Type Rod Breakdown Machine is designed for drawing copper, aluminum and aluminum alloy rods into different wire diameters for cable and conductor production. With individual motor drive, adjustable mechanical elongation rate, optional annealer and flexible take-up systems, it provides stable wire drawing performance for wire and cable manufacturers.
Oxygen-Free Copper Rod Upcast Machine Featured Image
Oxygen-Free Copper Rod Upcast Machine Oxygen-free Copper Rod Upcast Machine

The Oxygen-Free Copper Rod Upcast Machine is a complete copper rod continuous casting solution for producing high-purity oxygen-free copper rod by the upward casting process. It is designed for copper rod manufacturers, wire and cable factories, electrical material producers and non-ferrous metal processing plants that require stable rod quality, smooth surface and low oxygen content. Based on the SL28-QW4B-S-B-8/20 configuration, the Oxygen Free Copper Rod Upcasting Line adopts a power-frequency induction combined furnace, 28-head servo upcasting machine, synchronous guiding and automatic coiling system to produce 8 mm, 12.5 mm, 16 mm and 20 mm OFC copper rods.

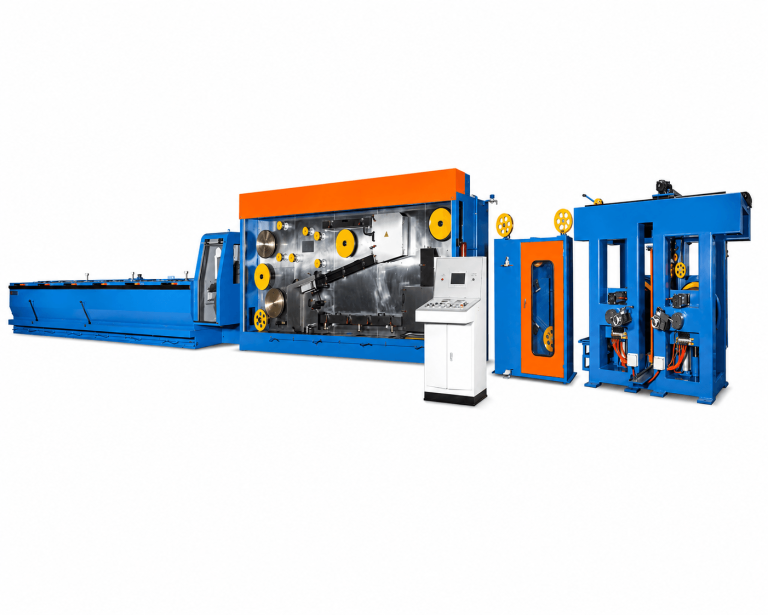

The Gear Type Rod Breakdown Machine is designed for drawing copper, aluminum and aluminum alloy rods into finished wire for cable and conductor production. With a traditional gear transmission structure, stable high-speed drawing performance, optional online annealer and flexible take-up systems, it provides a practical solution for wire and cable manufacturing plants.
