LFDT Φ450 Multi-Motor Driven Capstan-Type Copper Rod Breakdown Machine

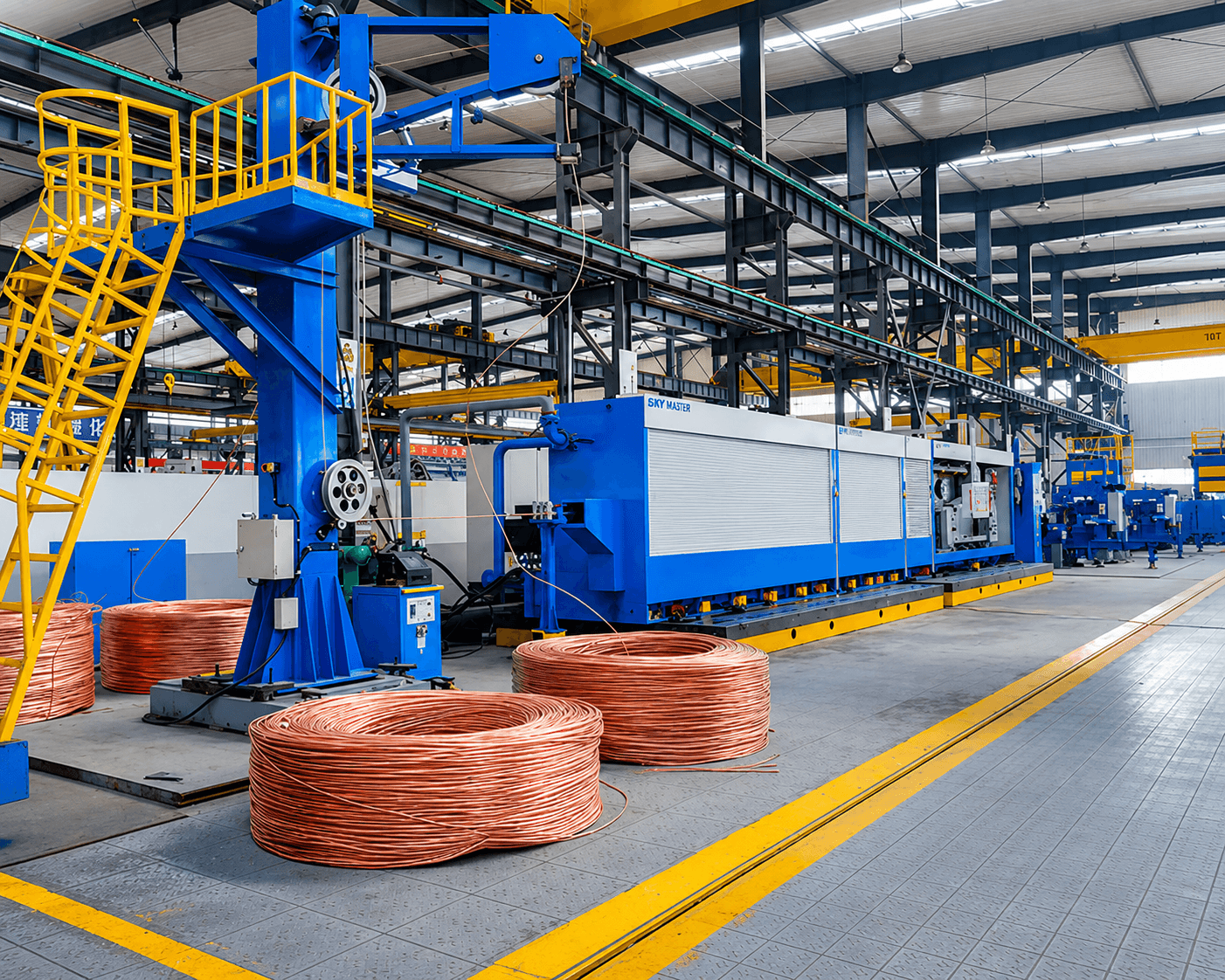

The LFDT Φ450 is built for continuous copper rod breakdown in wire and cable production plants. Available with 9, 11 or 13 drawing passes, the machine supports different finished wire sizes and production requirements. Its modular configuration allows customers to select a suitable annealing and take-up solution for their production process.
Get a Quote
Company Profile

Overview

The LFDT Φ450 is built for continuous copper rod breakdown in wire and cable production plants. Available with 9, 11 or 13 drawing passes, the machine supports different finished wire sizes and production requirements. Its modular configuration allows customers to select a suitable annealing and take-up solution for their production process.

Product Advantages

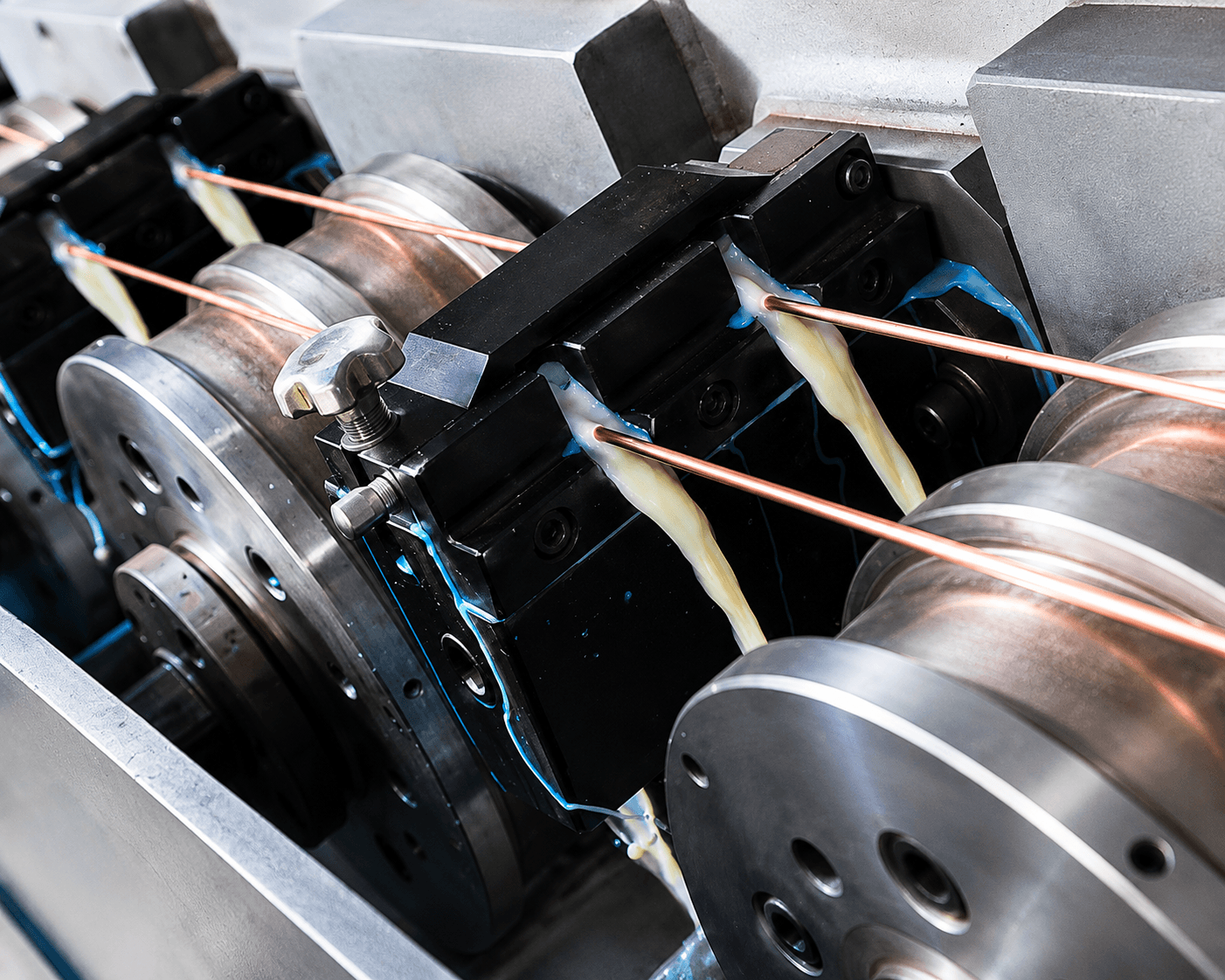

Independent Multi-Motor Drive

Individual motor control for each drawing section helps maintain stable operation during continuous production.

Multiple Drawing Configurations

Available in 9-pass, 11-pass and 13-pass versions for different wire diameter requirements.

High Production Speed

Maximum line speed reaches up to 30 m/s, supporting efficient industrial production.

Continuous Annealing Compatible

Can be integrated with an annealing unit for continuous drawing and heat treatment.

Flexible Take-Up Options

Compatible with dual-spool take-up or coiler systems according to finished wire specifications.

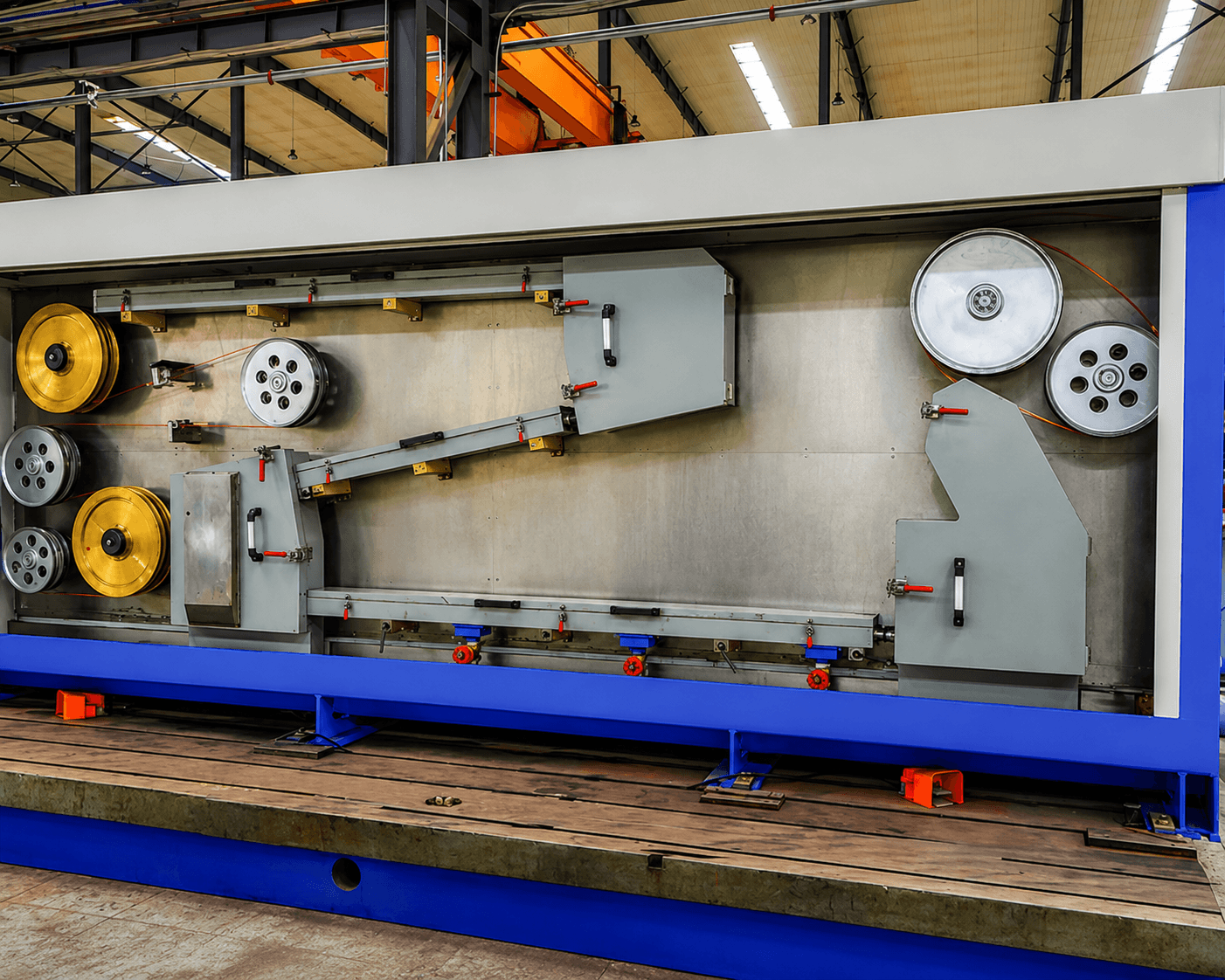

Core Equipment

Parameter LFDT Φ450-9 LFDT Φ450-11 LFDT Φ450-13
Capstan Diameter Φ450 mm Φ450 mm Φ450 mm
Drawing Passes 9 11 13
Inlet Diameter Φ8.0 mm Φ8.0 mm Φ8.0 mm
Outlet Diameter Φ1.85–Φ4.0 mm Φ1.5–Φ4.0 mm Φ1.2–Φ4.0 mm
Max. Line Speed 25 m/s 30 m/s 30 m/s
Line Size 35 × 6 m 37 × 6 m 38 × 6 m

Applications

  • Power cable conductors

  • Electrical cables

  • Communication cables

  • Wire bunching and stranding

  • Building wires

  • Automotive wires

  • Copper conductor production

  • General wire and cable manufacturing

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What raw material does this machine process?
It is mainly designed for Φ8.0 mm bright copper rod.
What finished wire sizes are available?
Depending on the model, the outlet diameter ranges from approximately Φ1.2 mm to Φ4.0 mm.
Which model should I choose?
The 9-, 11- and 13-pass models are selected according to required outlet diameter, speed and production capacity.
Can continuous annealing be included?
Yes. The machine can be configured with a continuous annealing system.
What take-up systems are available?
Dual-spool take-up and coiler take-up systems can be configured according to production requirements.
Can the production line be customized?
Yes. The line layout and supporting equipment can be adjusted according to the customer’s workshop and production requirements.
