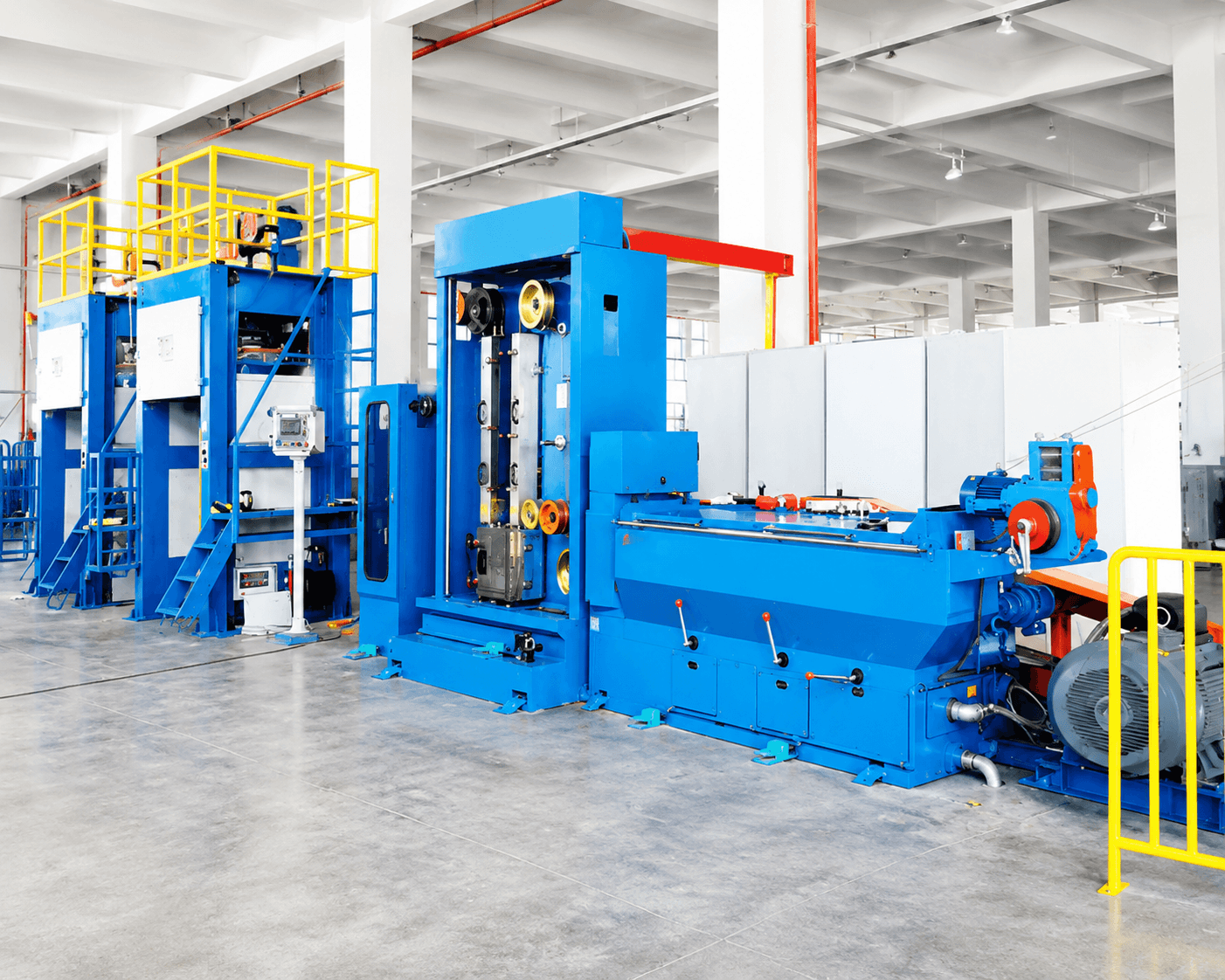

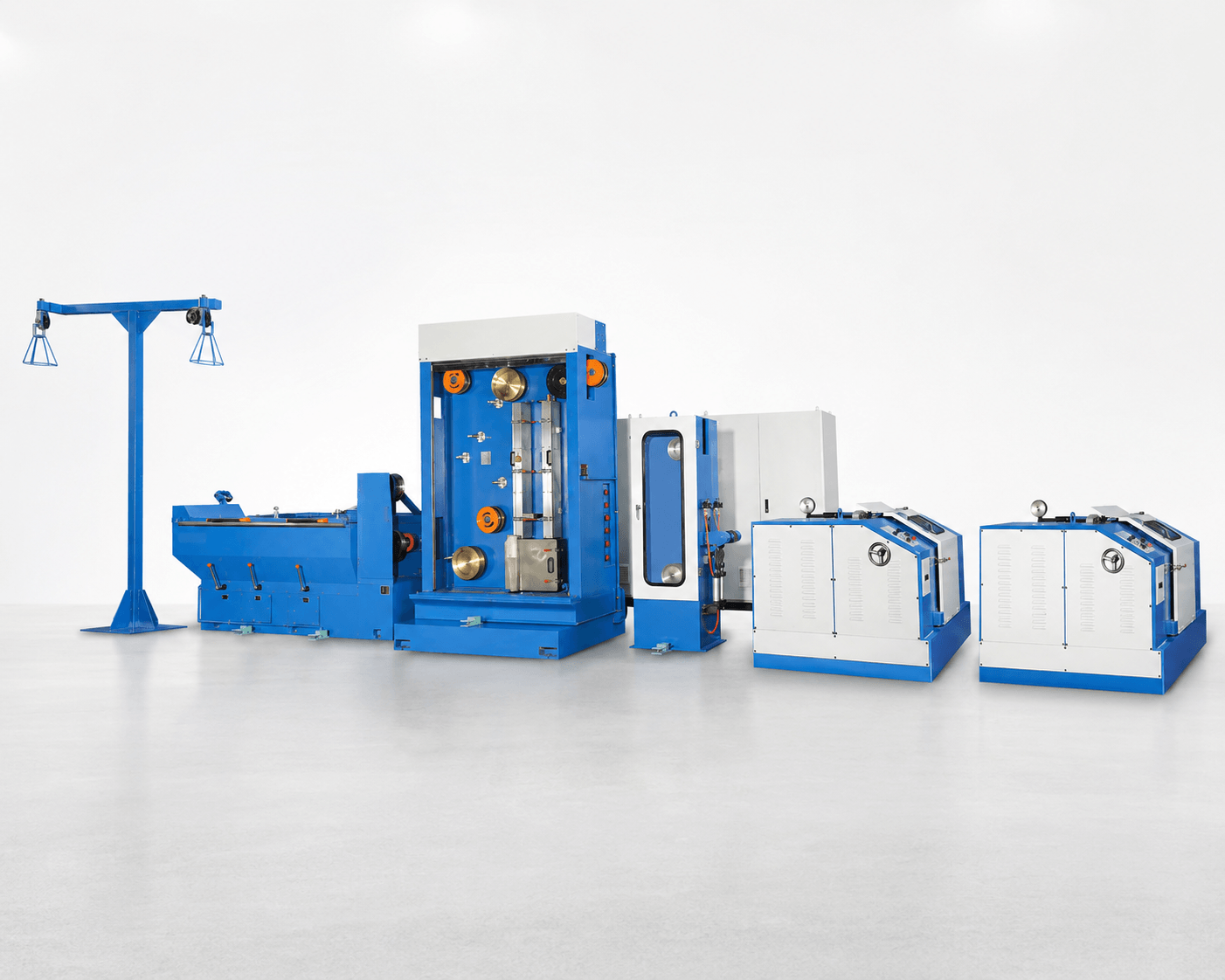

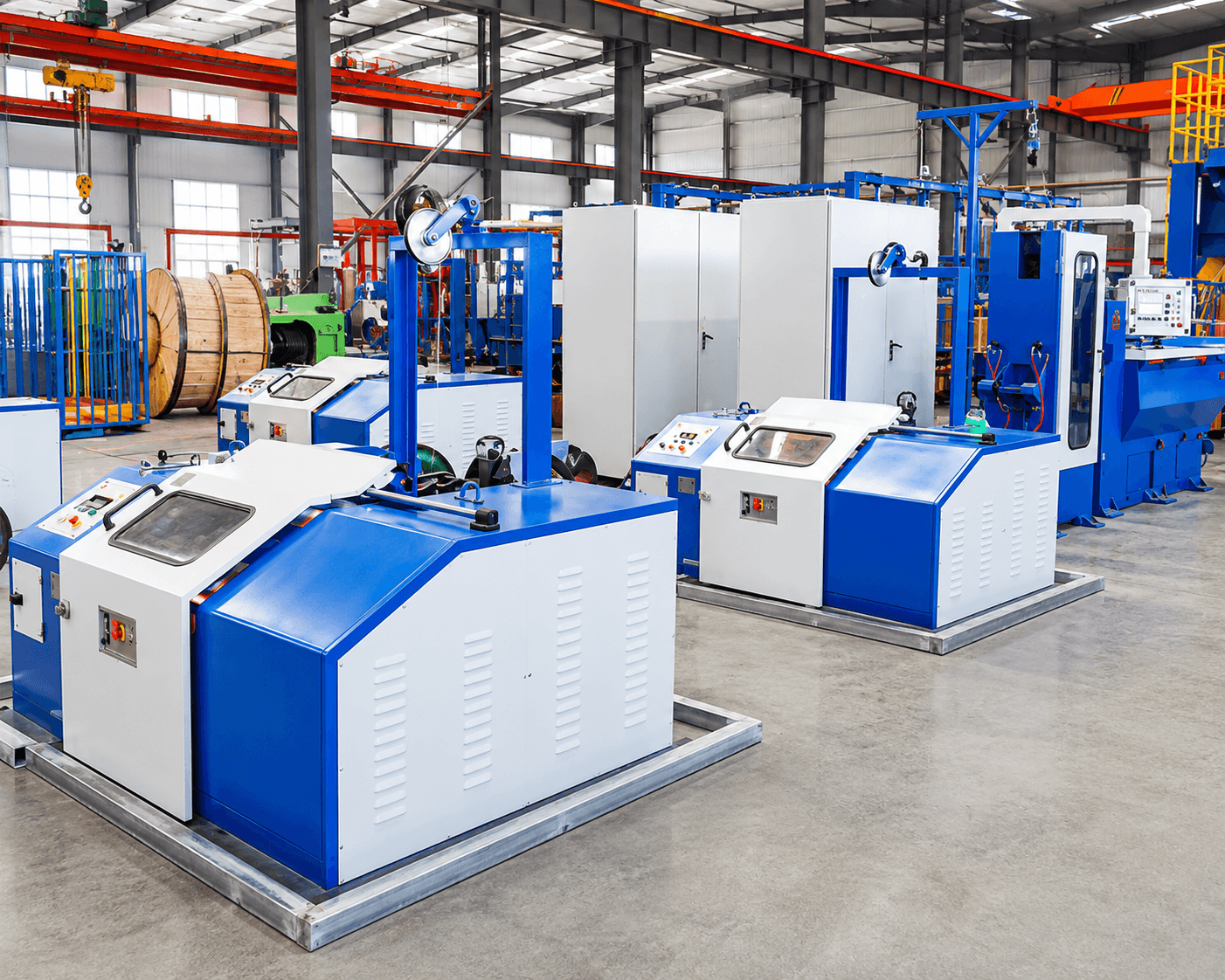

Double Head Intermediate Wire Drawing Machine

The Double Head Intermediate Wire Drawing Machine is designed for drawing copper wire from larger inlet sizes to medium wire diameters used in cable production and conductor manufacturing. Based on the PM200 series specification, the machine supports stable two-wire drawing, adjustable mechanical elongation and optional online annealing for soft copper wire production.
Get a Quote
Company Profile

An Experienced Team,
Built to Deliver
Overseas.

This double head intermediate wire drawing machine is suitable for copper wire processing between rod breakdown and fine wire drawing stages. The PM200-13-2 model processes two copper wires simultaneously, reducing production time while maintaining consistent wire diameter and surface quality. The machine can be matched with a ZLT4000-2 annealer for continuous drawing and annealing, helping cable factories produce hard copper wire or soft annealed copper wire according to downstream process requirements.

For projects that require higher output, the same source specification also includes the PM200-13-4 four-wire configuration and ZLT6000-2 annealer. The final machine layout, electrical configuration and take-up system can be customized according to plant space, production target, wire specification and voltage requirements.

Product Advantages

Double-head copper wire drawing

The PM200-13-2 configuration draws two wires at the same time, improving production efficiency for medium copper wire before stranding, bunching or fine drawing.

Individual motor type drawing design

The individual motor configuration supports stable synchronization and flexible drawing control, which is helpful for reducing wire tension fluctuation during high-speed operation.

Wide outlet wire range

The double-head model covers 2 x (0.80-1.60 mm) outlet wire, making it suitable for common copper conductor and cable manufacturing applications.

Optional online annealing

The ZLT4000-2 annealer can be integrated for soft copper wire production, supporting continuous drawing and annealing in one line.

Adjustable mechanical elongation

The machine specification lists adjustable mechanical elongation, allowing the drawing process to be adapted to different wire sizes and production requirements.

What the Line Includes

The system is delivered as a sequence of coordinated stations, each built and tested in-house before shipment.

  • Dual‑Wire Simultaneous Drawing

    PM200‑13‑2 runs two copper wires at once, lifting production output while keeping compact footprint for cable workshops.

  • Individual‑Motor Drawing System

    Independent servo‑motor control minimizes tension fluctuation, ensures stable high‑speed operation and flexible process tuning.

  • Wide Wire‑Size Processing Range

    Double‑head model supports inlet max 2×3.0 mm, outlet 2×(0.80‑1.60 mm), fits mainstream copper conductor & cable manufacturing.

  • Optional Integrated Online Annealer

    Match ZLT4000‑2 contact annealer to realize inline softening, one‑line production for both hard TY wire and soft TR wire.

  • Adjustable Mechanical Elongation

    Tunable mechanical elongation adapts drawing craft for different copper wire specifications and real‑world production conditions.

  • High‑Speed Production Capacity

    Max mechanical speed reaches 1800 m/min, greatly improves throughput for medium‑size copper‑wire mass production.

  • Reliable Mechanical Structure

    200 mm drawing cone & 250 mm capstan wheel with 13‑die layout, guarantees consistent wire dimension and smooth surface finish.

  • Full‑scope Customizable Configuration

    Select 2‑wire /4‑wire setup, annealer unit, pay‑off & take‑up style, electric components and layout according to plant conditions.

Technical Specifications

Parameter PM200-13-2 Double Head Model PM200-13-4 Optional Four-Wire Model
Inlet Wire Diameter Max 2 x 3.0 mm Max 4 x 3.0 mm
Outlet Wire Diameter 2 x (0.80-1.60 mm) 4 x (0.60-1.60 mm)
Mechanical Speed Max 1800 m/min Max 1800 m/min
Maximum Number of Dies 13 13
Drawing Cone Diameter 200 mm 200 mm
Capstan Wheel Diameter 250 mm 250 mm
Mechanical Elongation Adjustable Adjustable
Servo Motor Power 15-22 kW 15-22 kW
Applicable Material Copper wire Copper wire
Customization Available according to production requirements Available according to production requirements

Applications

  • Copper wire intermediate drawing for cable production

  • Power cable and building wire manufacturing

  • Electrical conductor manufacturing

  • Soft annealed copper wire production

  • Copper wire preparation before bunching, stranding or fine drawing

  • Wire and cable factories requiring stable medium wire output

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is a double head intermediate wire drawing machine used for?
It is used to draw two copper wires at the same time from larger inlet diameters to medium wire sizes for cable production and conductor manufacturing.
What is the main model for the double-head configuration?
According to the source specification, the PM200-13-2 model is the two-wire configuration, with inlet diameter Max 2 x 3.0 mm and outlet diameter 2 x (0.80-1.60 mm).
Can the machine be supplied with an annealer?
Yes. The ZLT4000-2 annealer is listed for the double-head production range, and an annealing system can be integrated for soft copper wire production.
What is the maximum mechanical speed?
The maximum mechanical speed shown in the source specification is 1800 m/min. Actual production speed depends on wire size, material condition and production requirements.
Can this machine produce soft copper wire?
Yes. When matched with an online annealer, the machine can produce TR soft copper wire within the applicable production range.
Can the line be customized for our factory?
Yes. Machine model, annealer, pay-off, take-up, electrical system, voltage and layout can be customized according to production requirements.
