CLYG High-Speed Cradle-Type Cabling Machine

High-speed cradle-type cabling equipment for laying up multiple insulated cable cores, with configurable reel sizes, line speeds and load capacities for industrial cable production.
Get a Quote

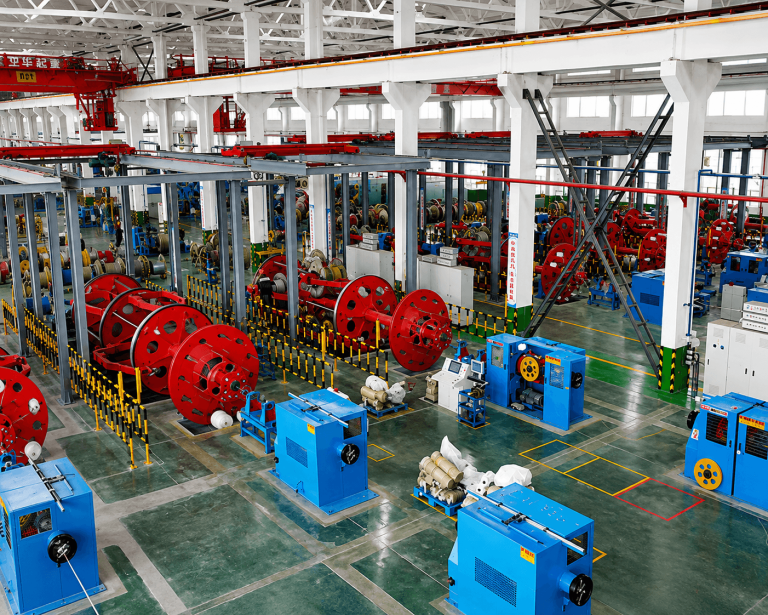

Company Profile

Overview

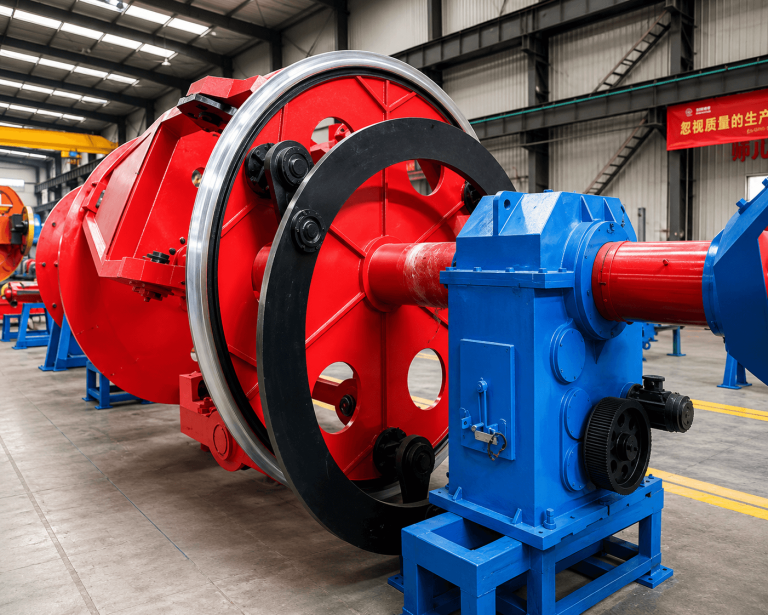

The CLYG High-Speed Cradle-Type Cabling Machine is developed for the laying-up stage of multi-core cable manufacturing. Its cradle arrangement allows individual reels to rotate in a controlled manner while the cable cores are brought together into a stable, uniform cable structure. The machine is intended for manufacturers that need reliable handling of insulated cores together with practical production speeds and repeatable cabling quality.

The CLYG series is available with several reel sizes and corresponding payload capacities, making it suitable for projects ranging from medium-size cable constructions to heavier multi-core cable assemblies. Machine selection can be matched to single-core diameter, reel weight, required cabling speed and available workshop space, allowing the equipment to be integrated into new or existing cable production lines.

Product Advantages

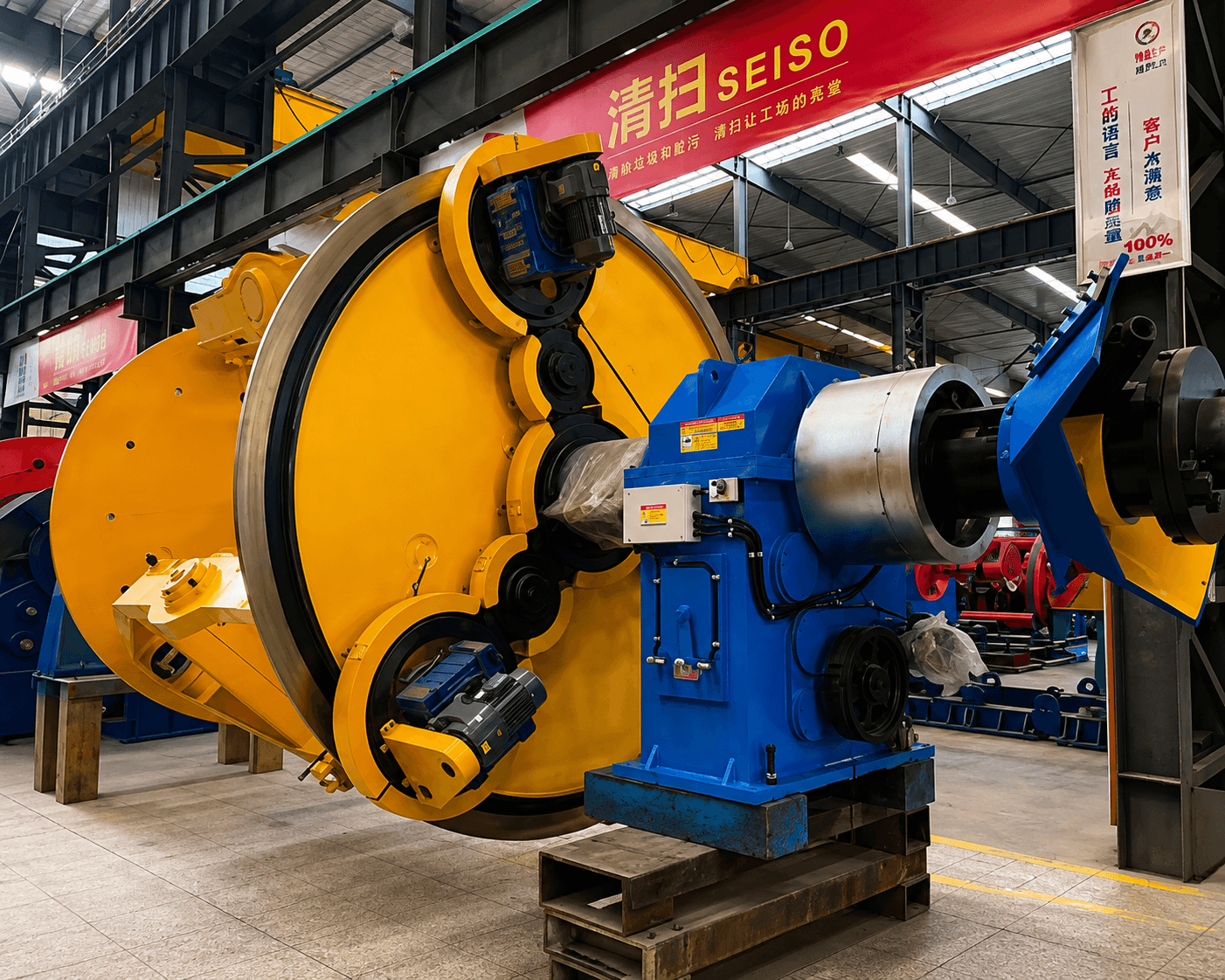

Cradle-Type Cable Laying-Up

The cradle structure supports organized pay-off of individual cable cores while they are assembled into the final cable configuration.

High-Speed Production Options

Different cradle combinations provide practical speed choices for manufacturers balancing output, cable size and process stability.

Multiple Reel Sizes

Four listed reel sizes allow the equipment to cover a broad range of production requirements without relying on one fixed configuration.

Heavy Reel Loading Capacity

The available configurations support reel loads from 1500 kg to 4000 kg, helping accommodate larger cable cores and longer production runs.

Flexible Cable Diameter Range

The listed single-wire diameter ranges allow the machine to be selected for different cable core sizes and finished cable constructions.

Core Equipment

Reel Size (mm) Max. Speed (rpm) Single Wire Diameter (mm) Reel Load (kg) Production Line L × W (m)
3B (1+3B) 4B (1+4B) 1+1+4B
Ø1000 70 60 60 Ø10~Ø20 1500 34×5
Ø1250 60 50 50 Ø10~Ø25 2000 39×6
Ø1600 45 35 35 Ø10~Ø35 3000 45×7
Ø2000 21 16 16 Ø15~Ø40 4000 53×9

Applications

  • Multi-core power cable laying-up

  • Insulated cable core assembly

  • Control and industrial cable production

  • Large cross-section cable core cabling

  • Cable manufacturing lines requiring heavy reel handling

  • New cable plants and production-line capacity upgrades

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is the CLYG High-Speed Cradle-Type Cabling Machine used for?
It is used to lay up multiple insulated cable cores into a combined cable structure during the cabling stage of wire and cable production.
What reel sizes are available in the listed configurations?
The technical data lists Ø1000, Ø1250, Ø1600 and Ø2000 reel sizes.
What is the maximum reel loading capacity?
Depending on the selected model, the listed reel loading capacity ranges from 1500 kg to 4000 kg.
Which speed configurations are provided?
The table includes speed data for 3B (1+3B), 4B (1+4B) and 1+1+4B configurations.
How should I select the correct machine size?
Selection should be based on the cable-core diameter, reel size, reel weight, required production speed and available installation space.
Can the machine be integrated into a complete cable production line?
Yes. The CLYG cabling machine can be configured as part of a broader cable-processing line, with the surrounding equipment selected according to the required manufacturing process.
