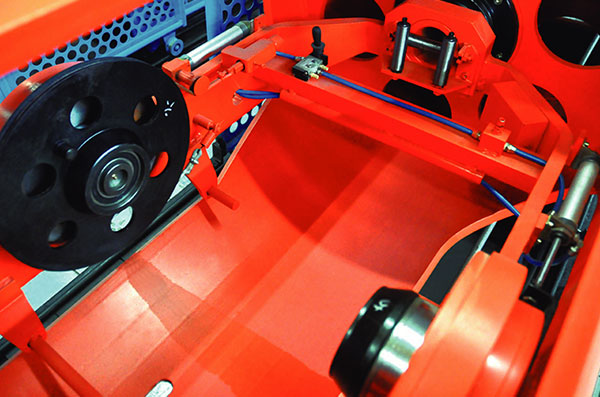

JGG Tubular Stranding Machine for Copper, Aluminum & Steel Wire

High-speed tubular stranding machine designed for copper, aluminum and steel wire stranding, with configurations also suitable for steel wire rope production.
Get a Quote
Company Profile

Overview

The JGG Tubular Stranding Machine is designed for the high-speed stranding of copper wire, aluminum wire and steel wire. It can also be configured for the production of steel wire rope and other stranded wire products.

Its tubular rotating structure helps maintain stable wire tension and uniform strand geometry during continuous production. Different cage sizes and bobbin configurations allow the machine to accommodate a wide range of conductor diameters and production capacities.

The machine is suitable for cable manufacturers, conductor producers and wire processing plants requiring reliable stranding performance, flexible production configurations and consistent finished-product quality.

Product Advantages

High-Speed Stranding Performance

The tubular structure is designed for stable high-speed rotation, helping improve production efficiency while maintaining consistent strand quality.

Multiple Bobbin Configurations

Available configurations include 6B, 12B, 18B, 24B and 36B, allowing manufacturers to select the appropriate setup for different wire constructions.

Wide Material Compatibility

Suitable for stranding copper wire, aluminum wire and steel wire, as well as selected steel wire rope production requirements.

Flexible Production Configuration

Different bobbin sizes, cage specifications and wire ranges can be selected according to the required conductor structure and production process.

Flexible Take-Up Options

Compatible with dual-spool take-up or coiler systems according to finished wire specifications.

Core Equipment

Bobbin Size Max. Cage Speed – 6B 12B 18B 24B 36B Large Bobbin Size Max. Bow Strander Speed Aluminum Wire Copper Wire Steel Wire
Ø200 1500 1400 1300 1100 900 — — Ø0.8–Ø1.5 Ø0.6–Ø1.5 Ø0.2–Ø0.8
Ø315 1400 1300 1200 1000 800 — — Ø1.2–Ø2.0 Ø1.0–Ø2.0 Ø0.4–Ø1.0
Ø400 1300 1200 1100 900 800 Ø800 500 Ø1.5–Ø3.0 Ø1.2–Ø3.0 Ø0.6–Ø2.0
Ø500 1100 1000 850 750 700 Ø1000 400 Ø1.5–Ø4.0 Ø1.5–Ø4.0 Ø0.75–Ø3.0
Ø560 900 800 700 650 600 Ø1250 350 Ø1.5–Ø5.0 Ø1.5–Ø5.0 Ø0.85–Ø3.5
Ø630 900 800 700 650 600 Ø1250 350 Ø1.5–Ø5.0 Ø1.5–Ø5.0 Ø0.85–Ø3.5
Ø710 600 500 450 400 350 Ø1600 300 Ø1.5–Ø6.6 Ø1.5–Ø6.6 Ø0.85–Ø4.5
Ø760 500 450 400 350 300 Ø1600 300 Ø2.0–Ø7.0 Ø2.0–Ø7.0 Ø1.2–Ø4.5
Ø800 450 400 350 300 220 Ø1600 300 Ø2.0–Ø7.0 Ø2.0–Ø7.0 Ø1.2–Ø4.5

Applications

  • Copper Conductor Stranding

  • Aluminum Conductor Stranding

  • Overhead Conductor Production

  • Power & Electrical Cable Manufacturing

  • Steel Wire Stranding

  • Steel Wire Rope Production

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What materials can the JGG Tubular Stranding Machine process?
The machine is suitable for stranding copper wire, aluminum wire and steel wire. It can also be configured for certain steel wire rope production applications.
What bobbin configurations are available?
Depending on the machine specification, the tubular strander can be configured with 6B, 12B, 18B, 24B or 36B arrangements.
What is the maximum wire diameter the machine can process?
The applicable diameter depends on the selected bobbin size and wire material. For larger configurations, aluminum and copper wire diameters can reach Ø7.0, while steel wire can reach Ø4.5 according to the technical table.
Can the machine be used for both copper and aluminum conductors?
Yes. The JGG series is designed for both copper and aluminum wire stranding, making it suitable for different conductor and cable manufacturing requirements.
Can the machine be configured for steel wire rope production?
Yes. In addition to conductor stranding, the JGG tubular stranding machine can also be used for suitable steel wire rope stranding applications.
How do I choose the correct JGG model?
The appropriate model should be selected according to your wire material, single-wire diameter, number of wires, bobbin size, required strand structure and production speed. Providing these parameters allows the production line to be configured more accurately.
