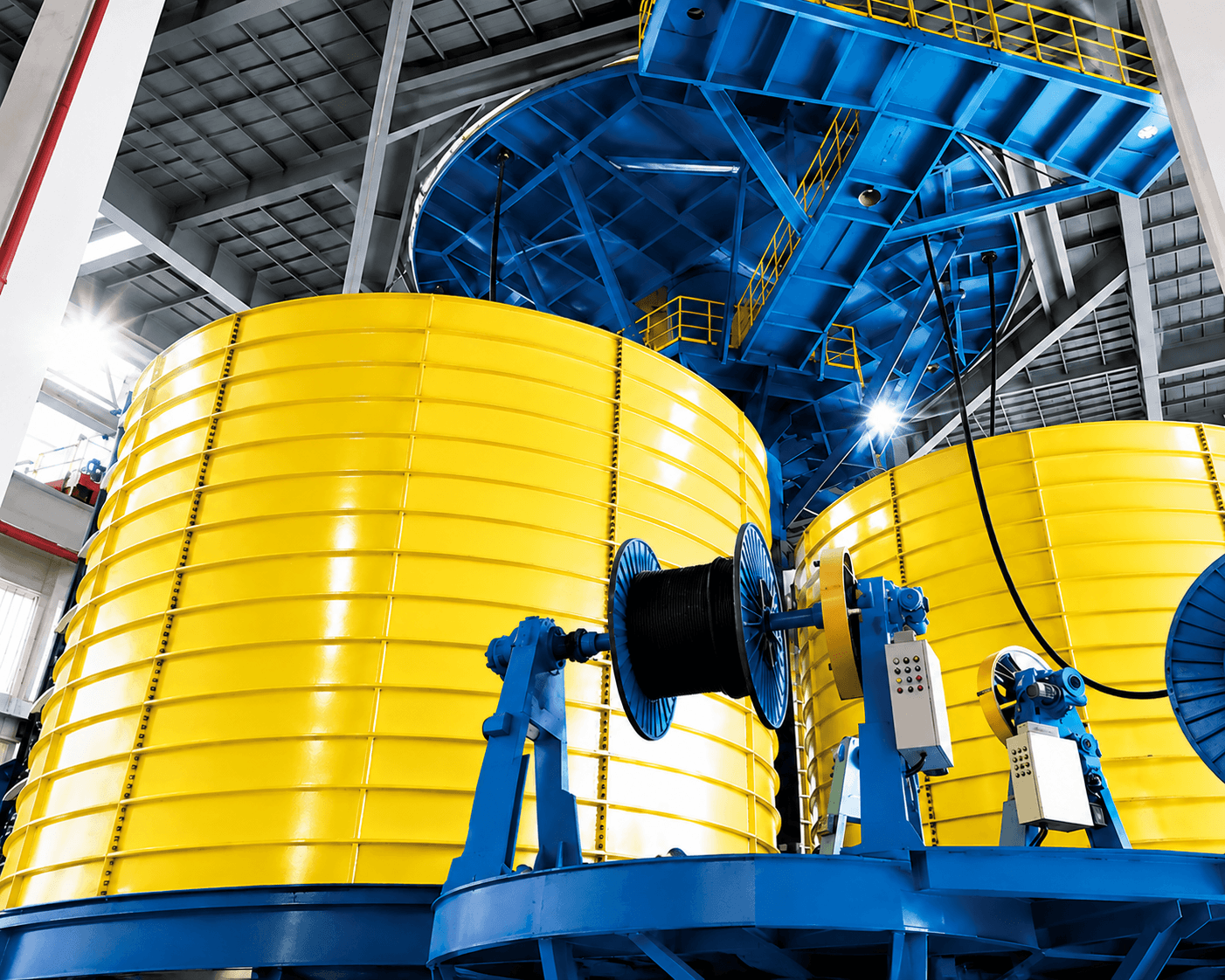

CYL Vertical Laying-Up & Steel Wire Armoring Machine

Heavy-duty vertical cabling equipment developed for large-diameter medium-, high- and extra-high-voltage cables, including submarine cable laying-up, land cable assembly and steel-wire armoring.
Get a Quote
Company Profile

Overview

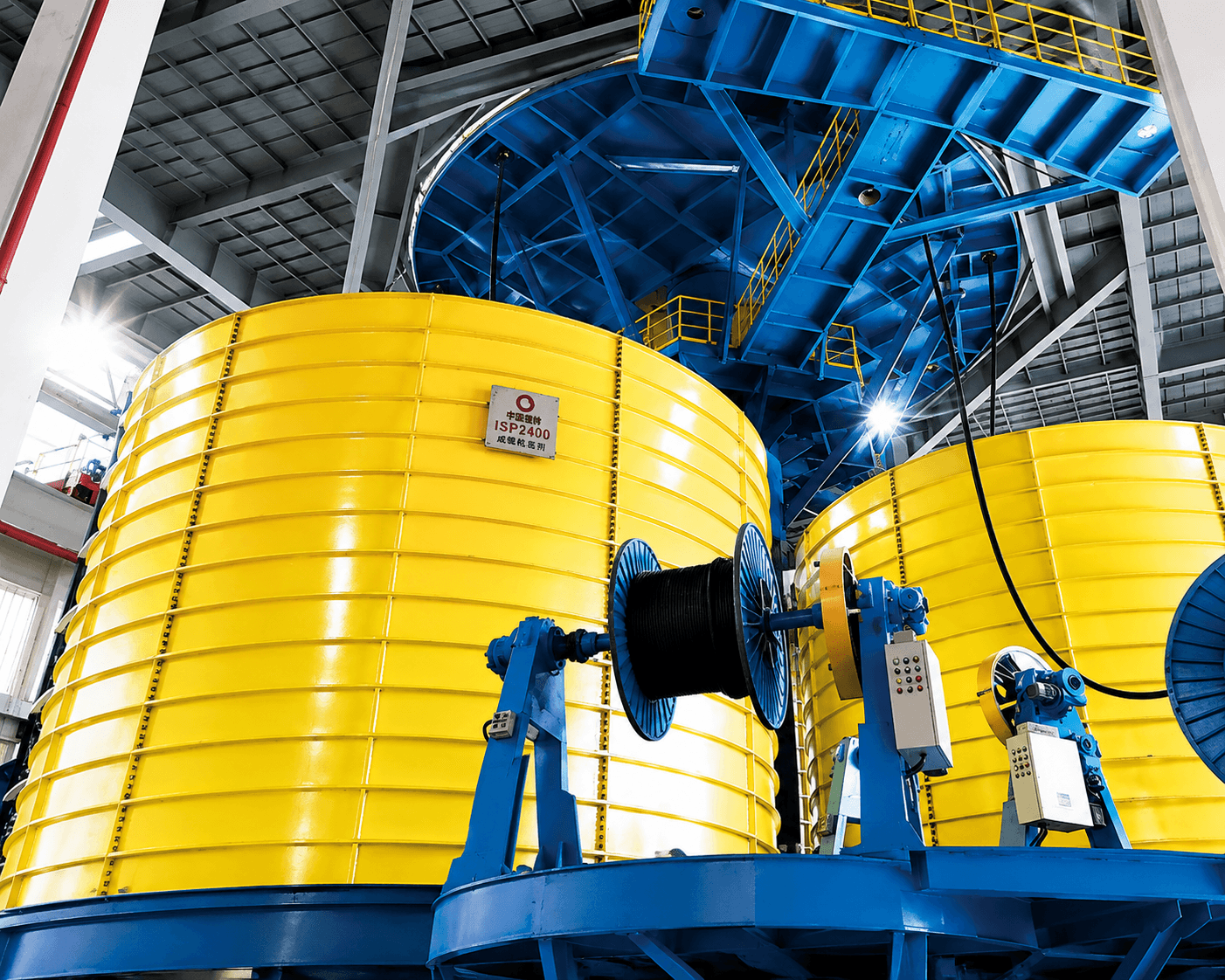

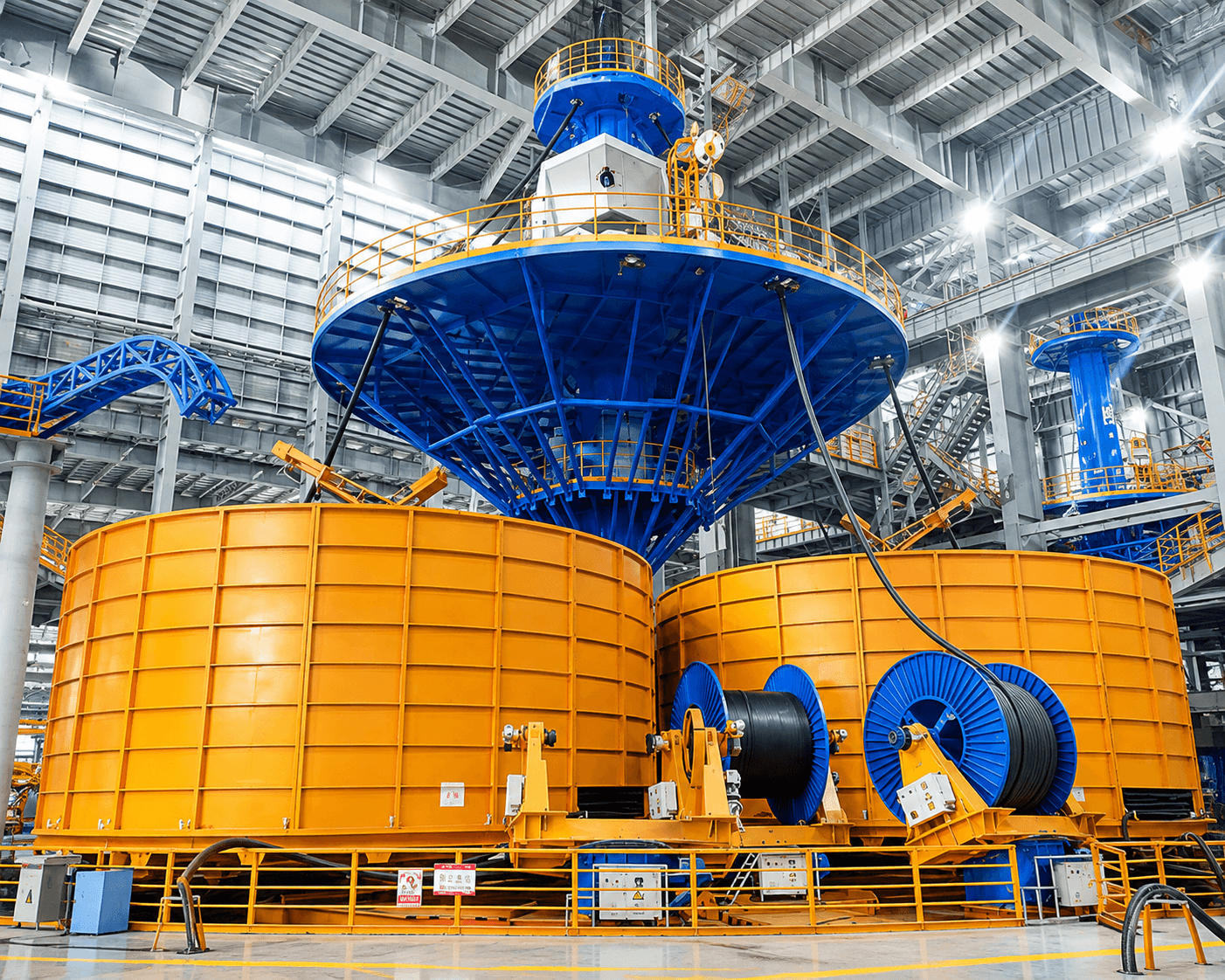

The CYL Vertical Laying-Up Machine is developed for cable projects where cable diameter, reel size and operating load are too large for conventional horizontal cabling equipment. Its vertical arrangement is especially suitable for assembling large power cable cores while providing the structural capacity required for heavy rotating components and high-value cable products.

The equipment can be configured for medium-voltage, high-voltage and extra-high-voltage cable production, including submarine and land cable structures. In addition to core laying-up, the line can also be arranged for steel-wire armoring, allowing manufacturers to cover more than one heavy-duty cabling process with the same equipment platform.

Product Advantages

Built for Large Cable Structures

The vertical configuration is designed for oversized cable cores, large rotating reels and heavy production loads typically found in HV, EHV and submarine cable manufacturing.

Multiple Process Capability

The same equipment concept can support submarine cable laying-up, land power cable laying-up and steel-wire armoring according to the selected process arrangement.

High Loading Capacity

Available configurations provide maximum loading weights up to 450 T, making the machine suitable for large reels and demanding cable projects.

Stable Heavy-Cable Handling

The vertical structure provides a practical way to control and organize very large cable components where weight, bending behavior and reel dimensions are critical.

Project-Based Configuration

Rotating body size, reel combination, operating speed and loading capacity can be matched to different cable constructions and factory requirements.

Core Equipment

Laying-Up Reel / Rotating Body Configuration Max. Speed (rpm) Single Wire Diameter (mm) Max. Loading Weight (T)
3×Ø7000（转盘）/3×Ø2000 3 Ø25-Ø114 200
3×Ø8000（转盘）/3×Ø3150 3 Ø25-Ø114 300
3×Ø10000（转盘）/3×Ø3150 3 Ø25-Ø114 450
9×Ø3150/3×Ø3150 5 Ø10-Ø60 20
3×Ø4000/3×Ø2000 3 Ø10-Ø100 50

Applications

  • Medium-voltage power cable laying-up

  • High-voltage power cable laying-up

  • Extra-high-voltage power cable laying-up

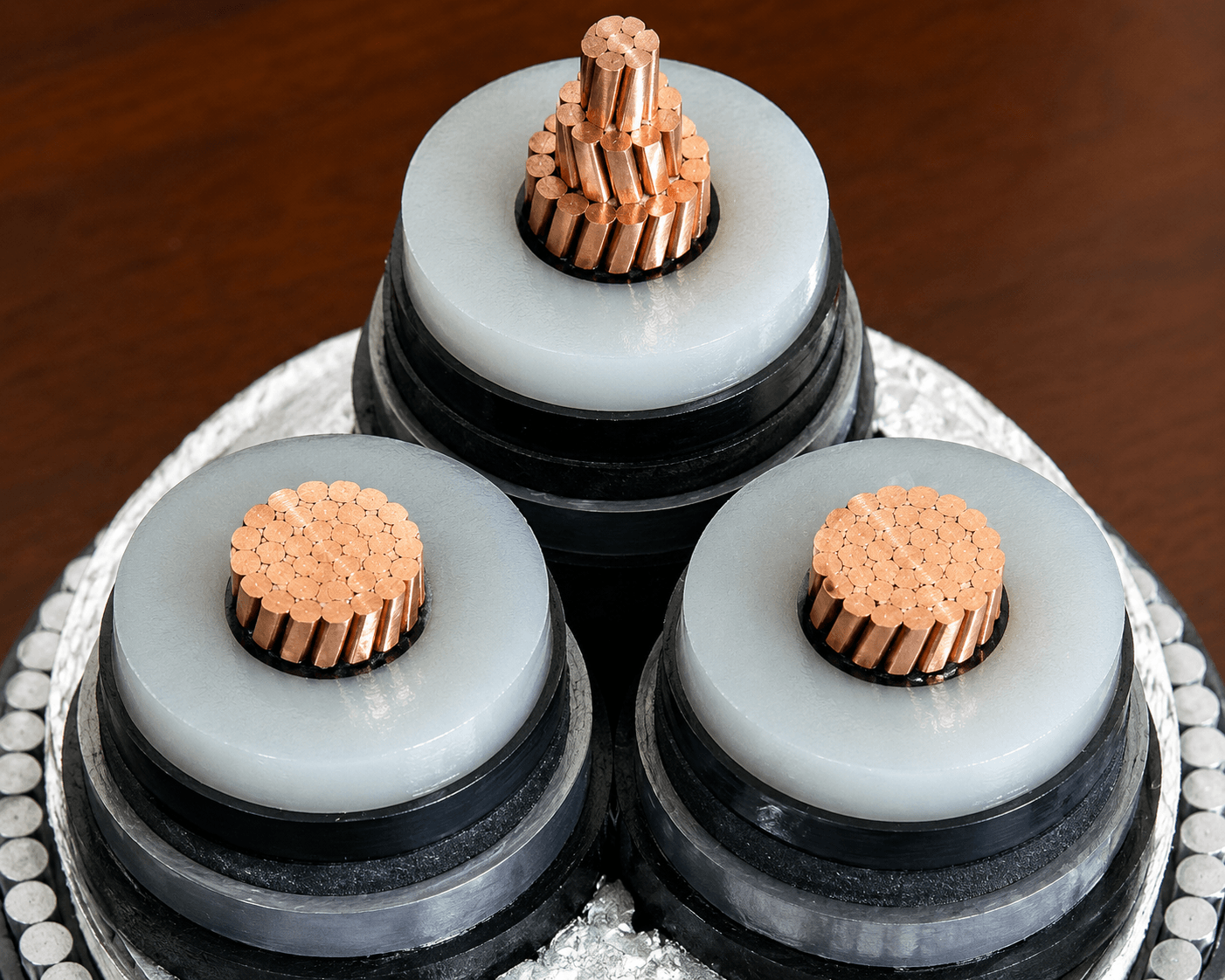

  • Submarine power cable core assembly

  • Large-diameter land cable laying-up

  • Steel-wire armoring of power and submarine cables

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What types of cable can the CYL machine produce?
The machine is intended for large power cable applications, including medium-voltage, high-voltage and extra-high-voltage cables, as well as submarine and large land cable constructions.
Can the same machine be used for steel-wire armoring?
Yes. The CYL series can be configured for steel-wire armoring in addition to cable core laying-up, depending on the selected production arrangement.
Why use a vertical laying-up structure for large cables?
For very large and heavy cable products, a vertical arrangement provides a practical way to manage oversized rotating components and cable loads while maintaining an organized production path.
What is the maximum loading capacity shown in the technical data?
The largest listed configuration has a maximum loading weight of 450 T.
Can the machine be customized for different reel sizes?
Yes. The product data includes several rotating body and reel combinations. Project configuration can be matched to the required reel diameter, cable structure and factory layout.
What information is needed before selecting a CYL model?
Please provide the cable type, finished cable diameter, laying-up or armoring structure, reel dimensions, target production speed, required loading weight and available installation space.
