Oxygen-free Copper Rod Upcast Machine

Oxygen-Free Copper Rod Upcast Machine

The Oxygen-Free Copper Rod Upcast Machine is a complete copper rod continuous casting solution for producing high-purity oxygen-free copper rod by the upward casting process. It is designed for copper rod manufacturers, wire and cable factories, electrical material producers and non-ferrous metal processing plants that require stable rod quality, smooth surface and low oxygen content. Based on the SL28-QW4B-S-B-8/20 configuration, the Oxygen Free Copper Rod Upcasting Line adopts a power-frequency induction combined furnace, 28-head servo upcasting machine, synchronous guiding and automatic coiling system to produce 8 mm, 12.5 mm, 16 mm and 20 mm OFC copper rods.
Get a Quote

Features

Continuous Upward Casting Process

The machine casts oxygen-free copper rod directly from molten copper through crystallizers, supporting continuous production and reducing intermediate handling.

28-Head Upcasting Configuration

The SL28 configuration can upcast 28 rods at the same time. Four servo systems drive the traction mechanism, with each servo system pulling seven rods.

QW4B Combined Induction Furnace

The furnace includes two melting chambers, one transition chamber and one holding chamber. This structure supports stable molten copper supply and steady holding temperature.

Low Oxygen Content and Good Conductivity

The documented finished rod target includes oxygen content <=10 ppm and soft-state resistivity <=0.01724 ohm mm2/m, supporting high-conductivity electrical applications.

Servo Traction with PLC Control

Upcasting speed, pitch, reverse amount and pause time can be set through PLC and touch screen. This helps match different rod diameters and casting conditions.

Applications

  • Wire and Cable Manufacturing

  • Electrical Material Production

  • Electronic Copper Material

  • Copper Wire Drawing Plants

  • Non-Ferrous Metal Processing Plants

  • OFC Copper Rod Production Projects

What the Line Includes

The system is delivered as a sequence of coordinated stations, each built and tested in-house before shipment.

  • Vertical Shaft Furnace

    Continuous gas-fired smelting of cathode or clean scrap, with staged combustion for low oxygen pickup.

  • Holding Furnace

    Temperature stabilization and buffer capacity between smelting and casting, 5–20 T depending on line size.

  • Casting Machine

    Wheel-and-belt continuous casting producing a uniform trapezoidal bar for the rolling mill.

  • Two-Roll Rolling Mill

    10–14 stands reducing the cast bar to Ø 8 mm rod with tight dimensional tolerance.

  • Cooling & Pickling Line

    In-line cooling, surface reduction and wax coating for oxidation protection.

  • Automatic Coiler

    Basket coiling of finished rod, typically 4–5 T coils, ready for strapping and dispatch.

  • Electrical & Automation

    PLC line control, drives, HMI and data logging — one control architecture for the whole line.

  • Dust Removal (Optional)

    Baghouse dust collection sized to the furnace, engineered to local emission standards.

Standard Configurations

Reference sizes cover most projects. Intermediate capacities and custom configurations are engineered on request.

Equipment Function
QW4B Power-Frequency Induction Combined Furnace Melts cathode copper, transfers molten copper through transition chamber and stabilizes molten copper in the holding chamber.
Induction Furnace Electrical Control System Controls voltage regulation, compensation, balancing, power monitoring, furnace temperature and safety alarms.

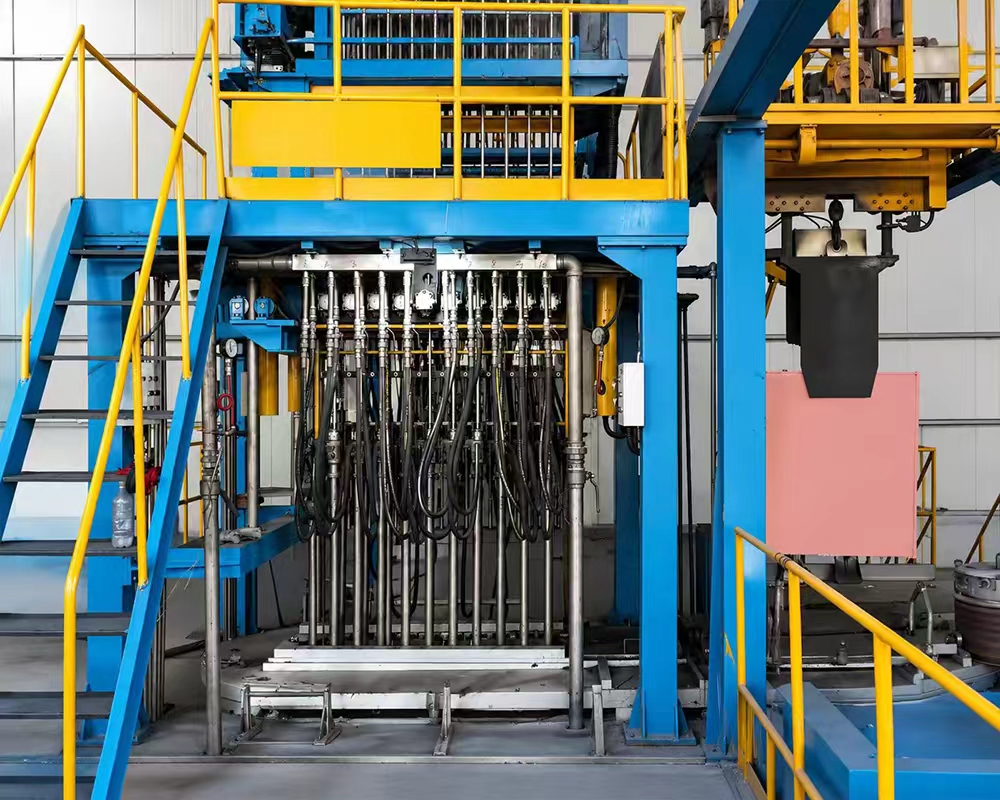

28-Head Upcasting Machine Uses servo traction, crystallizers, lifting mechanism and liquid level tracking to continuously cast copper rods upward.
Graphite Crystallizers Rapidly cool and crystallize molten copper into solid rods. Each crystallizer can be replaced separately.
Guide Wheel Frame Guides upcast copper rods smoothly toward each coiler and prevents interference between rods.
Intermediate Support Frame Supports rods between guide frame and limiting device, keeping rod paths stable and separated.
14-Head Synchronous Limiting Devices Coordinate upcasting speed and coiling speed through tension swing arms and signal feedback.

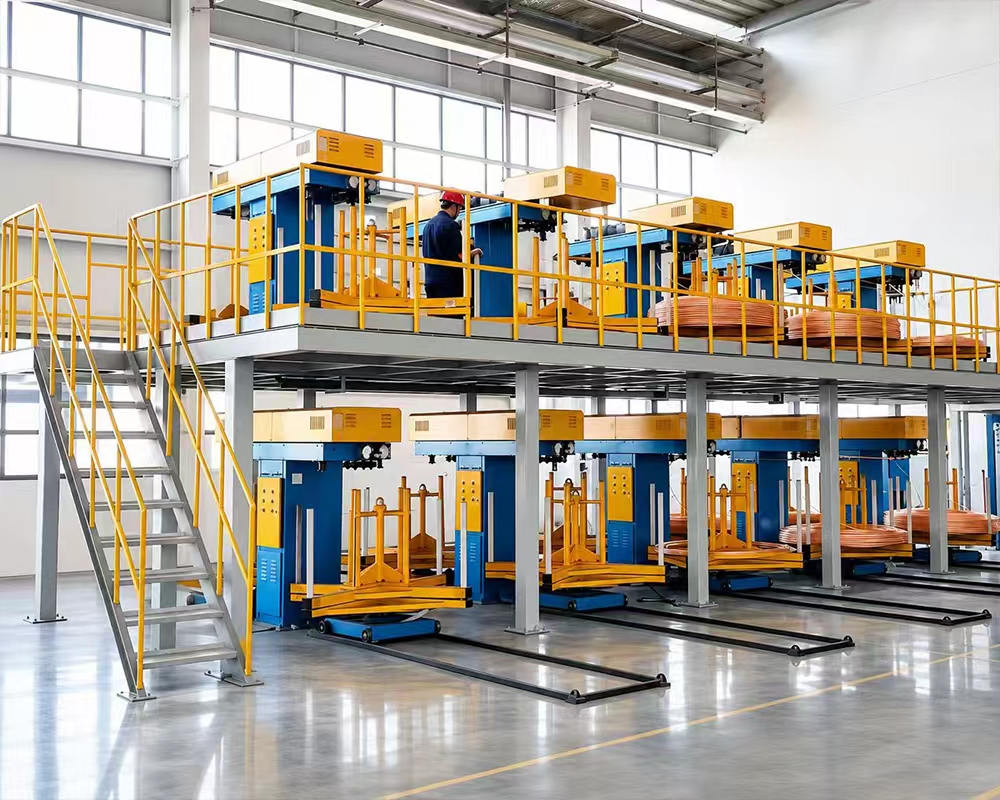

Double-Head Coilers Fourteen coilers collect up to 28 rod coils with PLC-controlled automatic tracking and laying.

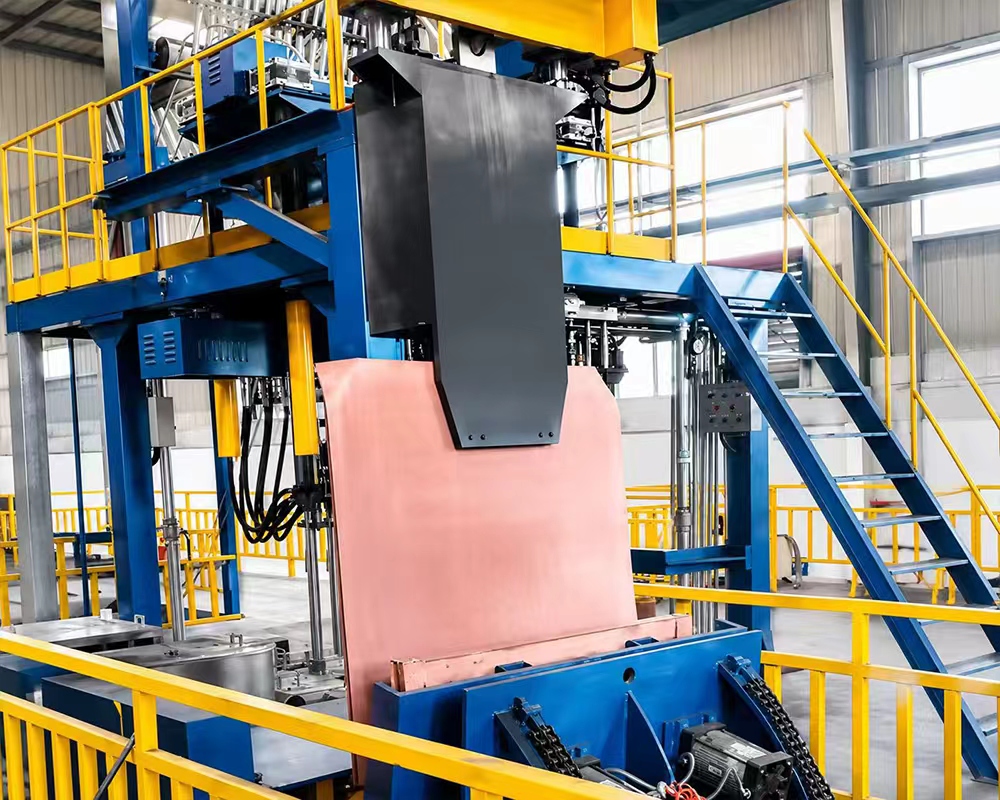

Cantilever Electric Feeding Devices Lift and feed whole cathode copper plates into melting chambers from both sides of the furnace.
Cooling Water System Supplies independent cooling water circuits for crystallizers, induction coils and water jackets with pressure, temperature and flow monitoring.
Temperature Measurement System Measures molten copper temperature, cooling water inlet/outlet temperature and return-water flow for process monitoring.
Electrical Control System Integrates furnace control, upcasting control, coiler control and cooling water control into a coordinated production system.

Reference values — final parameters are confirmed during process design based on raw material, site conditions and product standard. Replace with your confirmed datasheet values before publishing.

Lines Built, Shipped and
Commissioned.

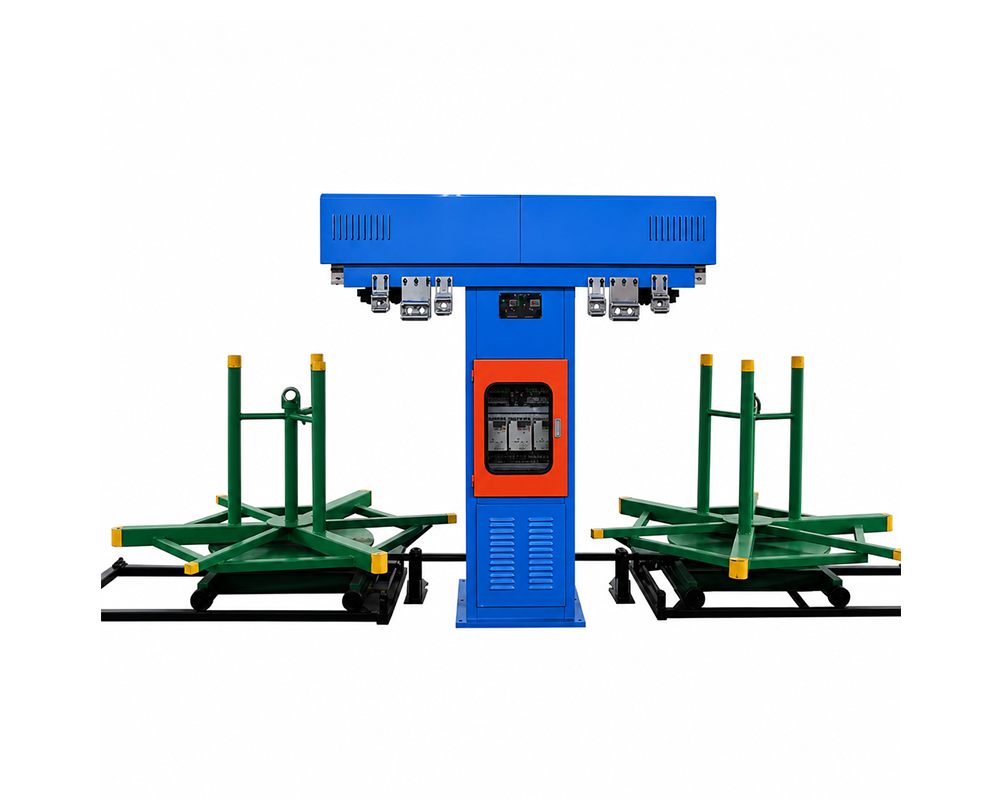

Double-head take-up machine

Actual photos

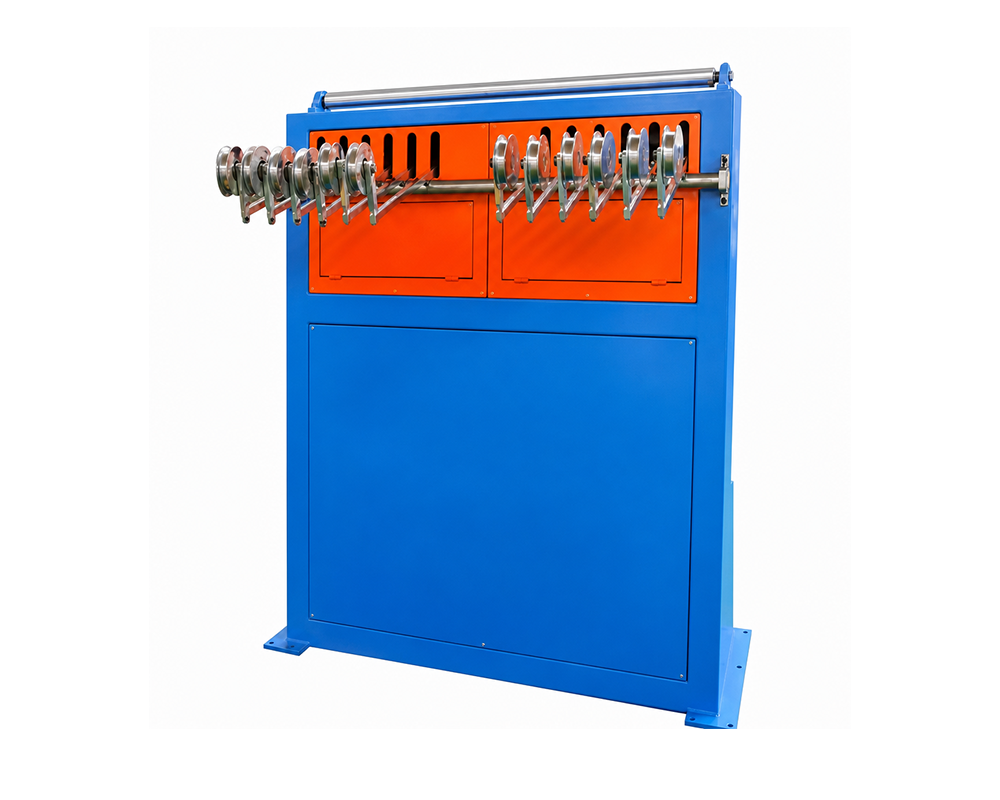

Take-up synchronization device

Actual photos

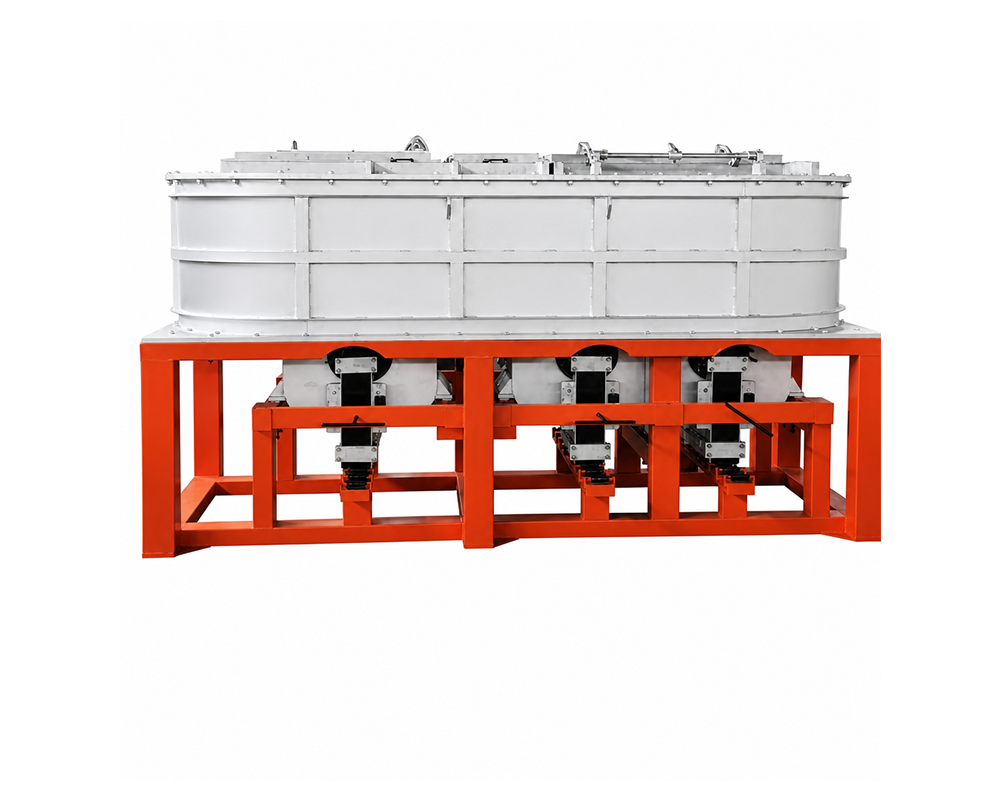

Mains-frequency channel-type induction combined furnace

Actual photos

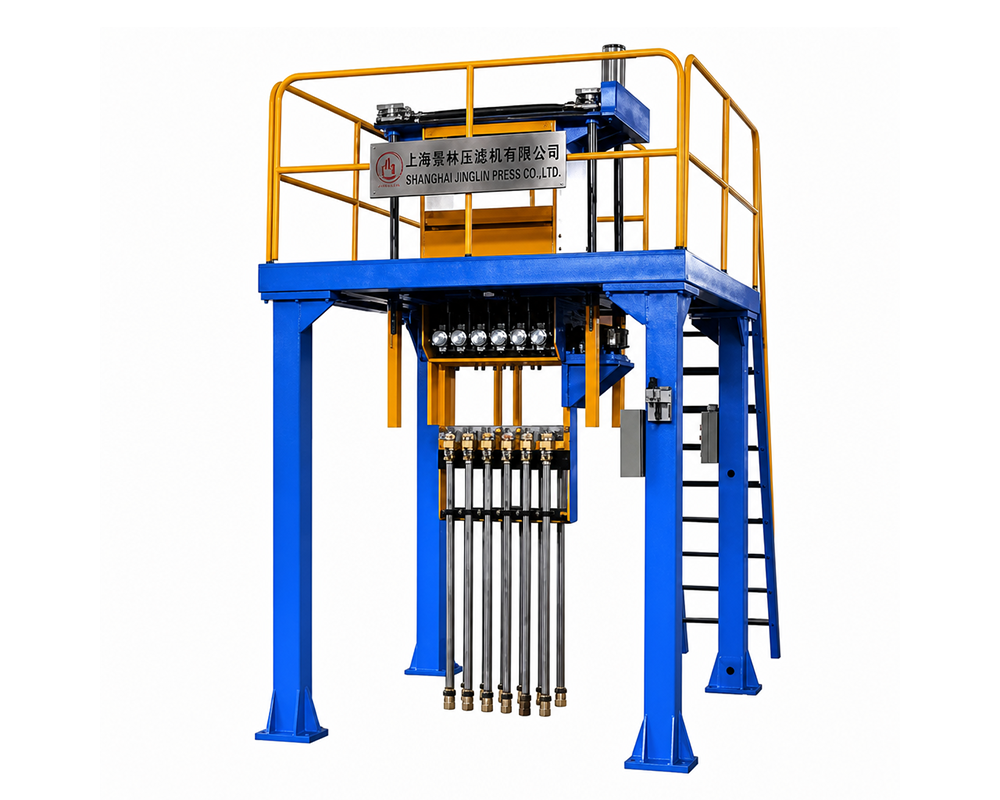

Upward continuous casting machine

Actual photos

Start a project

Tell Us Your Target. We'll Design the Line.

Share your capacity, raw material and site conditions — we'll come back with a process route, equipment selection and a turnkey path to production.

Email Our Team View a Project
Address

No.310–311 National Road, Quanshan District, Xuzhou City, China

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is an Oxygen-Free Copper Rod Upcast Machine?
It is a copper rod continuous casting machine that melts cathode copper and casts copper rods upward through crystallizers. The process is widely used for producing oxygen-free copper rod with low oxygen content and good electrical conductivity.
What production capacity can this copper rod upcast line provide?
The provided SL28-QW4B-S-B-8/20 configuration is designed for 15,000 tons per year, with daily production capacity up to about 45.5 tons and melting rate >=2.0 t/h. Capacity can be customized for different projects.
What copper rod diameters can be produced?
The documented configuration supports 8 mm, 12.5 mm, 16 mm and 20 mm oxygen-free copper rods. Other specifications can be discussed according to crystallizer design and production requirements.
What raw material is required?
High-quality No. 1 standard cathode copper is recommended. The material should be clean and meet GB/T 467-2010 Cu-CATH-2 requirements or equivalent international quality standards.
What oxygen content can the finished rod achieve?
The technical target in the supplied file is oxygen content <=10 ppm. Actual results depend on raw material quality, charcoal reduction, furnace operation, temperature control and production management.
Does the line include the furnace and coiling system?
Yes. The complete solution can include the induction combined furnace, upcasting machine, crystallizers, guide system, synchronous limiting device, double-head coilers, cooling water system, temperature measurement and electrical control system.
Can the machine be customized for our factory?
Yes. Capacity, rod diameter, number of heads, voltage, frequency, layout, coiler configuration, cooling system and electrical brands can be customized according to your project conditions.
