CPD Planetary Cabling Machine with Caterpillar Haul-Off

Heavy-duty cabling equipment for medium-, high- and extra-high-voltage power cables, segmented conductors, steel wire/tape armoring and copper wire shielding.
Get a Quote
Company Profile

Overview

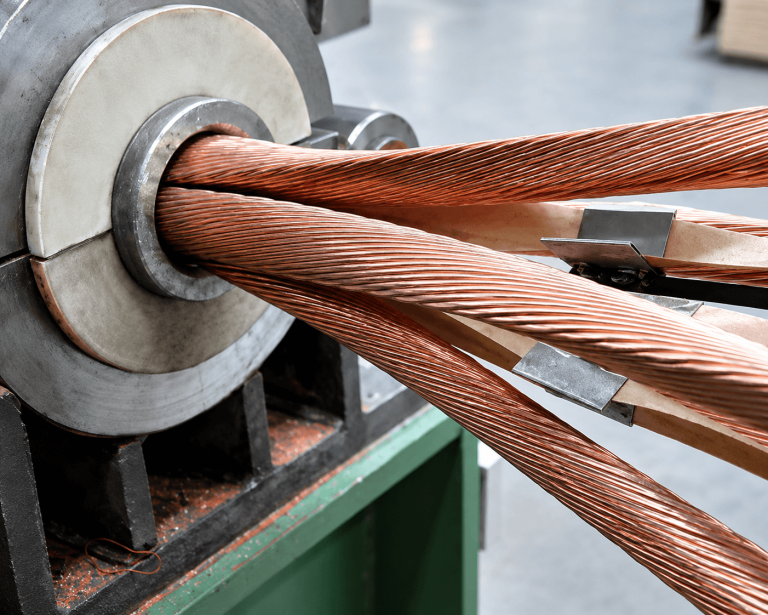

The CPD Planetary Cabling Machine with Caterpillar Haul-Off is designed for heavy-duty cable manufacturing where large reel capacity, stable rotation and controlled cable traction are required. It is suitable for cabling medium- and high-voltage power cables, as well as for producing segmented conductors used in high-voltage and extra-high-voltage cable systems.

In addition to conductor and cable-core cabling, the machine can also be configured for steel wire armoring, steel tape armoring and copper wire shielding. Multiple take-up and pay-off reel sizes, two rotating-structure options and high reel load capacities allow the line to be matched to different cable diameters, constructions and factory layouts.

Product Advantages

Heavy-Duty Cable Processing

Designed for large cable constructions and production lines requiring high reel load capacity and stable mechanical performance.

Two Rotating Structure Options

Fork-type roller-support and cradle-type structures provide flexible configuration choices for different production requirements.

Large Reel Capacity

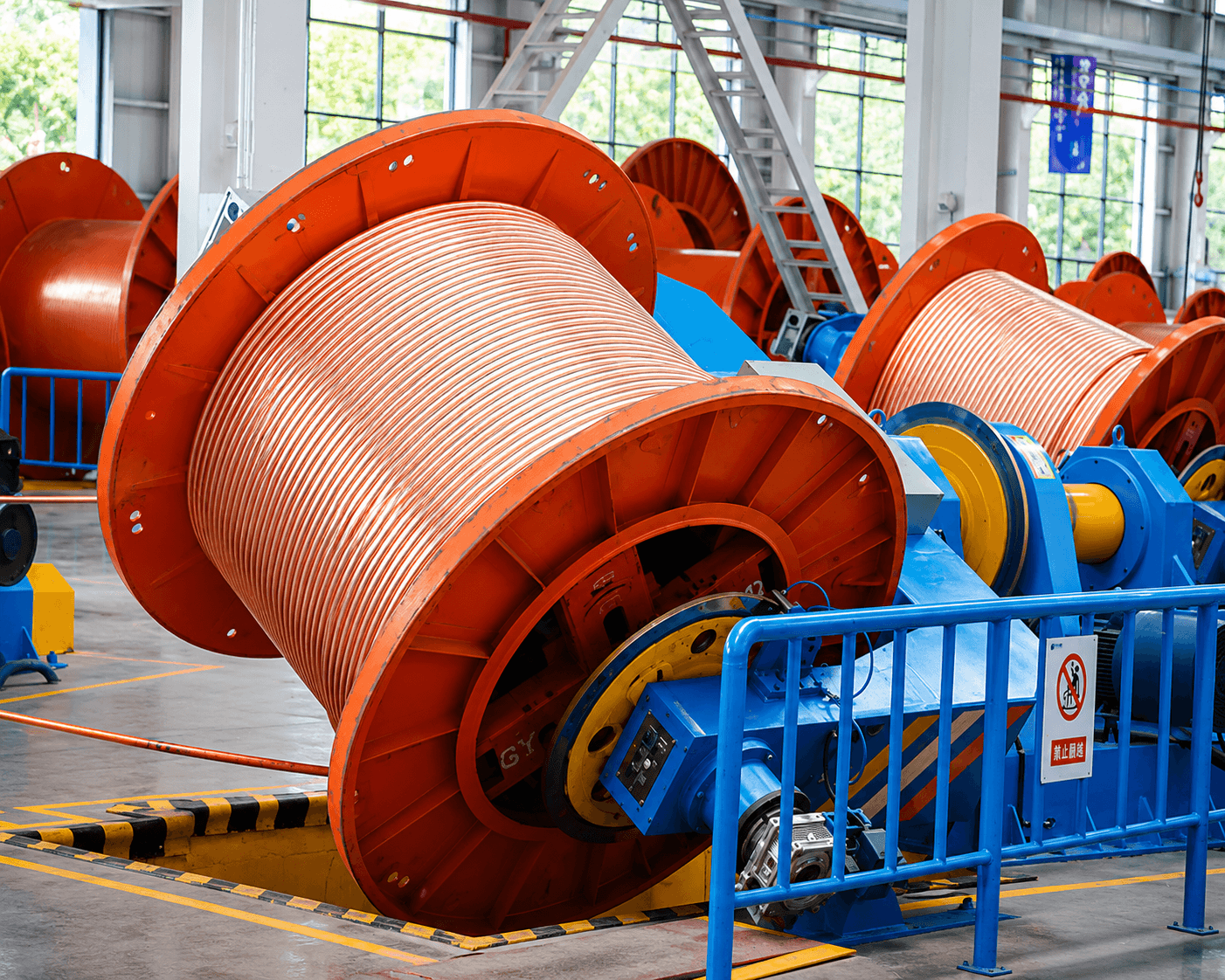

Take-up reel sizes extend from Ø2000 to Ø4200 mm, with pay-off reel sizes up to Ø2500 mm.

High Reel Load Capacity

Take-up reel load capacity reaches up to 30 T, supporting long production runs and heavy cable products.

Multi-Process Capability

Suitable not only for cable-core cabling but also for segmented conductor cabling, steel wire/tape armoring and copper wire shielding.

Core Equipment

Reel Size (mm) Max. Speed (rpm) Single Core Diameter (mm) Reel Load (T) Production Line L × W (m)
Take-Up Reel Pay-Off Reel Fork-Type Roller Support Cradle-Type Structure Take-Up Reel Pay-Off Reel
Ø2000 Ø1250 80 100 Ø100 10 3 60×9
Ø2500 Ø1600 60 70 Ø100 12 5 63×9
Ø3150 Ø2000 40 50 Ø120 20 10 68×10
Ø3500 Ø2500 30 40 Ø120 25 12 70×11
Ø4000 Ø2500 25 30 Ø130 30 12 73×11
Ø4200 Ø2500 25 30 Ø130 30 12 75×11

Applications

  • Medium-voltage power cable cabling

  • High-voltage power cable cabling

  • Extra-high-voltage cable segmented conductor cabling

  • Large-section conductor cabling

  • Steel wire armoring

  • Steel tape armoring

  • Copper wire shielding

  • Heavy-duty cable manufacturing lines

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What cable products is the CPD machine designed for?
It is suitable for medium- and high-voltage power cable cabling and for segmented conductor cabling used in high-voltage and extra-high-voltage cable systems.
Can the machine be used for armoring and shielding?
Yes. The source specification states that the line can also be used for steel wire armoring, steel tape armoring and copper wire shielding.
What take-up reel sizes are available?
The listed take-up reel sizes are Ø2000, Ø2500, Ø3150, Ø3500, Ø4000 and Ø4200 mm.
What is the maximum reel load capacity?
Depending on the configuration, the take-up reel load capacity ranges from 10 T to 30 T, while the pay-off reel load capacity ranges from 3 T to 12 T.
What rotating structures are available?
The technical data lists a fork-type roller-support structure and a cradle-type structure, each with its own maximum rotational speed.
How should the correct CPD configuration be selected?
Selection should be based on cable construction, core diameter, required reel size and load, target rotational speed, armoring or shielding process, and available workshop space.
