JLY Cradle Type Stranding Machine

Reliable stranding equipment for copper wire, aluminum wire and OPGW cable production, designed for stable industrial operation and flexible bobbin configurations.
Get a Quote
Company Profile

Overview

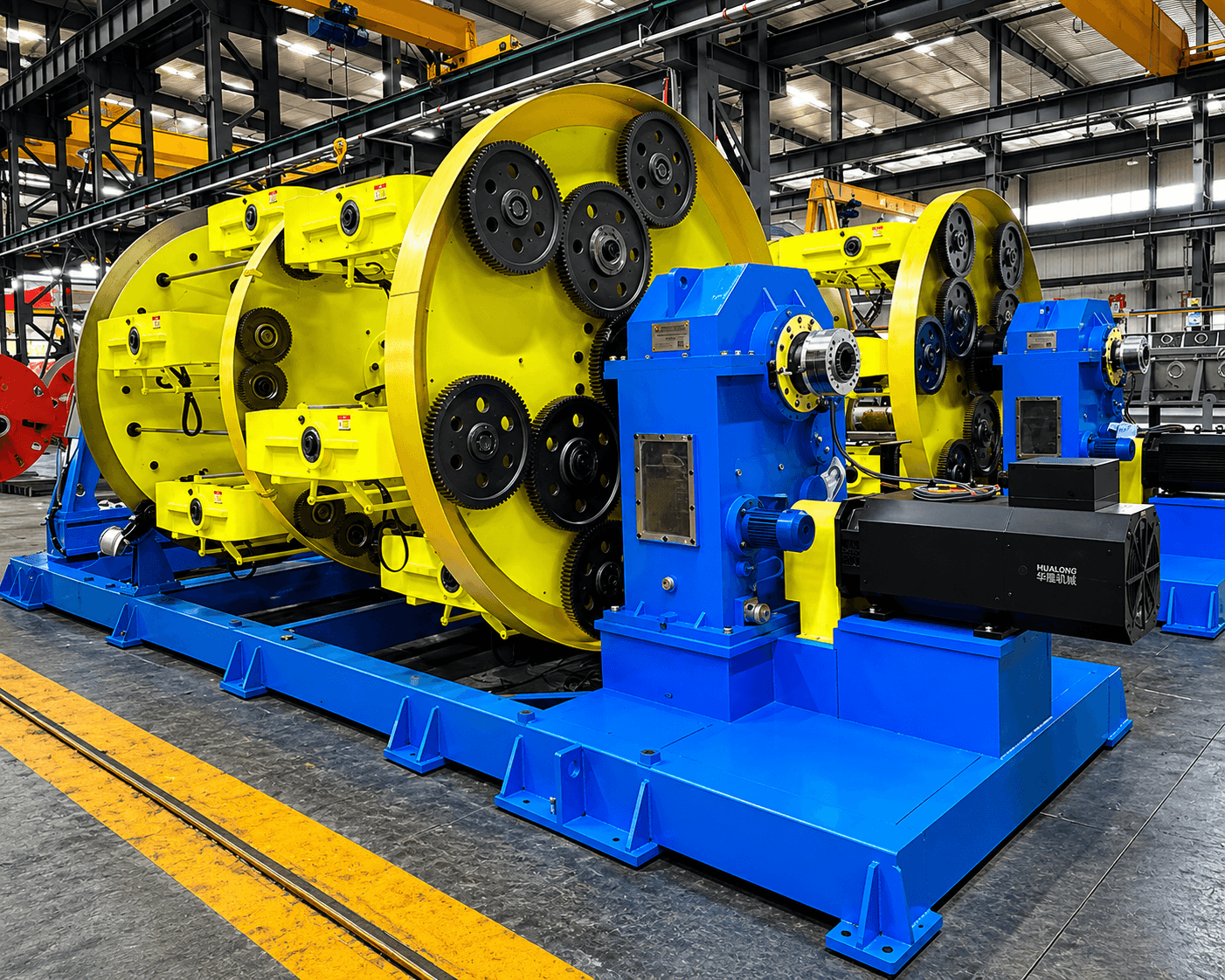

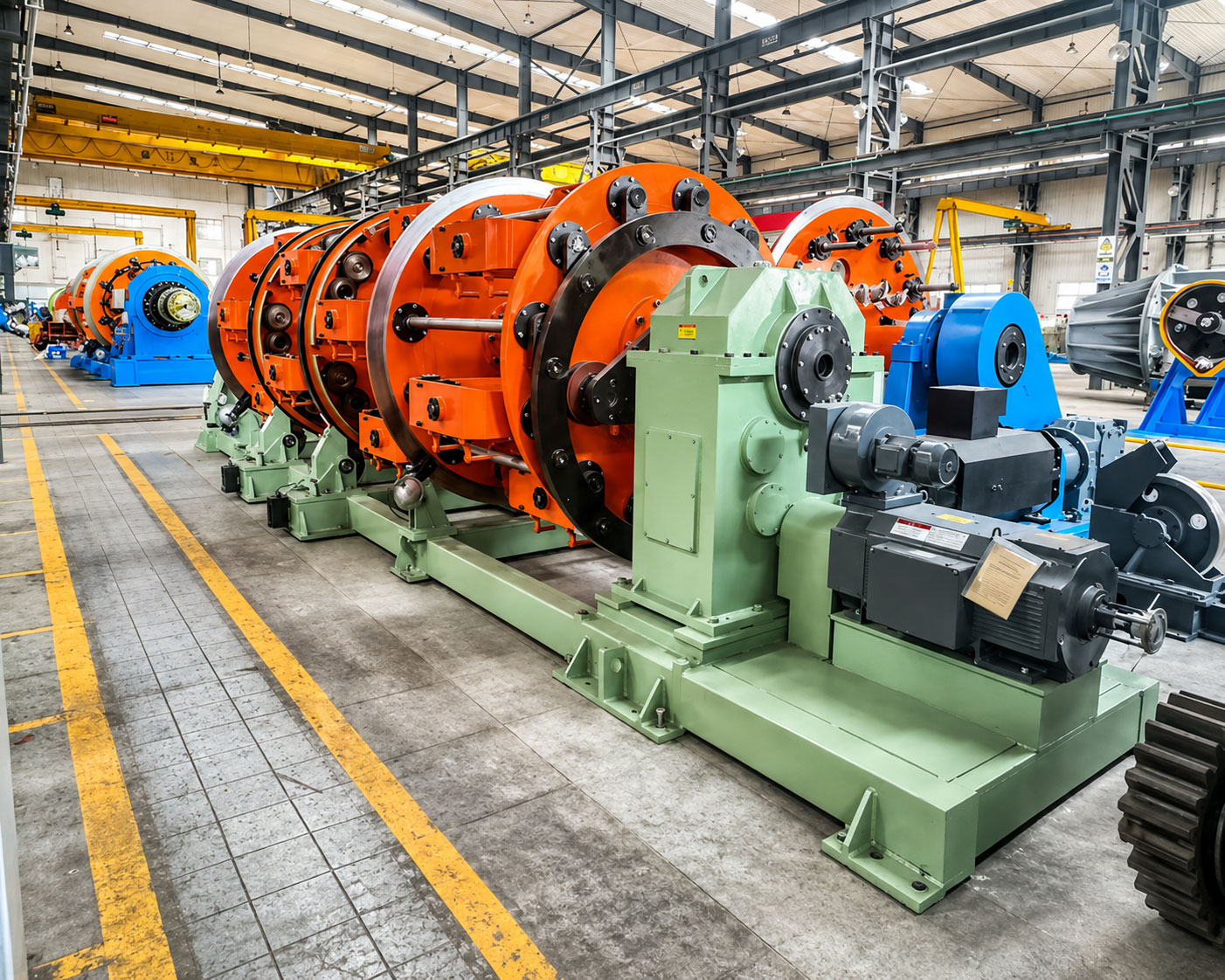

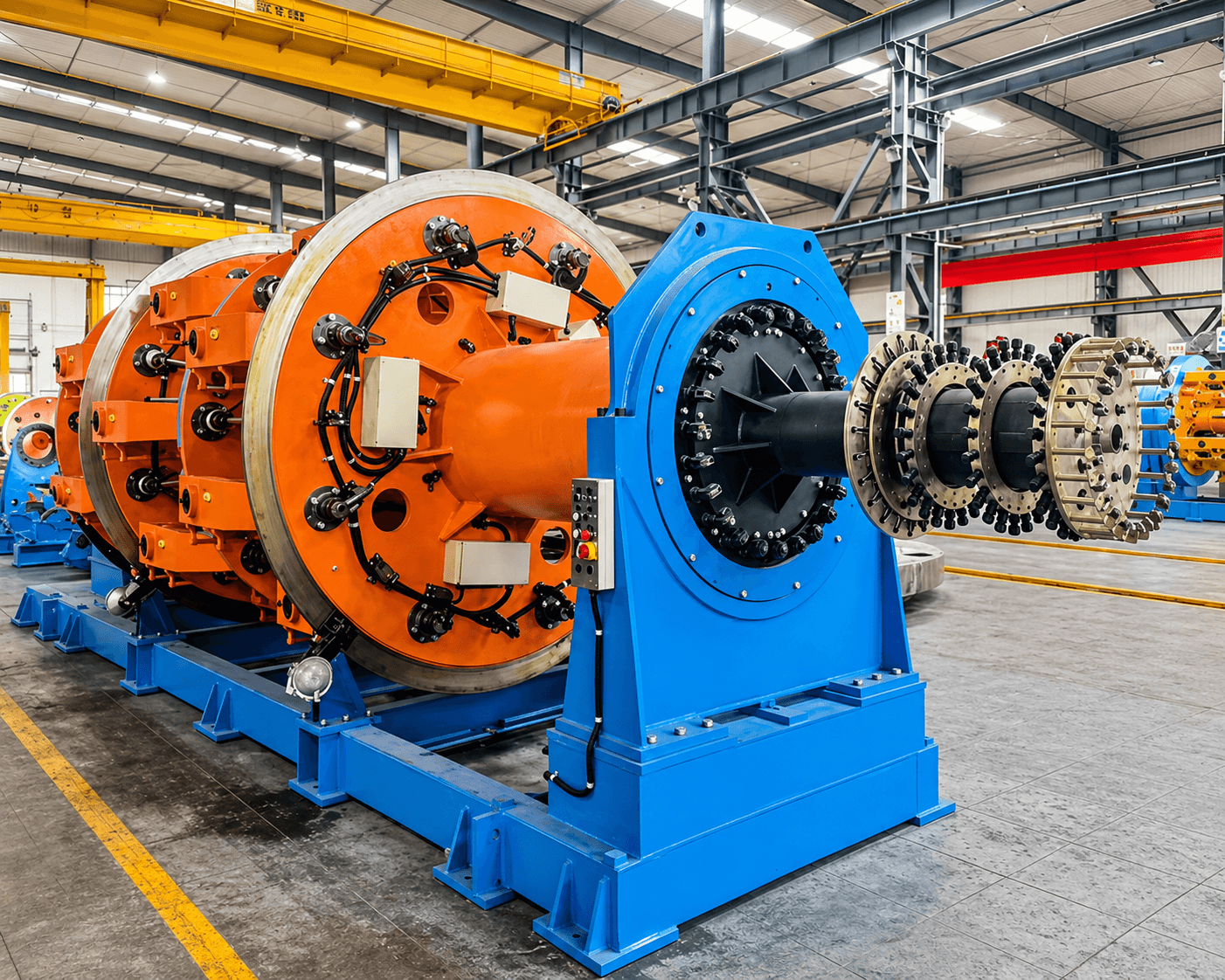

The JLY Cradle Type Stranding Machine is designed for the stranding of copper wire, aluminum wire and OPGW (Optical Ground Wire). Its cradle-type rotating structure is suitable for cable and conductor manufacturers that require stable strand formation, flexible bobbin arrangements and dependable continuous production.

The machine can be configured with different bobbin sizes and strand positions to suit a range of conductor constructions. Depending on the selected configuration, the JLY series supports both roller-supported and non-roller-supported operating arrangements, giving manufacturers additional flexibility when matching equipment to product specifications and production speed requirements.

Product Advantages

Copper, Aluminum & OPGW Compatibility

Designed for copper wire and aluminum wire stranding as well as OPGW cable stranding applications.

Flexible Bobbin Configurations

Supports multiple bobbin arrangements, including 6B, 8B, 12B, 16B, 18B and 24B configurations according to model and operating arrangement.

Wide Wire Diameter Capability

Accommodates aluminum, copper, aluminum-clad steel and optical fiber units within the specified diameter ranges.

Stable Cradle-Type Stranding

The cradle arrangement supports orderly wire payout and stable strand formation for continuous conductor production.

Multiple Operating Arrangements

Technical configurations are available with supporting rollers and without supporting rollers to match different production requirements.

Core Equipment

Bobbin Size (mm) Max. Speed (rpm) Single Wire Diameter (mm)
With Supporting Rollers Without Supporting Rollers
6B 8B 12B 16B 18B 24B 6B 12B 18B 24B Aluminum Copper Aluminum-Clad Steel Optical Fiber Unit
Ø400 126 112 98 86 150 140 122 108 Ø1.5-Ø4.0 Ø1.2-Ø4.0 Ø1.2-Ø3.5 Ø2.5-Ø4.0
Ø500 105 93 82 71 136 123 110 97 Ø1.5-Ø5.0 Ø1.3-Ø5.0 Ø1.3-Ø3.5 Ø3.0-Ø5.0
Ø630 85 80 74 70 65 57 110 96 84 74 Ø1.8-Ø6.0 Ø1.5-Ø6.0 Ø1.5-Ø4.5 Ø3.0-Ø6.0

Applications

  • Copper conductor stranding

  • Aluminum conductor stranding

  • OPGW (Optical Ground Wire) production

  • Aluminum-clad steel wire stranding

  • Optical fiber unit stranding

  • Overhead conductor and cable manufacturing lines

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What materials can the JLY Cradle Type Stranding Machine process?
It is designed for copper wire and aluminum wire stranding and can also be used for OPGW production. The technical table also specifies applicable ranges for aluminum-clad steel wire and optical fiber units.
Can the machine be used for OPGW cable production?
Yes. OPGW stranding is one of the primary applications stated for the JLY cradle type stranding machine.
What bobbin sizes are available?
The listed machine specifications include Ø400, Ø500 and Ø630 bobbin sizes.
What stranding configurations are supported?
Depending on bobbin size and operating arrangement, the machine supports configurations including 6B, 8B, 12B, 16B, 18B and 24B.
What is the maximum applicable aluminum wire diameter?
According to the listed technical data, the aluminum wire diameter range reaches up to Ø6.0 mm for the Ø630 configuration.
What is the maximum applicable copper wire diameter?
According to the table, the copper wire diameter range reaches up to Ø6.0 mm for the Ø630 configuration.
