Individual Motor Type Intermediate Drawing Machine

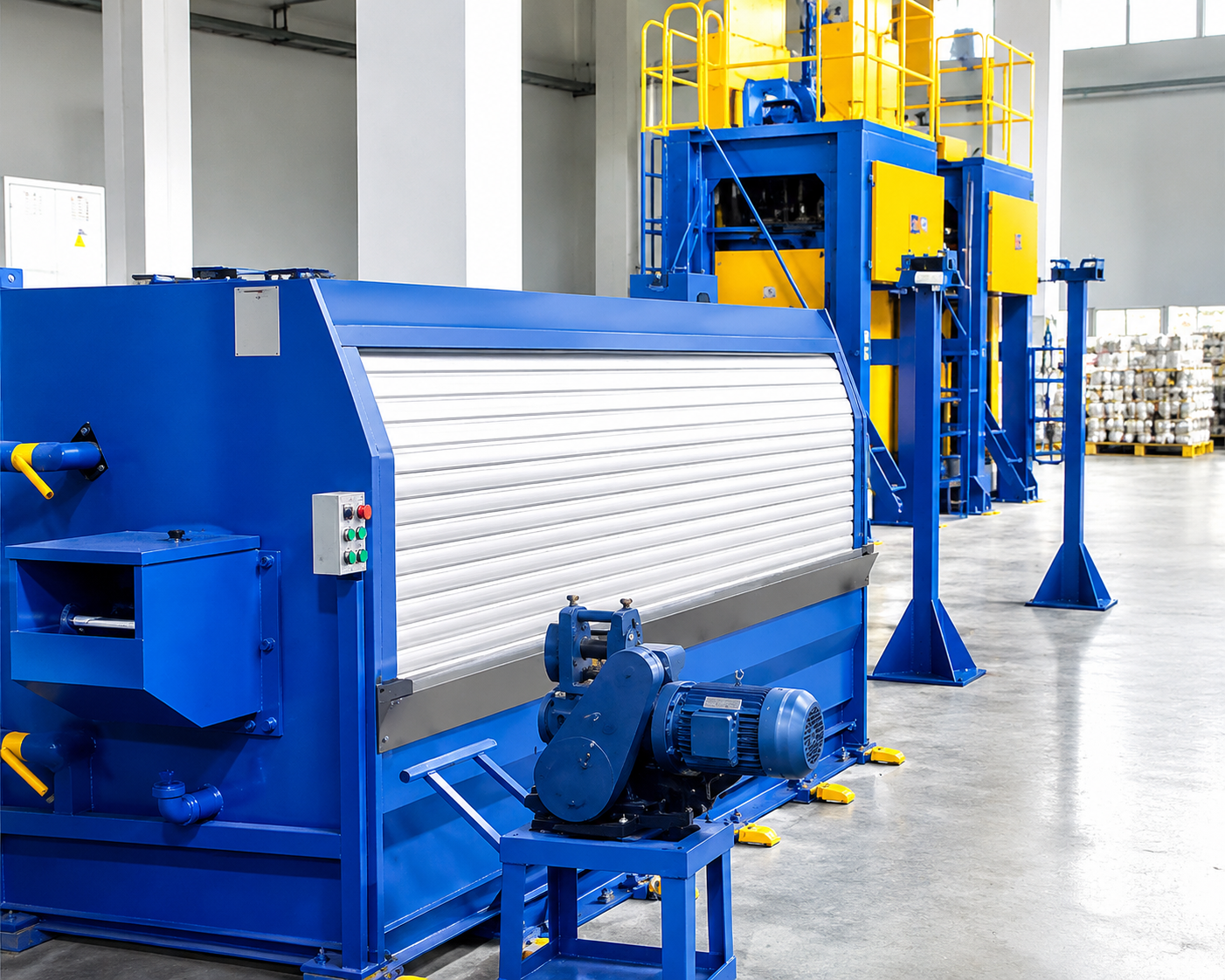

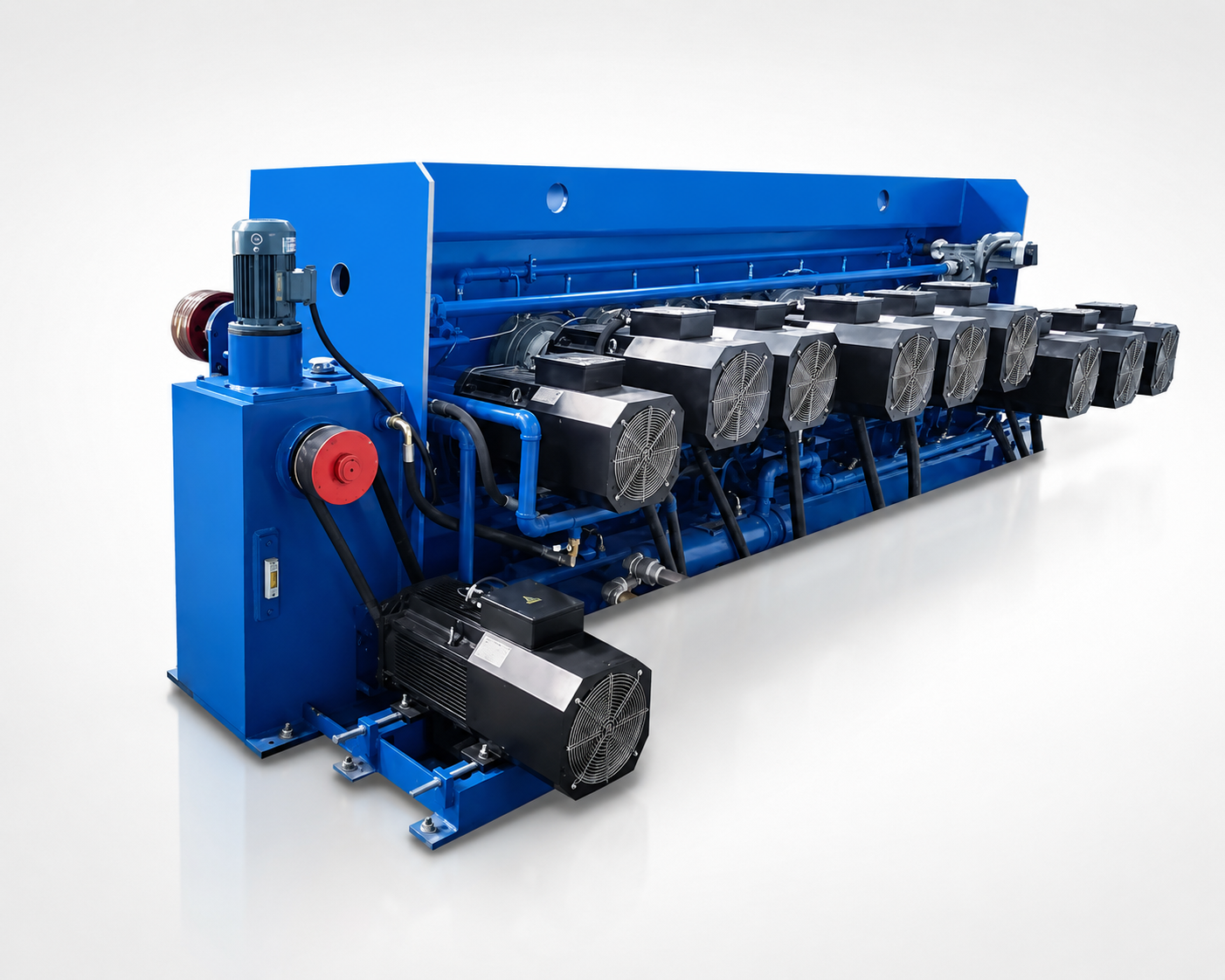

The Individual Motor Type Intermediate Drawing Machine is designed for medium-size copper wire drawing in 2-wire and 4-wire configurations. With individual motor drive, adjustable mechanical elongation, optional online annealing and maximum mechanical speed up to 1800 m/min, it is suitable for cable factories and conductor manufacturers that require stable intermediate wire drawing performance.
Rod diameter
Ø 8 mm
Line capacity
10 – 35 T/H
Smelting
Vertical shaft furnace
Rolling
Two-roll, 10–14 stands
Raw material
Cathode / clean scrap
Standard
EU-grade selection
Get a Quote
Technical Data

Features

Individual Motor Drive

The individual motor drive structure improves speed control and drawing stability, supporting flexible process adjustment for different wire sizes.

2-Wire and 4-Wire Configurations

PM200-13-2 and PM200-13-4 models support different production capacities and wire output requirements.

High-Speed Intermediate Drawing

The mechanical speed can reach up to 1800 m/min, helping improve production efficiency in copper wire manufacturing.

Online Annealing Option

ZLT4000-2 and ZLT6000-2 annealers can be selected to support online copper wire annealing and downstream cable production requirements.

Adjustable Mechanical Elongation

The mechanical elongation is adjustable, allowing factories to adapt the drawing process according to wire size and production conditions.

Applications

  • Copper intermediate wire drawing

  • Copper conductor production

  • Power cable manufacturing

  • Building wire production

  • Electrical wire processing

  • Wire and cable factories

  • Copper wire annealing production lines

  • Non-ferrous metal wire processing plants

What the Line Includes

The system is delivered as coordinated functional units, fully assembled and factory‑tested before shipment.

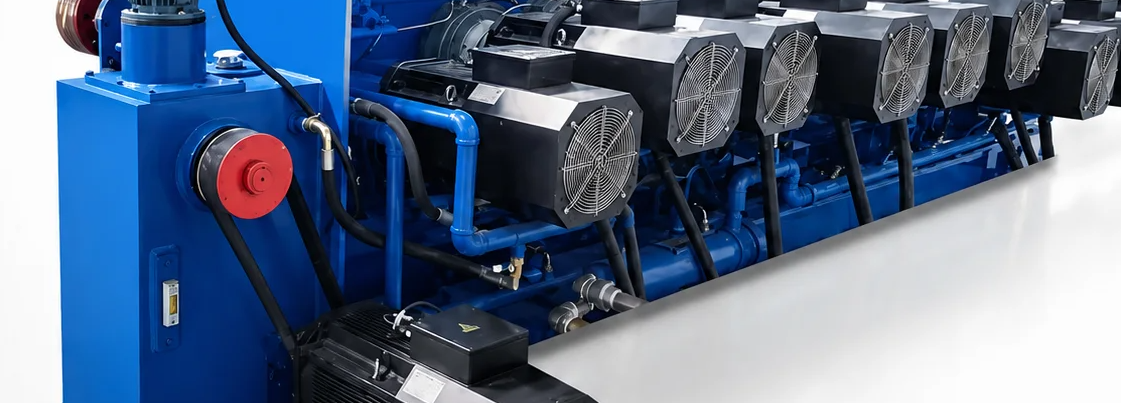

  • Individual Motor Drive System

    1. Independent servo‑motor for each drawing capstan, accurate speed regulation, stable drawing tension and flexible process tuning for different wire gauges. 2.

  • 2‑Wire & 4‑Wire Production Versions

    PM200‑13‑2 (2‑wire) and PM200‑13‑4 (4‑wire) models, flexible selection for different capacity and output‑wire‑size demands.

  • High‑Speed Drawing Performance

    Max mechanical speed reaches 1800 m/min, greatly boosts throughput for large‑volume copper wire manufacturing.

  • Optional Online Annealing Unit

    Match ZLT series contact DC annealer for inline softening; delivers qualified soft copper wire ready for subsequent cabling processes.

  • Ozone Denitrification System

    Ozone generator & injection unit for NOx oxidation, no ammonia required.

  • Adjustable Mechanical Elongation

    Tunable mechanical elongation, optimizes drawing craft to fit various copper wire specifications and working conditions.

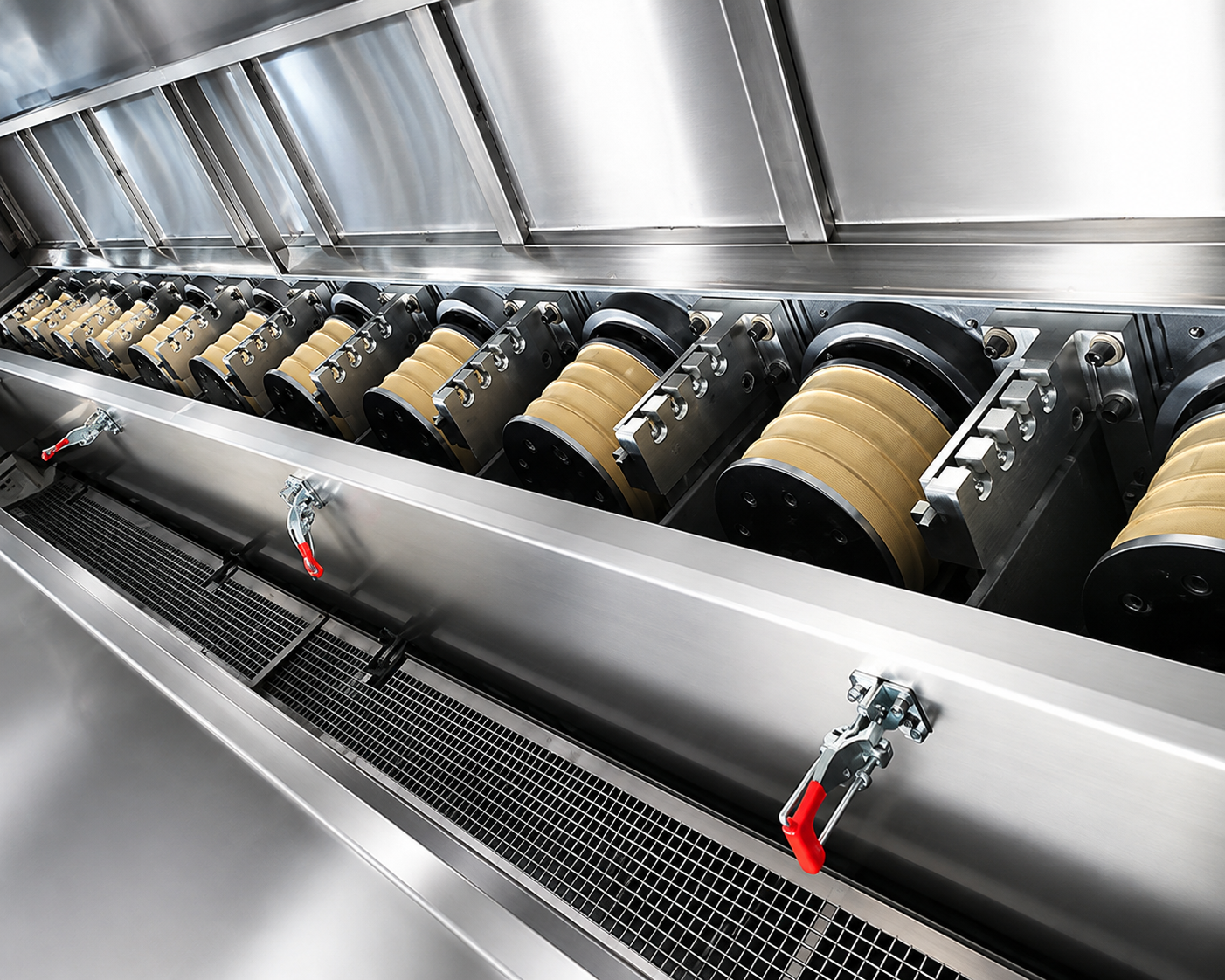

  • 13‑Die Compact Drawing Platform

    200 mm drawing cone & 250 mm capstan wheel with 13‑die layout, compact structure for reliable intermediate wire reduction.

  • Stable Finished‑Wire Quality

    Consistent wire dimension and smooth surface, well‑prepared for fine‑drawing, bunching, stranding and cable‑making downstream.

Standard Configurations

Reference sizes cover most projects. Intermediate capacities and custom configurations are engineered on request.

Individual Motor Type Intermediate Drawing Machine

Item

PM200-13-2

PM200-13-4

Inlet Diameter

Max 2 x 3.0 mm

Max 4 x 3.0 mm

Outlet Diameter

2 x 0.80-1.60 mm

4 x 0.60-1.60 mm

Mechanical Speed

Max 1800 m/min

Max 1800 m/min

Max. Number of Dies

13

13

Drawing Cone Diameter

200 mm

200 mm

Capstan Wheel Diameter

250 mm

250 mm

Mechanical Elongation

Adjustable

Adjustable

Servo Motor Power

15-22 kW

15-22 kW

Annealer for Individual Motor Type Intermediate Drawing Machine

Item ZLT4000-2 ZLT6000-2
Production Range 2 x 0.80-1.60 mm 4 x 0.60-1.60 mm
Mechanical Speed Max 1800 m/min Max 1800 m/min
Annealing Current Max 4000 DC Max 6000 DC
Annealing Voltage Max 55V DC Max 55V DC
Annealing Capacity 260 KVA 385 KVA

Copper Wire Production Speed Reference

Cu Wire Size TY Hard Wire TR Soft Wire Elongation
0.60 mm 1500 m/min 1500 m/min 20-25%
0.80 mm 1500 m/min 1500 m/min 20-25%
1.0 mm 1400 m/min 1300 m/min 25-30%
1.20 mm 1200 m/min 1200 m/min 25-30%
1.60 mm 1000 m/min 900 m/min 25-30%

Reference values — final parameters are confirmed during process design based on raw material, site conditions and product standard. Replace with your confirmed datasheet values before publishing.
