Complete production line solutions from aluminum rod to finished power cable.
A cable project is more than a group of machines. We match the process, equipment, line speed, factory layout and automation around your final cable product.
From aluminum rod to finished cable, we configure each production stage according to conductor size, cable structure, target output and required automation.
The production route normally starts with aluminum rod drawing, followed by conductor stranding and cable extrusion. Depending on the product, cabling, screening, armoring, outer sheathing and online testing can be added.
We match the line to low-voltage or high-voltage cable requirements, available workshop space, local power supply and future expansion plans.
Production Line
Production Line
Production Line
| Equipment | Role in the Solution |
|---|---|
| Aluminum Rod Breakdown Machine | Reduces aluminum rod to the required wire diameter. |

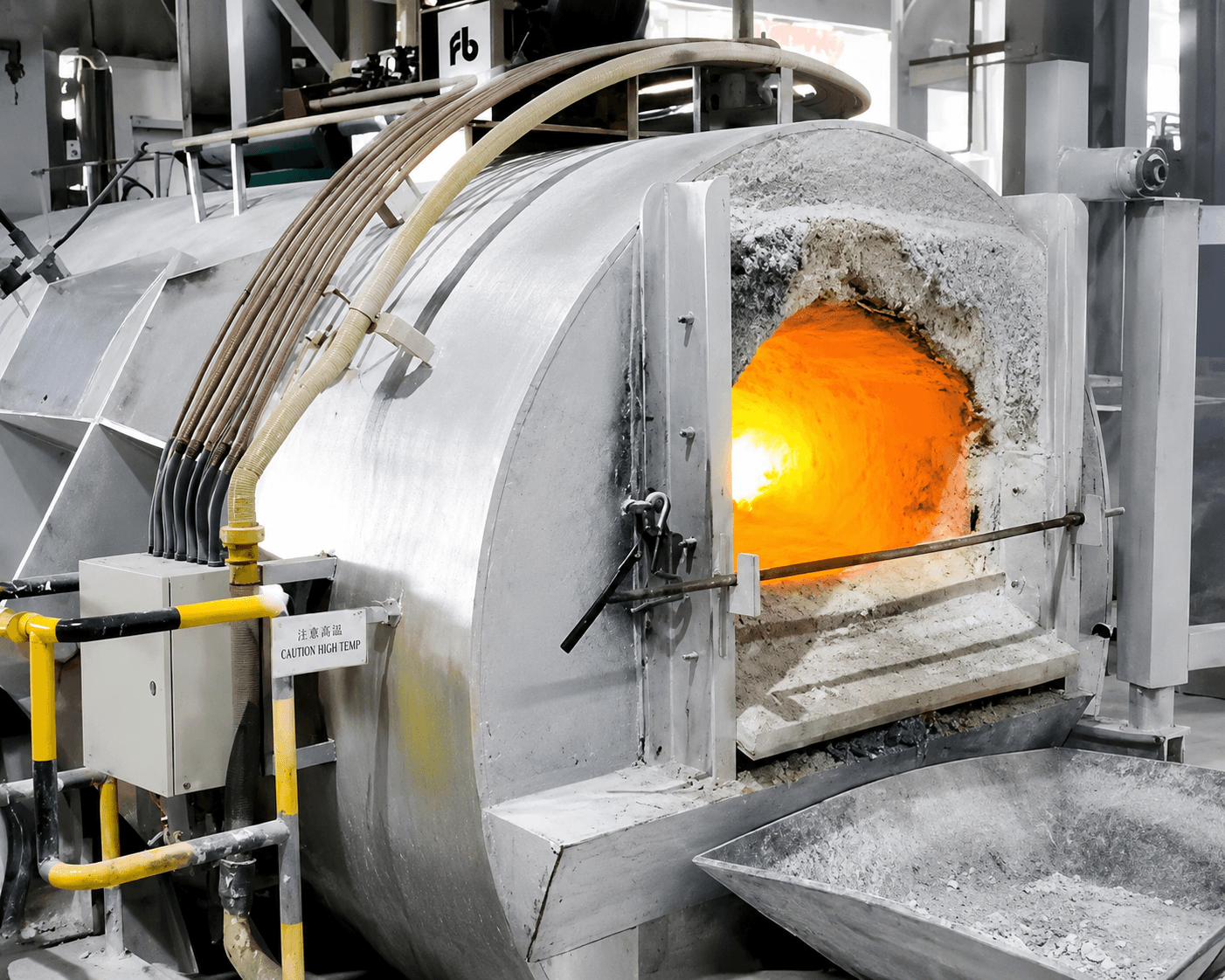

| Wire Drawing / Annealing System | Supports wire sizing and, when required, conductor softening. |
| Pay-off & Take-up System | Provides stable feeding and winding throughout the line. |
| Stranding Machine | Forms aluminum conductors with controlled pitch and structure. |
| Insulation Extrusion Line | Applies insulation with controlled thickness and surface quality. |
| Laying-Up / Cabling Machine | Combines insulated cores into the final cable structure. |
| Armoring / Screening Line | Adds metallic armor or screening when required. |
| Sheathing Extrusion Line | Applies the final outer protective sheath. |
| Online Testing System | Supports spark test, diameter check and electrical inspection. |
| Electrical Control System | Integrates PLC, HMI, speed control and alarms. |
Aluminum Rod → Drawing → Stranding → Insulation → Cabling → Armoring / Screening → Sheathing → Testing → Take-up → Finished Cable
Aluminum rod is drawn to the conductor wire size required by the cable design.
Multiple wires are stranded into a conductor with controlled structure and pitch.
Insulation is extruded and insulated cores are laid up into the required cable construction.
Armor, screening and outer sheath are added when the product design requires them.
Final cable dimensions and electrical performance are checked before winding.

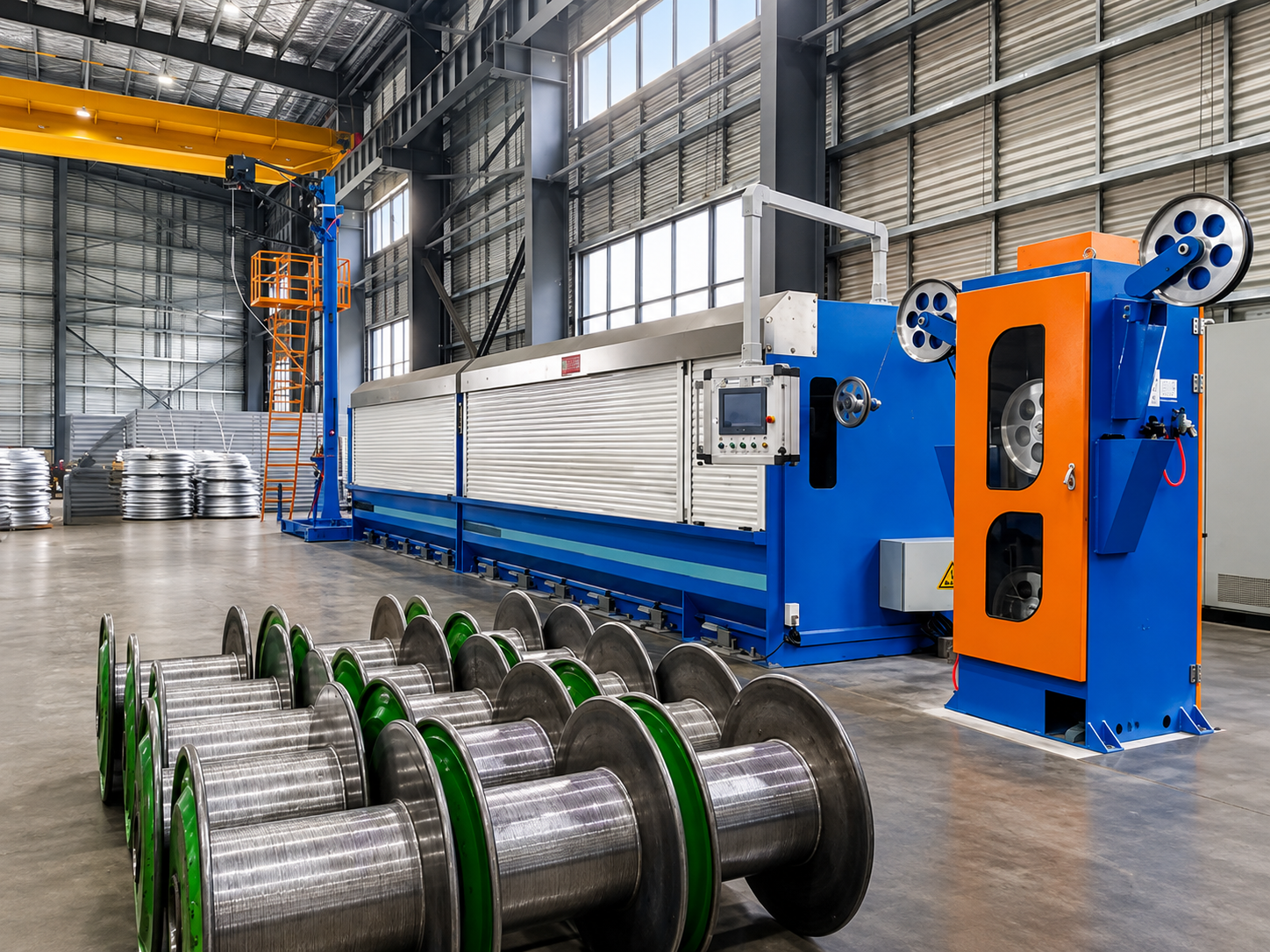

Full‑set aluminum downstream production line for cable & overhead conductor manufacturing. Equipped with rod breakdown, intermediate/fine drawing, online annealing, stranding and take‑up units, fully configured to match your target capacity and finished‑wire specifications.
Need answers for aluminum production‑line, drawing machine configuration or custom‑project concerns? Send us an inquiry to get expert‑tailored suggestions.
Share your capacity, raw material and site conditions — we'll come back with a process route, equipment selection and a turnkey path to production.
