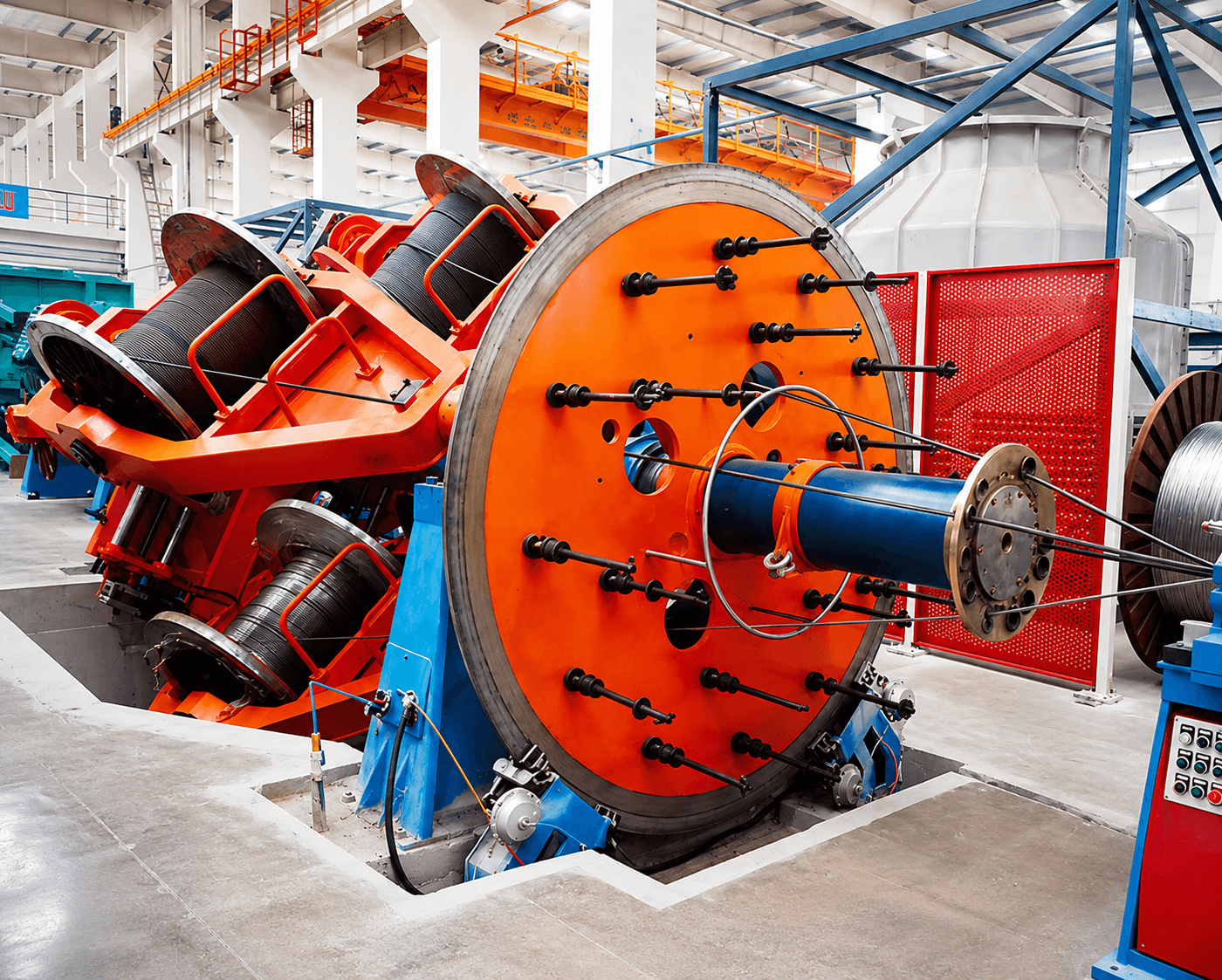

CPY Composite Stranding Cabling Machine with Caterpillar Haul-Off

A heavy-duty cabling system for large cable cores, combining flexible stranding-head configurations with controlled caterpillar haul-off for stable, continuous production.
Get a Quote
Company Profile

Overview

The CPY Composite Stranding Cabling Machine is developed for cable manufacturers that need to assemble multiple insulated cores or cable elements into a stable finished cable structure. Its combined stranding arrangement supports different pay-off formats, while the caterpillar haul-off provides controlled traction for handling larger cable diameters and heavier cable constructions.

The machine can be configured with several pay-off combinations, including 3B, 1+1+3B, 4B and 1+1+4B layouts. Different stranding-head structures are available to match production speed, cable size and process requirements. This makes the CPY series suitable for projects where flexibility, cable stability and line coordination are more important than a single fixed production format.

Product Advantages

Flexible Pay-Off Combinations

Multiple pay-off layouts allow the line to adapt to different cable-core counts and product structures without relying on one fixed configuration.

Controlled Caterpillar Haul-Off

The haul-off section provides steady pulling force to support stable cable movement through the cabling process, especially for larger and heavier products.

Two Stranding-Head Structures

Cradle-type and fork-type support-roller structures are available, giving manufacturers more flexibility when balancing speed, mechanical load and product requirements.

Wide Cable Diameter Capability

The listed configurations cover single-wire/cable diameters from Ø5 to Ø50 mm, depending on the selected model.

Heavy Reel Handling

Take-up reel load capacities reach up to 20 T, supporting large cable reels and longer continuous production runs.

Core Equipment

Bobbin Size (mm) Max. Pay-Off Speed (rpm) Max. Stranding Head Speed (rpm) Single Wire Diameter (mm) Bobbin Load (T) Production Line L × W (m)
Take-Up Pay-Off 3B (1+3B) 1+1+3B 4B (1+4B) 1+1+4B Cradle Structure Fork-Type Support Roller Take-Up Pay-Off
Ø1250 Ø800 70 70 60 60 150 120 Ø5~Ø15 2 0.8 33×4
Ø1600 Ø1000 60 60 50 50 120 100 Ø10~Ø20 3 1.5 34×5
Ø2000 Ø1250 40 40 35 35 100 80 Ø10~Ø25 5 2 38×6
Ø2500 Ø1600 30 30 25 25 70 60 Ø10~Ø35 8 3 43×7
Ø3150 Ø2000 21 21 16 16 50 40 Ø15~Ø40 12 5 52×9
Ø3500 Ø2000 21 21 16 16 40 30 Ø15~Ø40 15 5 53×9
Ø4000 Ø2500 12 12 10 10 30 25 Ø15~Ø50 20 8 60×11

Applications

  • Multi-core power cable laying-up

  • Large-diameter cable core assembly

  • Control and industrial cable production

  • Armored cable pre-cabling processes

  • Heavy cable production lines requiring controlled traction

  • Customized cable constructions with multiple pay-off groups

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is the CPY Composite Stranding Cabling Machine mainly used for?
It is used to lay up multiple cable cores or cable elements into a combined cable structure while the caterpillar haul-off controls the cable through the line.
Which pay-off configurations are available?
The source data includes 3B (1+3B), 1+1+3B, 4B (1+4B) and 1+1+4B arrangements, allowing the line to be matched to different cable constructions.
What is the largest listed cable diameter?
The largest listed single-wire/cable diameter range reaches Ø15~Ø50 mm on the Ø4000 take-up configuration.
What is the maximum take-up reel load?
The largest listed take-up reel load is 20 T.
Why is a caterpillar haul-off used on this type of cabling line?
A caterpillar haul-off provides controlled traction over a longer contact area, which is useful for moving larger cable products smoothly through the cabling process.
How should I select the correct CPY model?
Selection should be based on cable structure, number of cores, cable diameter, reel dimensions, required line speed, reel load and available production space.
