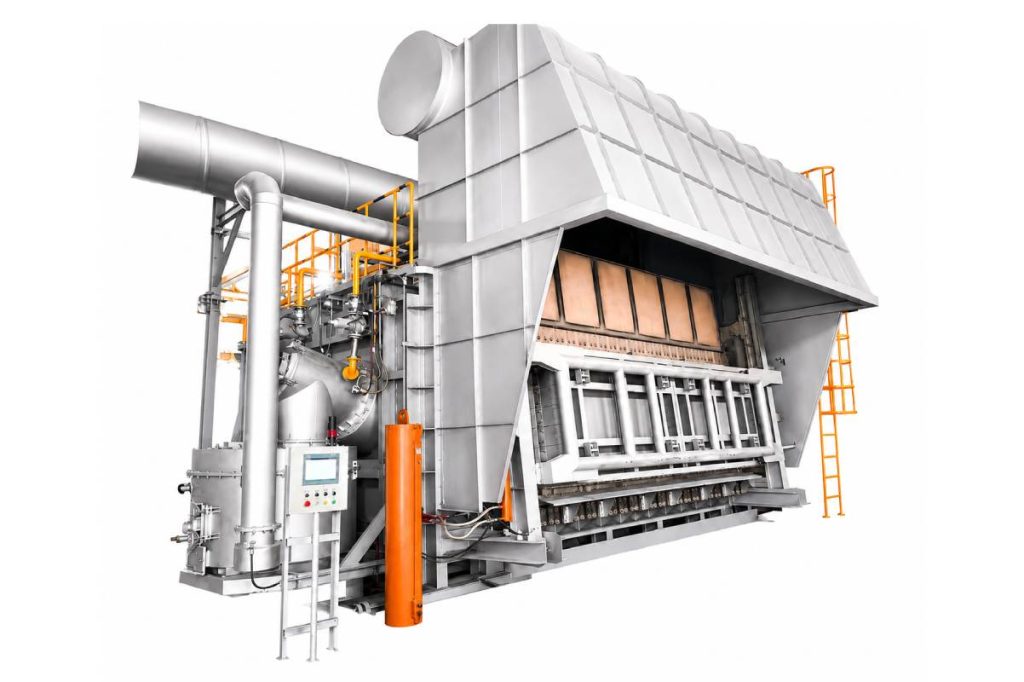

15-120T Tilting Aluminium Melting Furnace

The 15-120T Tilting Aluminium Melting Furnace is a gas‑fired round furnace for aluminium ingots, scraps and master alloys, ideal for 1xxx/6xxx alloy rod and casting production. Equipped with dual regenerative burners, it recovers flue‑gas waste heat for higher thermal efficiency, faster melting and lower per‑ton production cost. Hydraulic tilting with closed‑loop PLC control, laser level monitoring, limit probes and emergency‑return function guarantee stable molten‑aluminum outflow and safe operation.
Get a Quote

Features

Lower Gas Consumption

The regenerative burner system stores heat from outgoing flue gas and uses it to preheat combustion air during the next firing cycle. This improves heat utilization and supports energy consumption of <=60 Nm3/t-Al under the specified test condition.

Stable Molten Aluminum Flow

Hydraulic tilting is controlled by PLC calculation based on real-time launder level data. The laser distance meter enables +/-2 mm molten aluminum level control, supporting stable feeding to downstream equipment.

Longer Refractory Life

The molten bath area uses non-wetting aluminum castable, anti-penetration castable, lightweight insulation brick and aluminum silicate fiber board. Segmented castable construction helps absorb thermal expansion and reduce molten aluminum leakage risk.

Improved Door Sealing

The furnace door is hydraulically lifted and pressed by cylinders. Heat-resistant castings around the door opening create a reliable sealing surface, reducing heat loss and smoke leakage.

Reliable Combustion Safety

Each burner is equipped with automatic ignition and UV flame detection. If flame failure occurs, the system cuts off gas supply and triggers alarms to protect operators and equipment.

Applications

  • Aluminum rod production lines

  • Aluminum casting and rolling lines

  • Aluminum ingot melting

  • Return scrap remelting

  • Master alloy melting and alloying

  • Industrial aluminum processing plants

What the Line Includes

The system is delivered as a sequence of coordinated stations, each built and tested in-house before shipment.

  • Furnace Steel Structure

    Round‑shaped tilting furnace body with heavy‑duty steel frame for 15‑ton molten‑aluminum load.

  • Refractory Lining

    Full castable lining including non‑wetting, anti‑penetration and thermal‑insulation layers, service life ≥5 years.

  • Regenerative Combustion System

    Two‑set 3300 kW regenerative burners, natural gas valve station & flue‑gas exhaust for waste‑heat recovery.

  • Hydraulic Tilting & Outlet Assembly

    Hydraulic tilting cylinders plus concentric rotary outlet, laser‑level sensor for launder‑flow monitoring.

  • Furnace Door Assembly

    Hydraulic lifting door with double‑side pneumatic compression for reliable heat‑sealing performance.

  • Electrical & Automation

    Siemens S7‑1500 PLC,12‑inch HMI, complete safety interlock, alarm & fault‑logging functions.

  • Auxiliary Systems

    Temperature‑measuring, furnace‑pressure control, compressed‑air system and furnace‑mouth dust‑collection hood.

  • Safety Protection Unit

    UV flame detection, gas‑leak test, over‑temperature & pressure interlocks, emergency manual‑return valve.

Standard Configurations

Reference size cover most projects. Intermediate capacities and custom configurations are engineered on request.

Item Specification
Furnace type Round tilting natural gas aluminium melting furnace
Application Melting solid aluminum
Raw materials Aluminum ingots, return scraps and master alloys
Furnace capacity 15 + 1.5 tons molten aluminium
Furnace chamber size Diameter 4400 mm x height 2450 mm
Fuel Natural gas, >=8400 Kcal/Nm3
Burner type Regenerative burners, 2 sets
Burner power 3300 kW
Maximum natural gas flow 338 Nm3/h
Melting rate >=5 t/h, aluminum ingots from room temperature to 720 deg C
Energy consumption <=60 Nm3/t-Al under defined test conditions
Ignition method Gas ignition gun, 2 sets
Ignition gun power 20 kW per set
Flame detection UV flame detector for each burner
Furnace chamber temperature Max. 1200 deg C, normal setting 1100 deg C
Molten aluminum temperature 700-850 deg C
Furnace pressure 30-50 Pa
Lining structure Full castable refractory lining
Lining service life >=5 years, excluding wearing areas such as door opening and outlet
Furnace wall temperature <= ambient temperature +55 deg C, excluding thermal bridge points
Molten bath depth 525 mm
Drossing slope angle 30 degrees
Furnace door opening 1500 x 1500 mm
Door lifting method Hydraulic cylinder + chain wheel set
Door compression method Double-side pneumatic cylinder compression
Outlet structure Concentric rotary outlet
Molten aluminum casting flow rate >=10 t/h
Control system Siemens S7-1500 PLC + 12-inch touch screen
Noise <=85 dB measured 1.5 m from equipment

Reference values — final parameters are confirmed during process design based on raw material, site conditions and product standard. Replace with your confirmed datasheet values before publishing.

Lines Built, Shipped and
Commissioned.

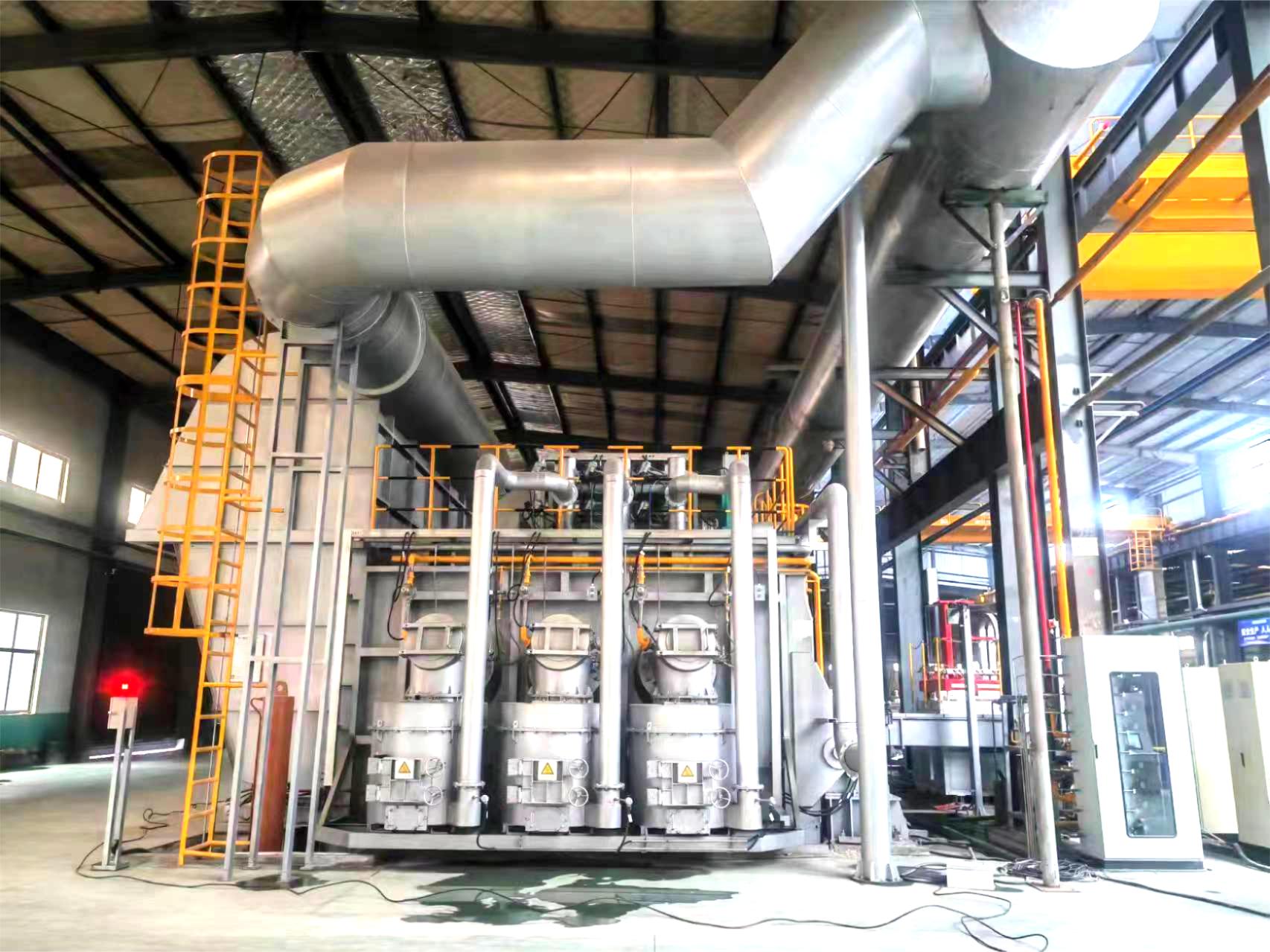

15T Melting and Holding Furnace

workshop

Aluminum Melting Furnace

trial run

Export Packing

container load

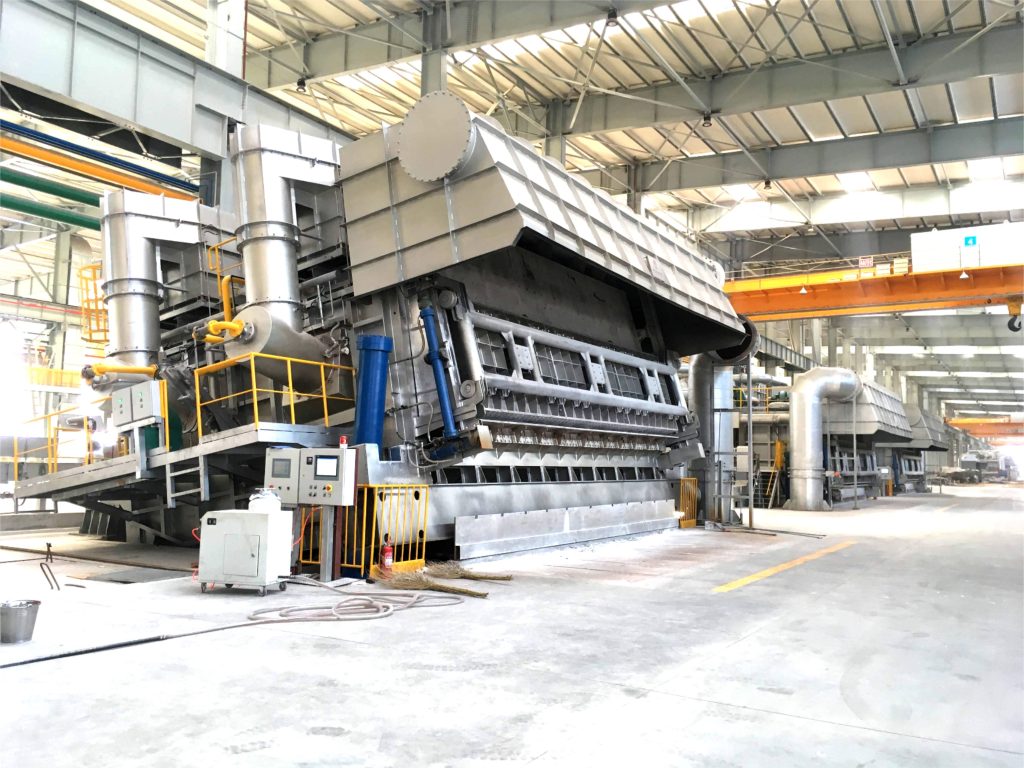

Tilting Melting Aluminum Furnace

workshop

Start a project

Tell Us Your Target. We'll Design the Line.

Share your capacity, raw material and site conditions — we'll come back with a process route, equipment selection and a turnkey path to production.

Email Our Team View a Project
Address

No.310–311 National Road, Quanshan District, Xuzhou City, China

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What materials can this 15T aluminium melting furnace process?
It is designed for aluminum ingots, return scraps and master alloys. It can be used in aluminum rod, casting and rolling production lines.
What is the melting capacity of the furnace?
The furnace has a molten aluminum capacity of 15 + 1.5 tons and a melting rate of >=5 t/h under the specified condition of heating aluminum ingots from room temperature to 720 deg C.
How does the regenerative burner reduce energy consumption?
The regenerative burner recovers heat from high-temperature flue gas and uses it to preheat combustion air, improving thermal efficiency and reducing natural gas consumption.
Can the furnace provide stable molten aluminum flow?
Yes. The hydraulic tilting system uses laser level measurement and PLC closed-loop control to keep the launder surface stable with +/-2 mm accuracy.
What control system is used?
The standard configuration uses Siemens S7-1500 PLC with a 12-inch touch screen. The system supports temperature, pressure, purge, ignition, tilting, alarm and fault diagnosis functions.
Is the furnace designed with safety interlocks?
Yes. The system includes gas pressure monitoring, flame detection, furnace pressure control, over-temperature protection, exhaust temperature monitoring, valve position detection and emergency tilting return protection.
