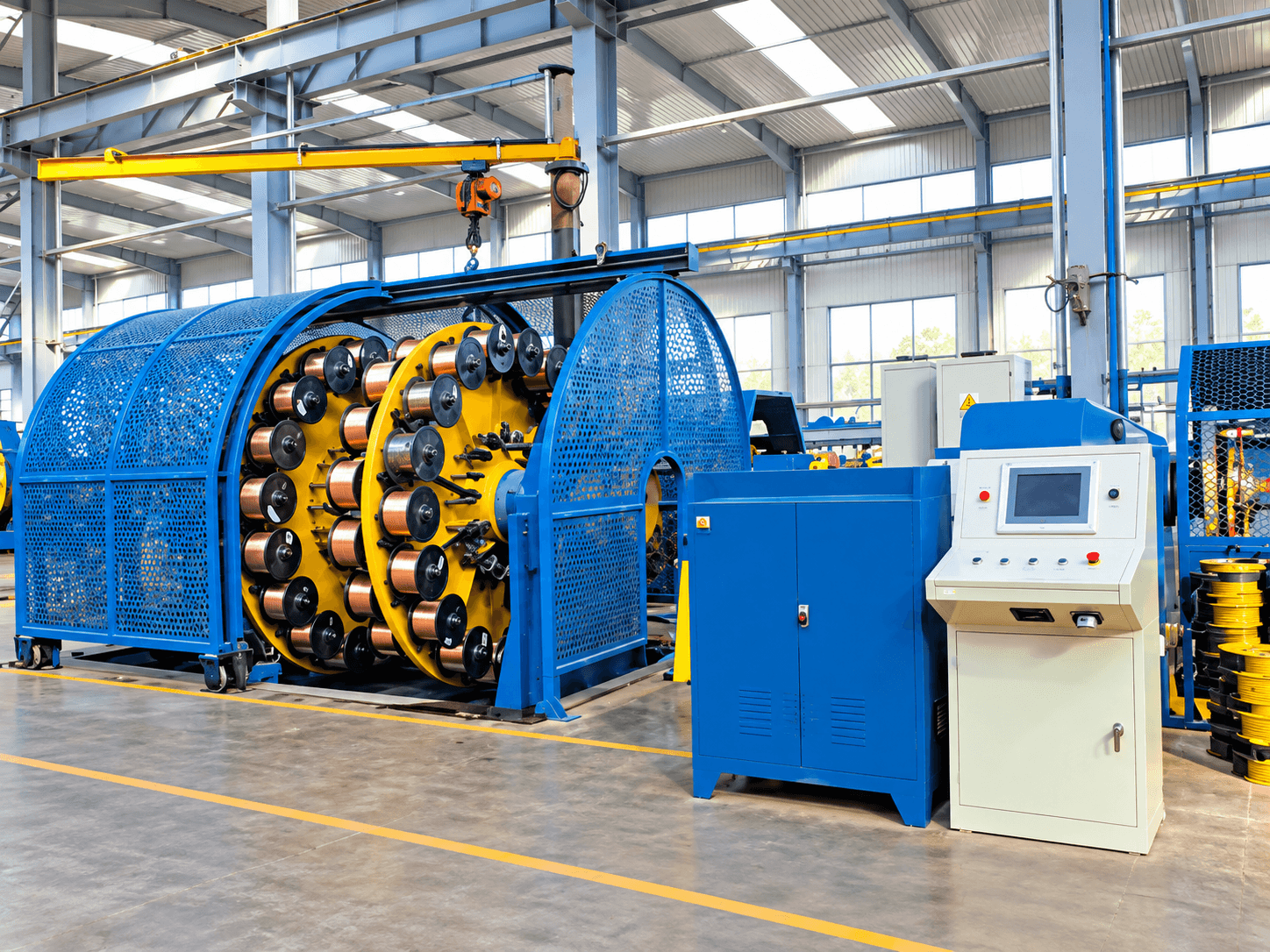

PJP Flat-Type Copper Wire Shielding Machine

Designed for copper wire and copper tape shielding in cable manufacturing, the PJP series supports multiple spool configurations and wire diameters for stable, continuous shielding production.
Get a Quote
Company Profile

Overview

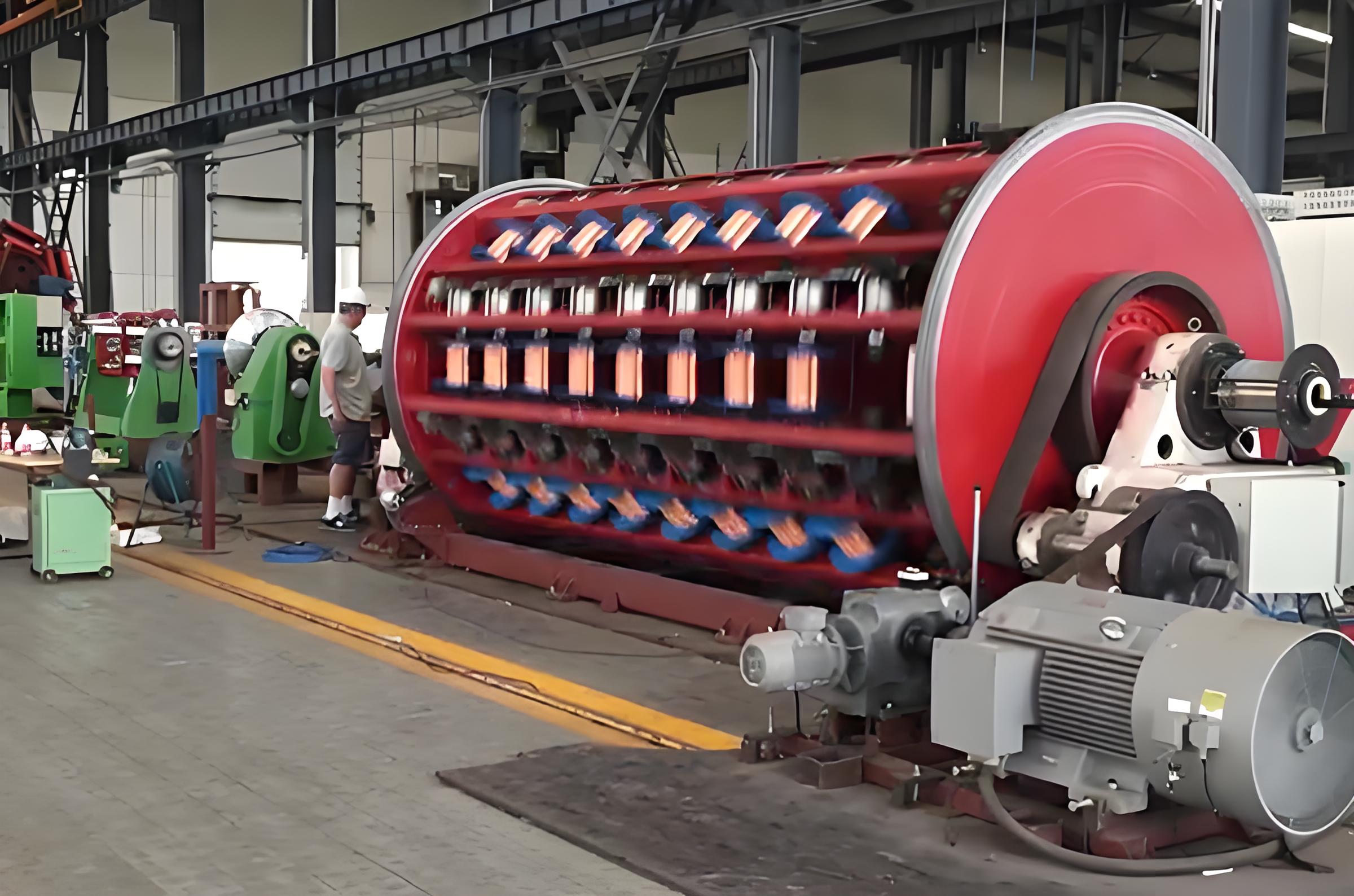

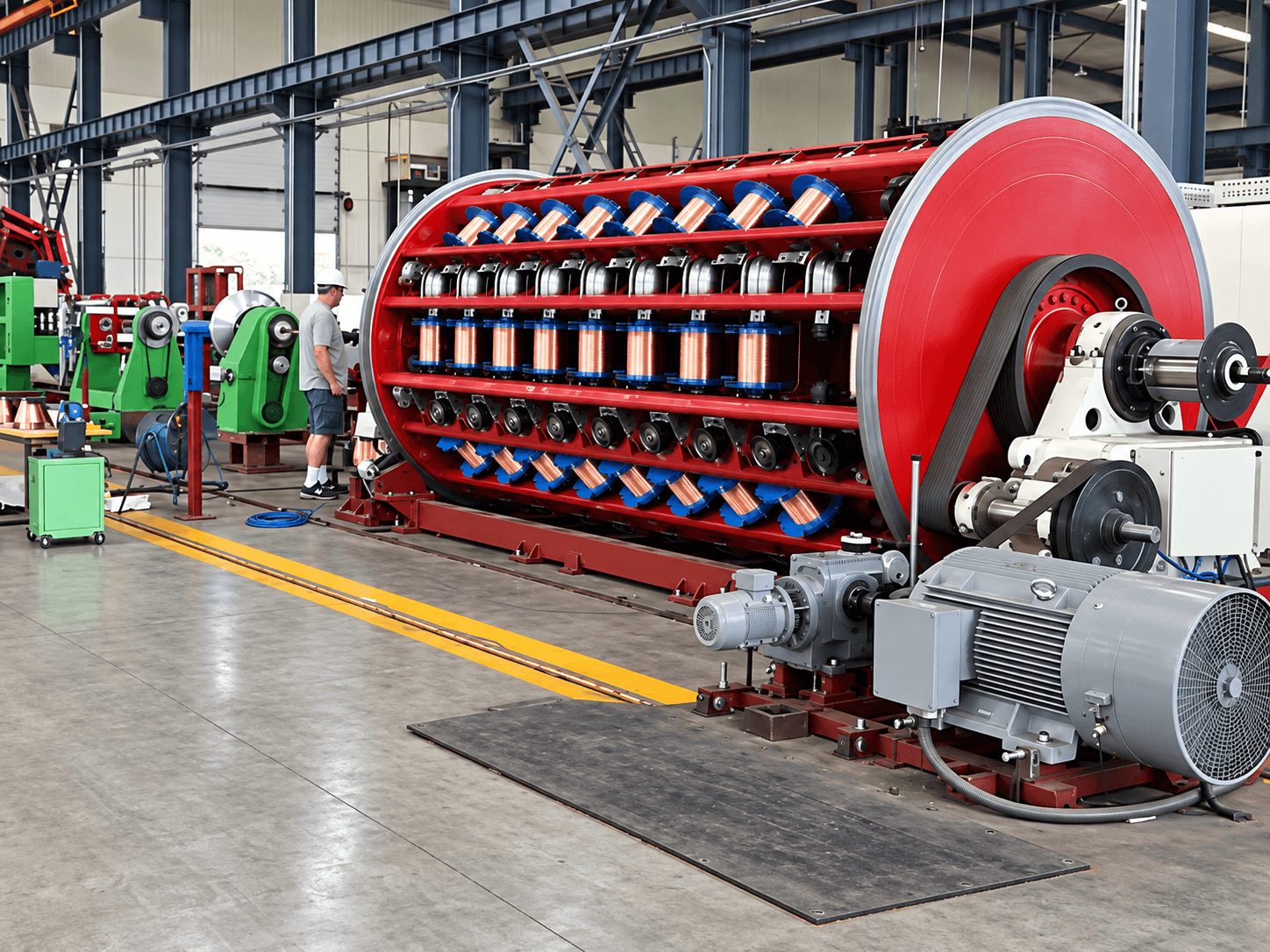

The PJP Flat-Type Copper Wire Shielding Machine is developed for the shielding process of power cables, control cables and other cable constructions that require a metallic shielding layer. It can be configured for different spool sizes and bobbin quantities, making it suitable for production lines that need flexibility across cable specifications. The machine is intended to help cable manufacturers form an even copper-wire or copper-tape shielding layer while maintaining practical production speed and line organization.

Features

Flexible configuration options

Available with Ø315 mm and Ø400 mm spool specifications to match different production requirements.

Multiple bobbin quantities

Supports configurations from 40 to 120 bobbins for different cable shielding structures.

Wide wire-size coverage

Compatible with single-wire diameters from Ø0.6 mm up to Ø2.5 mm, depending on the selected configuration.

Production-oriented layout

Line dimensions are specified for straightforward workshop planning and integration into cable manufacturing facilities.

Suitable for metallic cable shielding

Designed for copper wire and copper tape shielding processes used in various cable applications.

Core Equipment

Spool Size (mm) Single Wire Diameter (mm) Bobbin Quantity Max. Speed (rpm) Production Line L × W (m)
Ø315 Ø0.6 ~ Ø2.0 72 60 44 × 7
80 50 44 × 7
120 40 45 × 7
Ø400 Ø0.8 ~ Ø2.5 40 60 44 × 7
80 45 47 × 7
96 40 47 × 7

Applications

  • Copper wire shielding for power cables

  • Copper wire shielding for control and instrumentation cables

  • Copper tape shielding for selected cable constructions

  • Metallic shielding production for industrial and specialty cables

  • Cable manufacturing lines requiring multiple bobbin-count configurations

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is the PJP Flat-Type Copper Wire Shielding Machine used for?

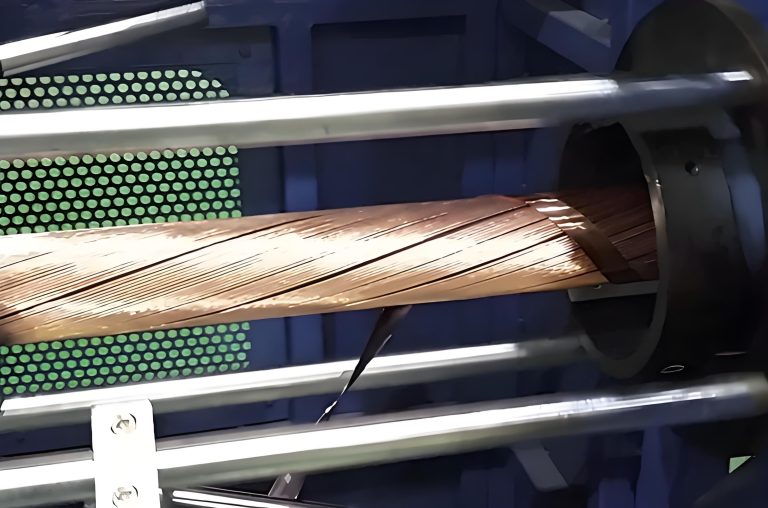

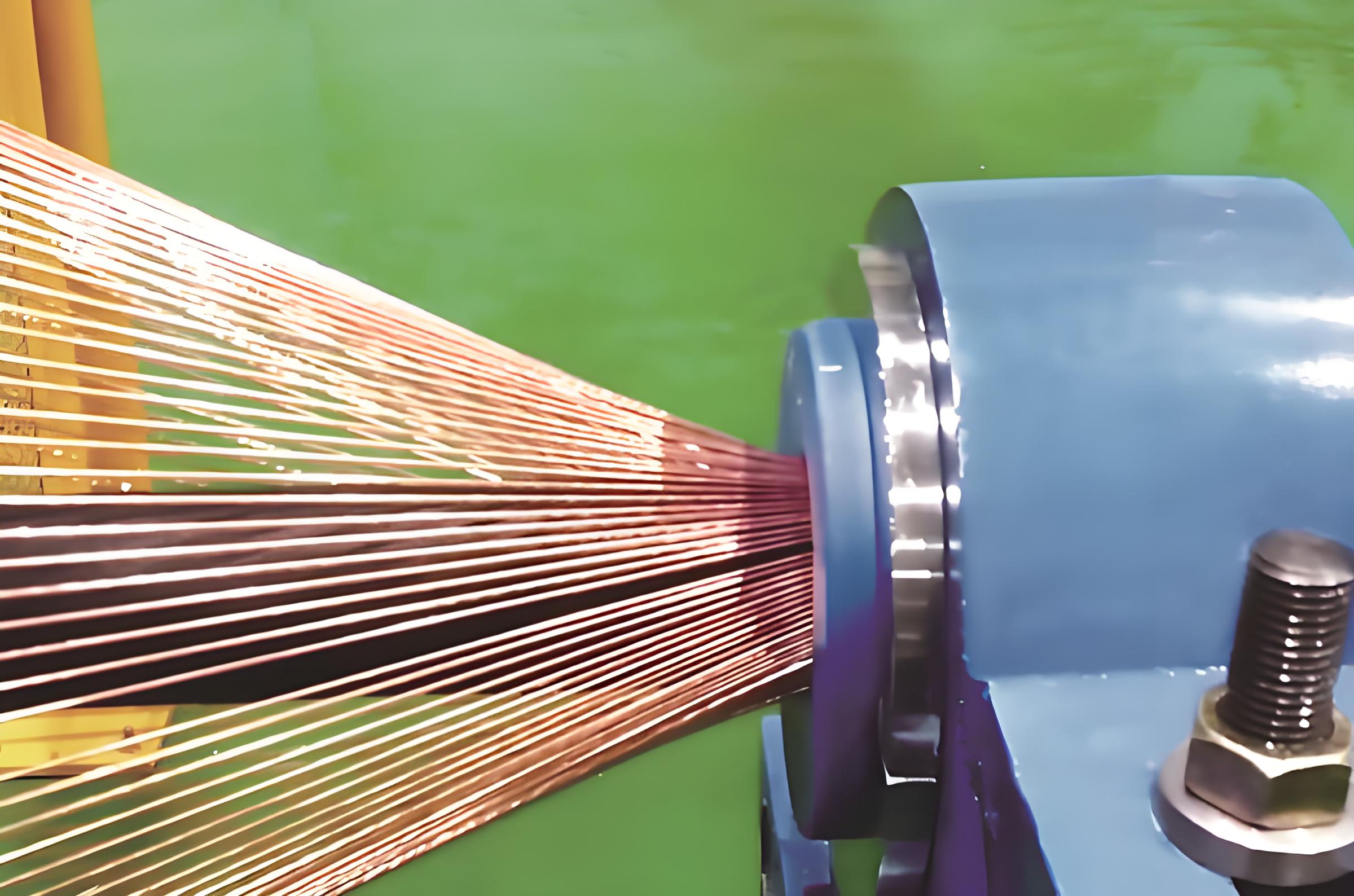

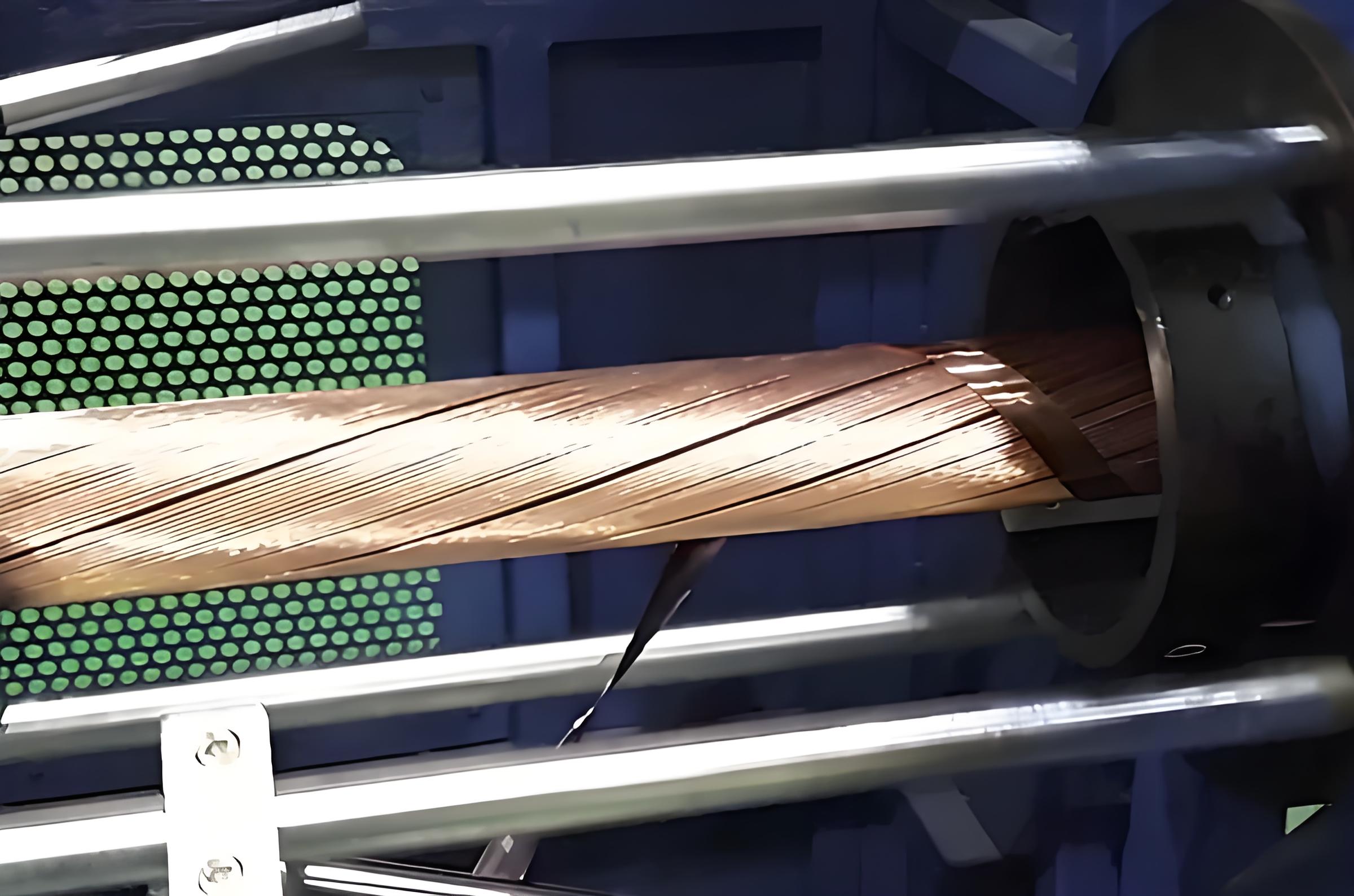

It is used in cable manufacturing to apply copper wire or copper tape shielding around the cable core, creating a metallic shielding layer for applicable cable designs.
What spool sizes are available?
The provided configurations use Ø315 mm and Ø400 mm spool specifications.
What single-wire diameters can the machine handle?
For the Ø315 mm configuration, the listed single-wire diameter is Ø0.6–Ø2.0 mm. For the Ø400 mm configuration, it is Ø0.8–Ø2.5 mm.
How many bobbins can be configured?
Available bobbin quantities in the supplied data are 72, 80 and 120 for Ø315 mm spools, and 40, 80 and 96 for Ø400 mm spools.
What is the maximum operating speed?
Depending on the configuration, the listed maximum speed ranges from 40 to 60 rpm.
Can the machine be integrated into an existing cable production line?
Yes. The listed production-line footprint can be used as a reference during workshop layout planning. Final integration should be confirmed according to the cable structure, upstream/downstream equipment and factory conditions.
