Wire Stranding Machine

This wire stranding machine is designed for bunching fine copper wires into flexible conductors for wire and cable production. With JR500, JR630, JR800 and JR1000 models available, the machine supports different bobbin sizes, conductor cross-sections and production speeds for cable factories and conductor manufacturers.
Get a Quote
Company Profile

An Experienced Team,
Built to Deliver
Overseas.

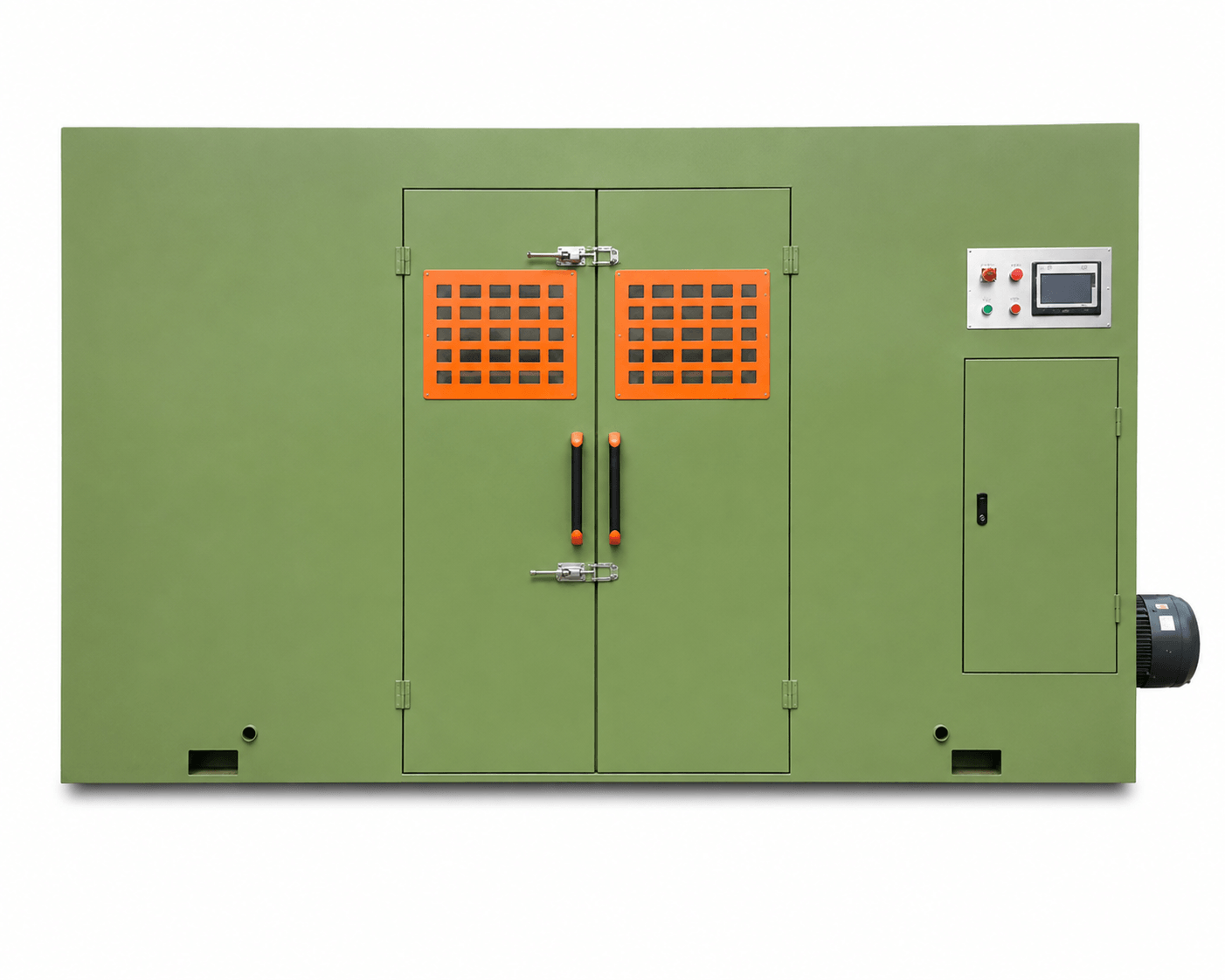

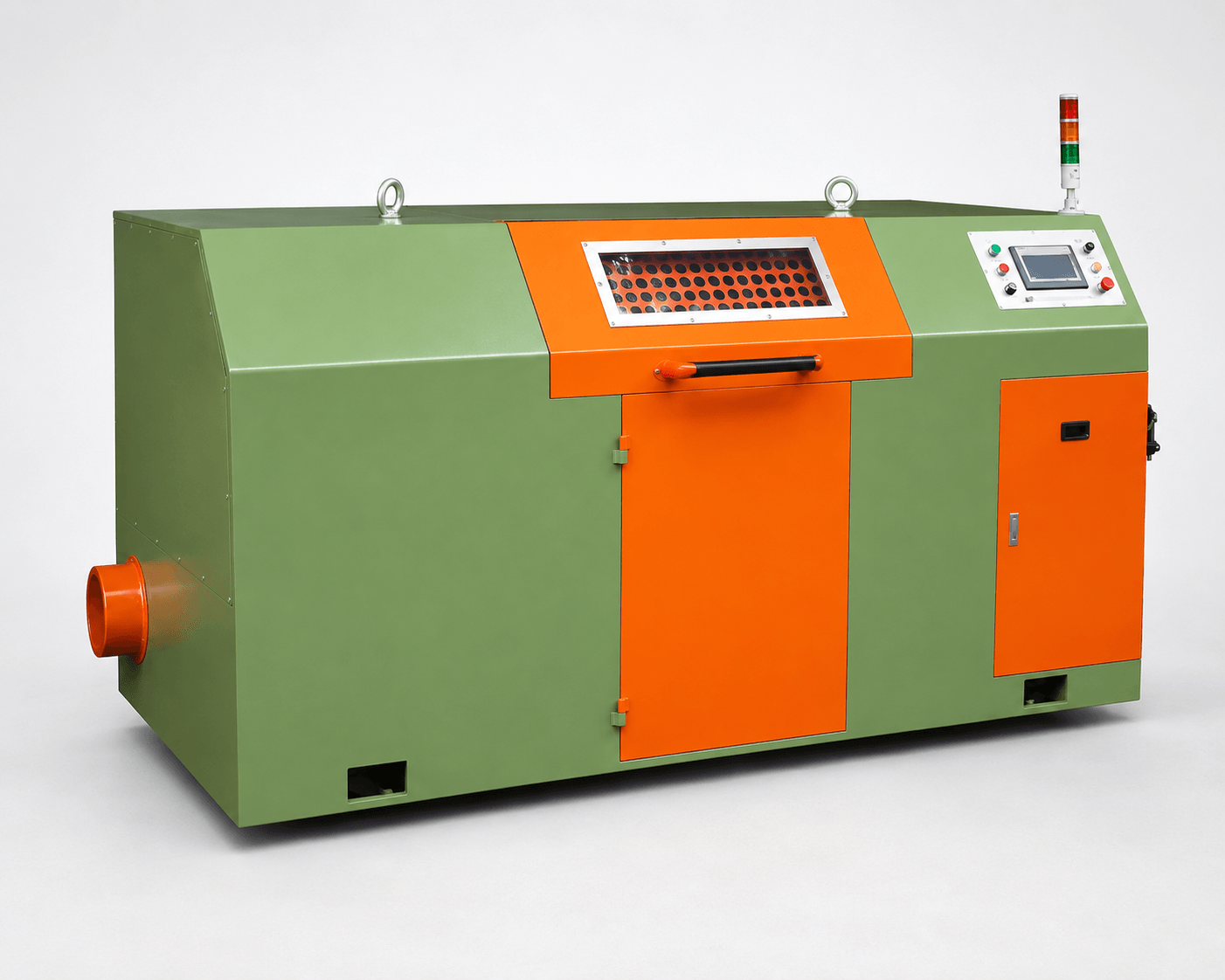

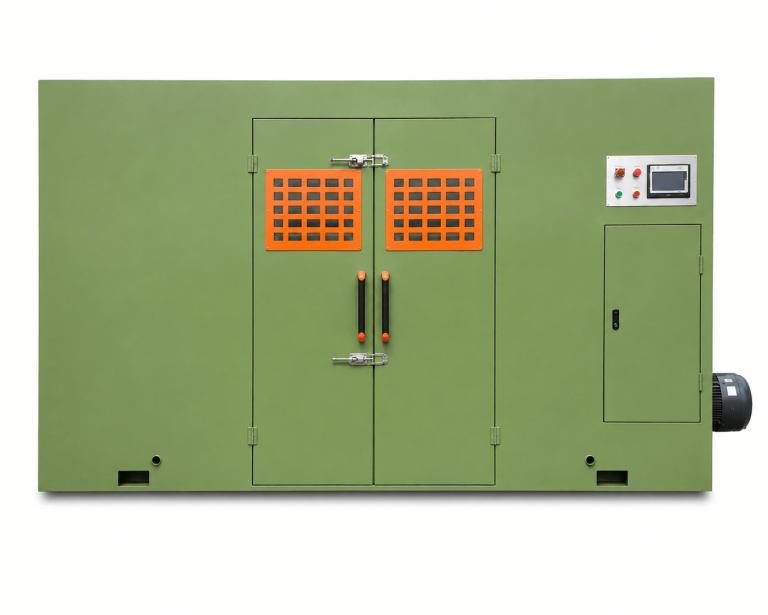

The Wire Stranding Machine, also known as a copper wire buncher, is used to twist multiple copper wires together into a stable stranded conductor. It is suitable for producing flexible copper conductors, cable cores, control cable conductors, electrical wire conductors and other copper wire products where consistent lay pitch and reliable take-up tension are required.

Based on the product page specifications, the series covers compact and large bobbin models from JR500 to JR1000. The machine supports S or Z twisting direction, PLC-assisted magnetic powder clutch tension control, and electrical-hydraulic bobbin loading and unloading. This configuration helps improve production stability, reduce manual handling difficulty and maintain consistent finished conductor quality.

Product Advantages

Multiple Model Options

JR500, JR630, JR800 and JR1000 models are available to match different bobbin sizes, production ranges and workshop requirements.

Stable Copper Wire Bunching

The machine twists multiple copper wires into a compact conductor with controlled lay pitch, helping maintain stable conductor structure during downstream cable manufacturing.

S or Z Twisting Direction

The stranding direction can be selected as S or Z according to cable design, conductor construction and customer process requirements.

PLC-Based Tension Control

Take-up tension is controlled by magnetic powder clutch with PLC, supporting smoother winding and more consistent conductor quality.

Electrical-Hydraulic Bobbin Handling

Electrical-hydraulic loading and unloading reduces operator effort and improves handling efficiency, especially for larger JR800 and JR1000 bobbins.

Core Equipment

Item JR500 JR630
Bobbin Size Max 500 mm Max 630 mm
Production Range 0.50-2.50 mm2 0.15-6.0 mm2
Copper Wire Size 0.08-0.45 mm 0.15-0.67 mm
Lay Pitch 8.40-40.49 mm 26.19-75 mm
Twisting Speed Max 2500 r/min Max 1500 / Max 2000 r/min
Twisting Direction S or Z S or Z
Take-up Tension Control Magnetic powder clutch with PLC Magnetic powder clutch with PLC
Bobbin Loading / Unloading Electrical-hydraulic Electrical-hydraulic
Machine Weight 2100 kg 2780 kg

Machine Structure

Main Part Function

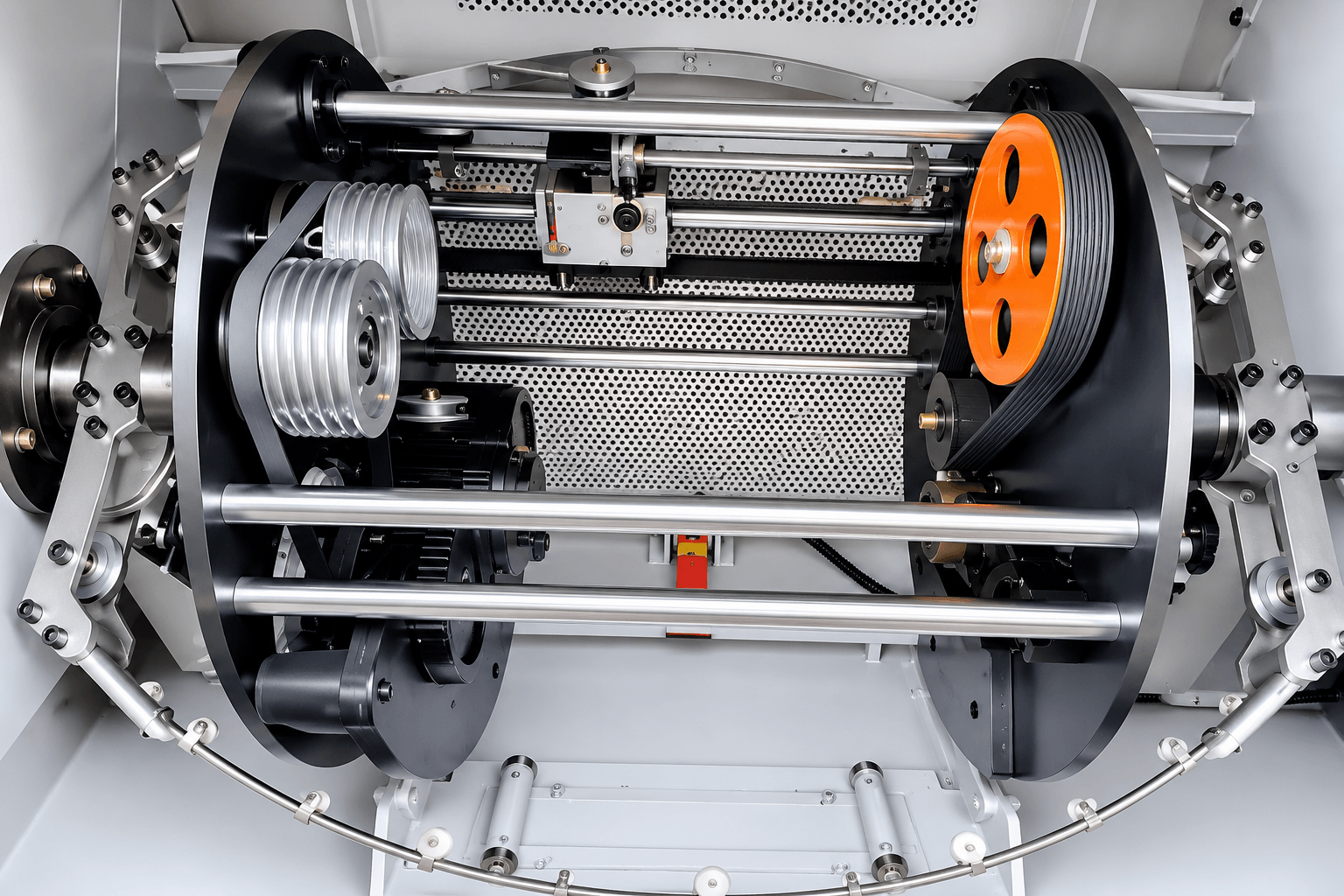

Main stranding body Provides the mechanical structure for high-speed bunching and stable conductor formation.
Pay-off system Feeds copper wires into the bunching section with controlled wire routing.
Twisting section Twists multiple copper wires according to the required lay pitch and S or Z direction.
Take-up system Collects the stranded conductor onto the bobbin with stable winding tension.
Magnetic powder clutch Supports smooth take-up tension regulation during production.
PLC control system Assists operating control, tension coordination and production stability.
Electrical-hydraulic loading system Helps load and unload bobbins more efficiently and safely.
Safety protection system Protects operators and machine components during normal production and maintenance.

Applications

  • Flexible copper conductor production for low-voltage wire and cable manufacturing

  • Electrical wire and building wire conductor bunching before insulation or cabling

  • Control cable and signal cable conductor production requiring stable lay pitch

  • Wire drawing and cable production lines that require downstream bunching equipment

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is a wire stranding machine used for?
It is used to twist multiple copper wires into a stranded conductor for electrical wire, flexible cable, control cable and other cable products.
Which models are available?
According to the source specification, JR500, JR630, JR800 and JR1000 models are available for different bobbin sizes and production ranges.
What wire material can this machine process?
The listed specifications are for copper wire. If other materials are required, the configuration should be confirmed according to the wire material and production target.
Can the twisting direction be selected?
Yes. The machine supports S or Z twisting direction according to conductor structure and cable production requirements.
How is take-up tension controlled?
The source specification states that take-up tension is controlled by magnetic powder clutch with PLC, which supports stable winding quality.
Can the machine be customized?
Yes. Bobbin size, wire range, lay pitch, electrical configuration, voltage and line layout can be customized according to production requirements.
What information is needed for quotation?
Please provide wire material, single wire diameter, required conductor cross-section, lay pitch, bobbin size, production capacity, voltage and workshop layout.
Do you provide installation and after-sales support?
Installation guidance, commissioning support, operator training, spare parts and technical service can be provided according to project requirements.
