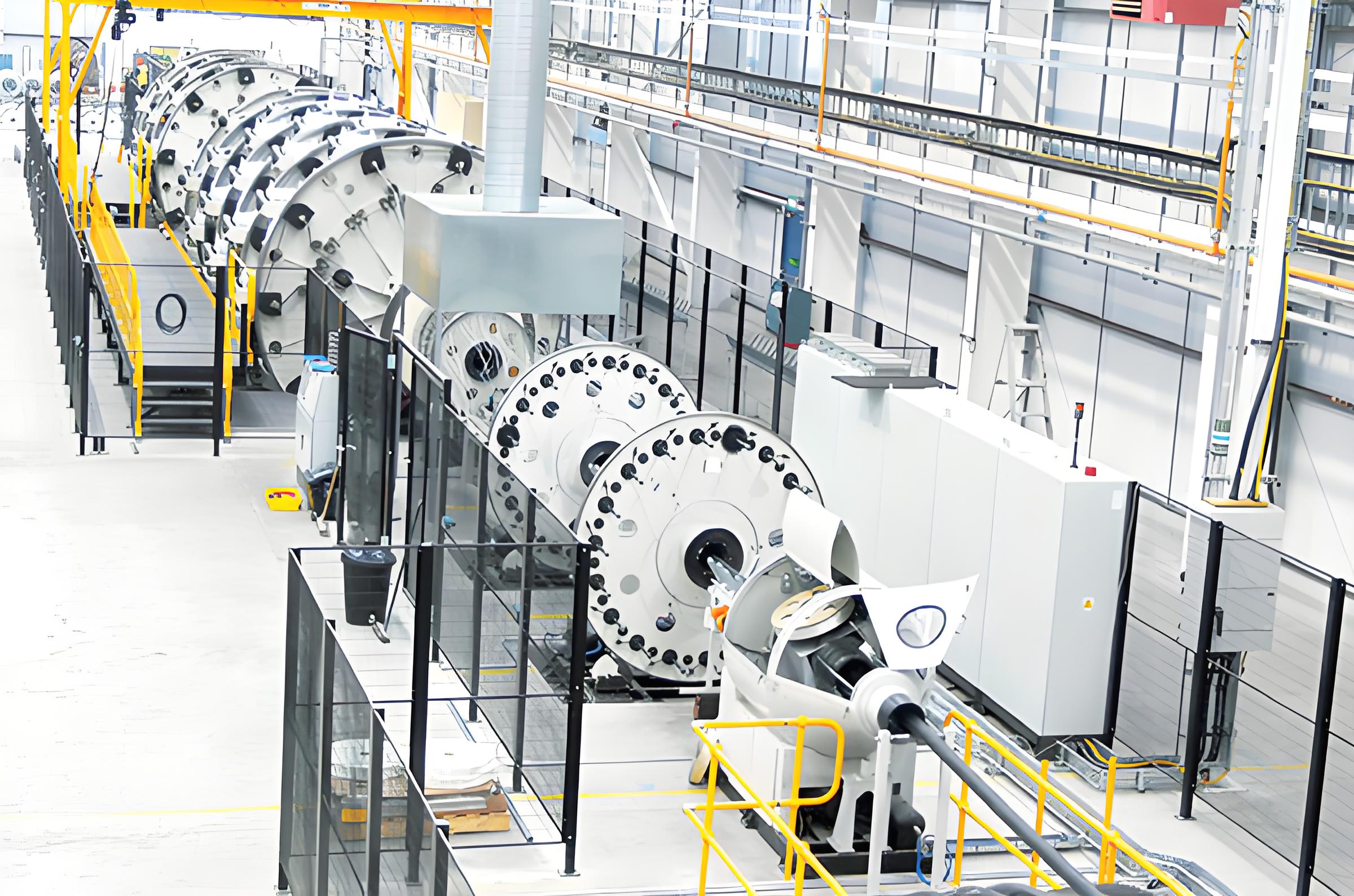

KJY Cradle-Type Steel Wire Armoring Machine

A robust cable armoring solution designed for applying round steel wire or flat steel wire around power, control and industrial cables with stable wire distribution and consistent armor formation.
Get a Quote
Company Profile

Overview

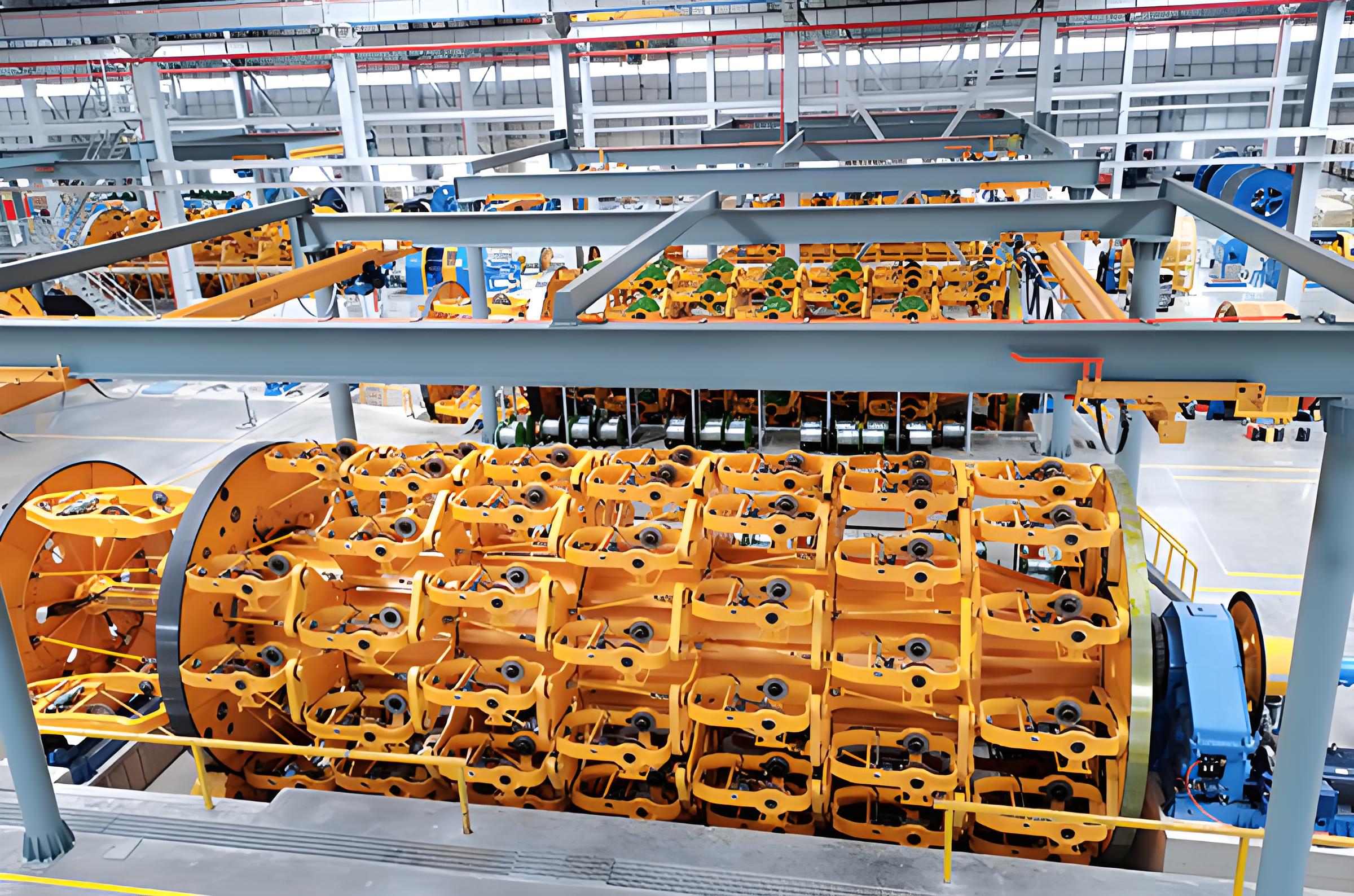

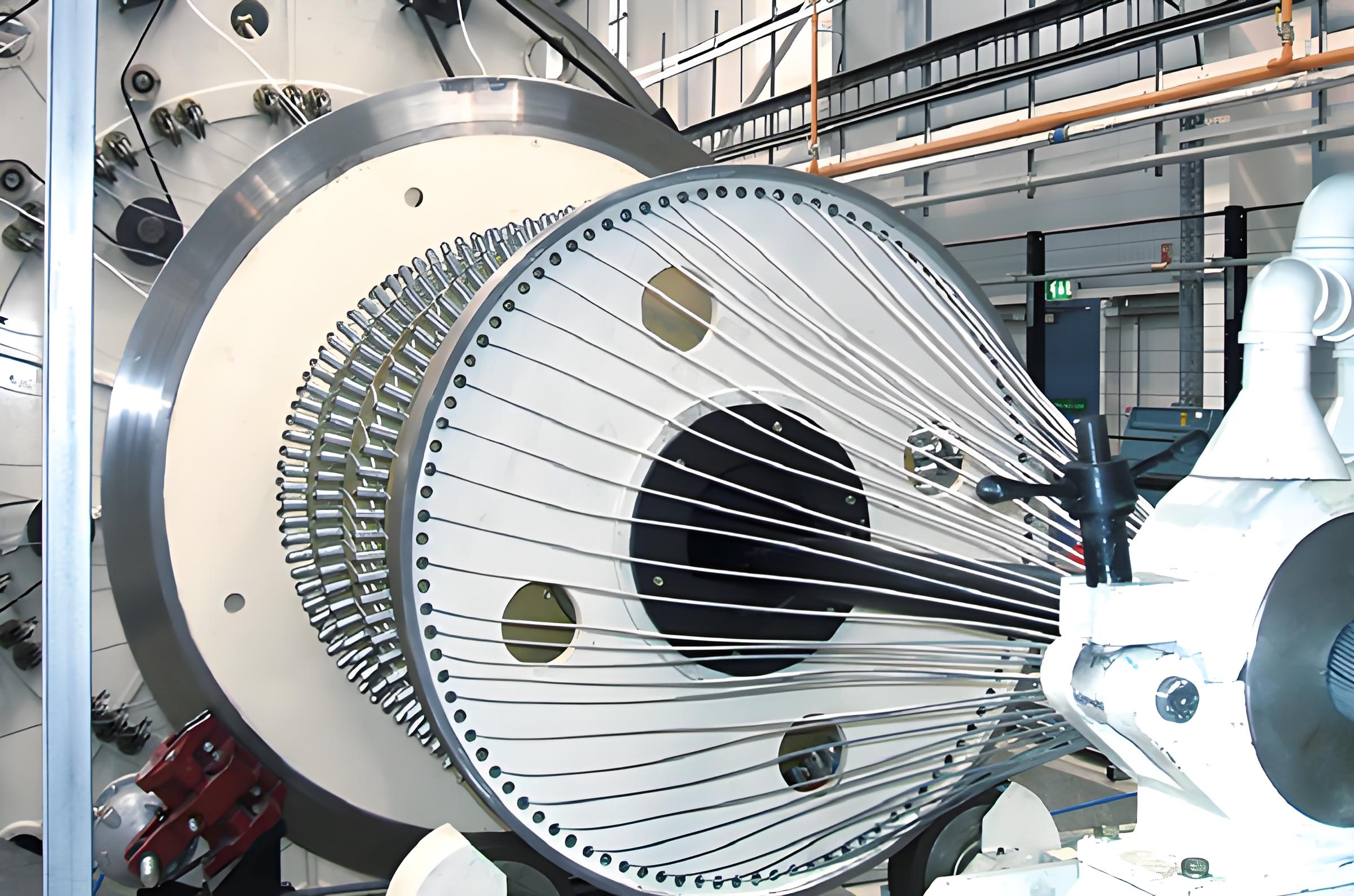

The KJY cradle-type steel wire armoring machine is designed for steel wire armoring of cables that require enhanced mechanical protection. Its cradle-type rotating structure supports multiple wire positions and helps maintain uniform wire tension during the armoring process. The machine can be configured for different reel sizes and wire counts, making it suitable for a wide range of cable diameters and production requirements.

Product Advantages

Stable cradle-type structure for smooth rotation and reliable continuous production.

Supports both round steel wire and flat steel wire armoring for flexible cable designs.

Multiple reel and wire-count configurations to match different cable specifications.

Uniform wire pay-off and arrangement help improve armor consistency and finished cable quality.

Suitable for medium- and heavy-duty cable production where mechanical protection is required.

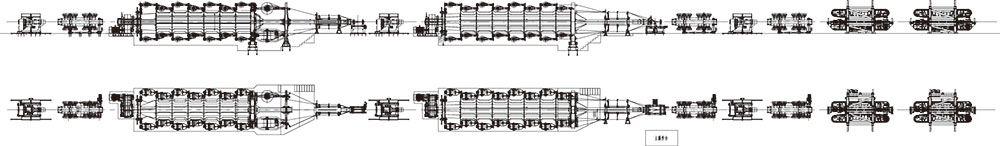

Core Equipment

Reel Size (mm) Maximum Rotating Speed (rpm) Single Wire Diameter (mm)
18B 24B 36B 48B 60B 70B 80B 90B 100B Steel Wire Flat Steel Wire (W × H)
Ø400 98 86 56 Ø1.4-Ø4.0
Ø500 82 71 45 36 Ø1.5-Ø5.0 (4-7) × (1.5-3)
Ø630 70 57 40 30 15 15 15 15 15 Ø1.8-Ø6.0 (5-8.5) × (2-3.5)

Applications

  • Steel Wire Armored (SWA) power cables

  • Control and instrumentation cables requiring mechanical protection

  • Mining and heavy-industry cables

  • Infrastructure and construction cables

  • Cables for underground or harsh installation environments

  • Customized round-wire or flat-wire armored cable production

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What type of cable is this machine mainly used for?
It is mainly used for steel wire armoring of cables, including power, control and industrial cables that require additional mechanical protection.
Can the machine process both round and flat steel wire?
Yes. The technical configuration supports round steel wire and flat steel wire within the specified size ranges shown in the parameter table.
What reel sizes are available?
The listed reel sizes are Ø400 mm, Ø500 mm and Ø630 mm, with different maximum rotating speeds depending on the selected wire-count configuration.
How should I select the correct machine configuration?
Selection depends on cable diameter, armor wire type and size, number of wires, required production speed, reel size and the layout of your cable production line.
Can the line be customized for different cable specifications?
Yes. The machine configuration and supporting line equipment can be matched to the customer’s cable structure, production requirements and factory layout.
What information should I provide for a quotation?
Please provide the finished cable specification, cable diameter range, steel wire or flat-wire size, required wire count, reel size, target production capacity and available workshop space.
