Aluminium Holding Furnace

The Aluminium Holding Furnace maintains stable molten‑aluminum temperature between melting and casting, minimizing temperature fluctuation for consistent metal quality. PINMI designs it focusing on temperature stability, refractory service life, sealing, safety interlocks and downstream‑equipment compatibility. It shares proven melting‑furnace designs including robust steel structure, segmented refractories and factory‑validated combustion & control modules.
Get a Quote

Features

Stable Molten Aluminum Temperature

The holding furnace maintains molten aluminum within the required process range before casting or transfer. Stable holding temperature helps downstream production achieve more consistent metal quality.

Lower Heat Loss

Optimized furnace lining, improved door sealing and controlled furnace pressure reduce unnecessary heat leakage. For suitable projects, regenerative combustion can further improve fuel efficiency.

Reliable Furnace Entrance Sealing

The furnace door area uses heat-resistant castings with precision machining. Better flatness and sealing help reduce smoke leakage, heat escape and furnace door impact damage.

Durable Aluminum-Application Lining

Refractory materials are selected according to the alloy and process. Segmented pouring, concave wedge joints and anchoring methods help adapt to thermal expansion while reducing lining failure risk.

Safer Combustion System

The combustion system can be designed according to EU standards such as DIN-EN746 and configured with reliable control and detection units. Key components can be assembled and commissioned before delivery.

Applications

  • Aluminum casting production lines

  • Aluminum alloy holding before casting

  • Molten aluminum transfer systems

  • Aluminum rod and billet production

  • Aluminum slab and rolling production lines

  • Die casting and gravity casting plants

What the Line Includes

The system is delivered as a sequence of coordinated stations, each built and tested in-house before shipment.

  • Furnace Steel Structure

    Heavy‑duty steel frame for fixed / tilting‑type furnace body, adapts to long‑term molten‑aluminum working load.

  • Refractory Lining

    Process‑matched segmented refractory lining, anti‑leakage & anti‑erosion, customized for different aluminum alloys.

  • Combustion System

    Optional conventional or regenerative burner modules, factory pre‑tested, supports multiple fuel types.

  • Furnace Door Assembly

    Precision‑machined cast entrance, reliable sealing design to reduce heat loss and flue gas leakage.

  • Molten‑Metal Transfer Assembly

    Compatible with flow trough, temperature‑measuring device; tilting version realizes controlled aluminum liquid discharge.

  • Electrical & Automation

    PLC + HMI control, optional international‑brand components, temperature‑pressure monitoring & fault‑alarm functions.

  • Auxiliary Systems

    Temperature & furnace‑pressure closed‑loop control, gas‑supply auxiliary units and on‑site exhaust interfaces.

  • Safety Protection Unit

    Multi‑interlock protection for gas leakage, over‑temperature, pressure abnormality, hydraulic and furnace‑door limit status.

Standard Configurations

Reference size cover most projects. Intermediate capacities and custom configurations are engineered on request.

Item Available Configuration or Performance
Function Molten aluminum holding, alloying, refining and transfer
Furnace types Fixed, tilting, rectangular, round or customized holding furnace
Raw material state Molten aluminum from upstream melting furnace or transfer system
Fuel options Natural gas, LPG, coal gas, diesel oil or project-specific fuel
Combustion system Conventional or regenerative combustion according to process needs
Furnace body Heavy-duty steel structure designed for industrial aluminum plants
Furnace lining Process-matched refractory lining with leakage-prevention design
Control system PLC-based automatic control with HMI operation
Electrical brands Siemens, ABB, Allen-Bradley, Schneider and other international options
Safety functions Gas, air, flue gas, furnace pressure, temperature, hydraulic and door-position alarms
Supporting equipment Flow trough, molten aluminum temperature measurement, automatic flow blocking and ladle tilting platform

Reference values — final parameters are confirmed during process design based on raw material, site conditions and product standard. Replace with your confirmed datasheet values before publishing.

Lines Built, Shipped and
Commissioned.

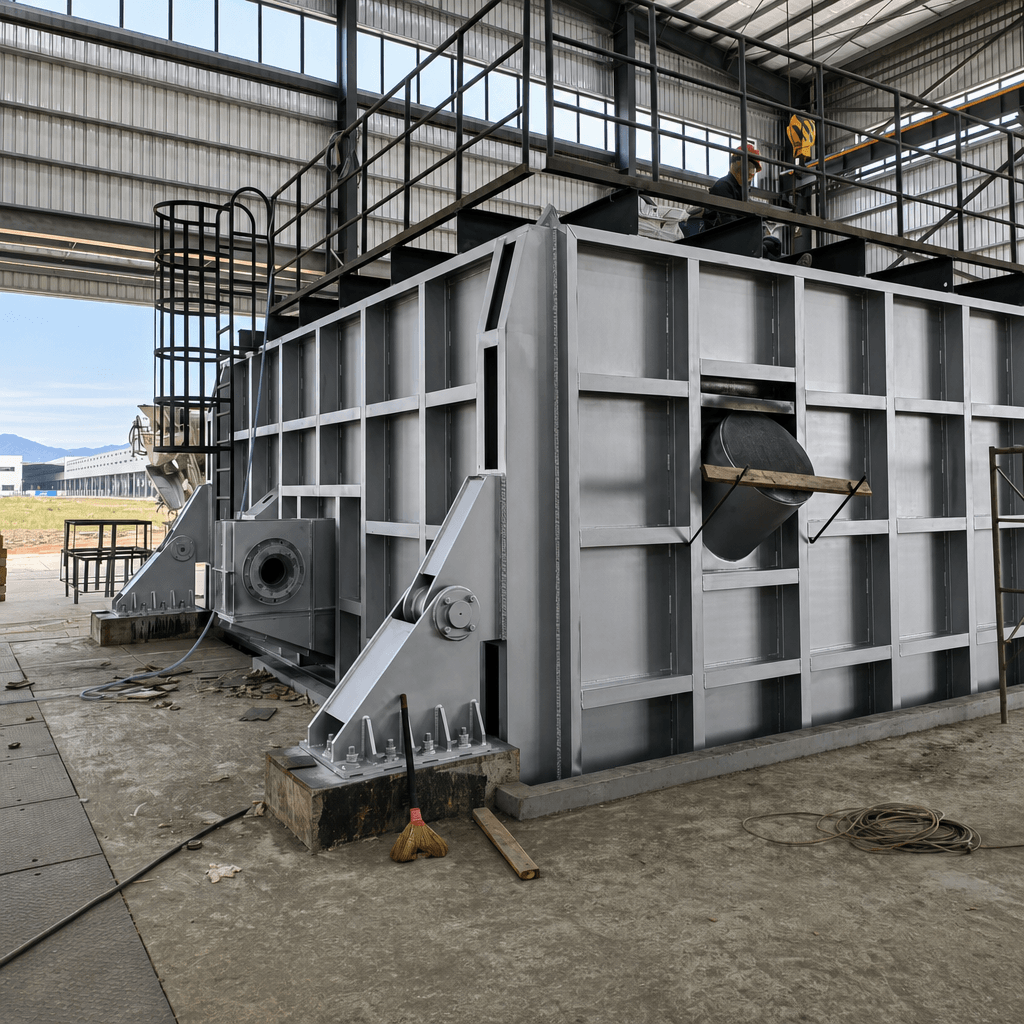

Furnace Assembly

workshop

CCR Line

trial run

Export Packing

container load

Furnace Assembly

workshop

Start a project

Tell Us Your Target. We'll Design the Line.

Share your capacity, raw material and site conditions — we'll come back with a process route, equipment selection and a turnkey path to production.

Email Our Team View a Project
Address

No.310–311 National Road, Quanshan District, Xuzhou City, China

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is the difference between an aluminium melting furnace and a holding furnace?
A melting furnace melts solid aluminum materials into molten aluminum. A holding furnace keeps molten aluminum at a stable temperature before casting, transfer or downstream processing.
Can the holding furnace be designed as a tilting type?
Yes. The holding furnace can be customized as fixed or tilting type according to factory layout, transfer method and downstream equipment.
What applications is the aluminium holding furnace suitable for?
It is suitable for aluminum casting lines, aluminum rod and billet production, molten aluminum transfer systems, die casting support and secondary aluminum plants requiring holding after melting.
Can the furnace use a regenerative combustion system?
Yes. According to the holding temperature, fuel type and energy-saving requirements, the furnace can be configured with regenerative combustion or other suitable burner systems.
What control system can be used?
The furnace can use a PLC-based control system with HMI operation. International electrical brands such as Siemens, ABB, Allen-Bradley and Schneider can be selected according to project requirements.
Can the holding furnace connect with flow troughs and casting lines?
Yes. The furnace can be integrated with flow troughs, molten aluminum temperature measurement devices, automatic flow-blocking devices and ladle tilting platforms.
