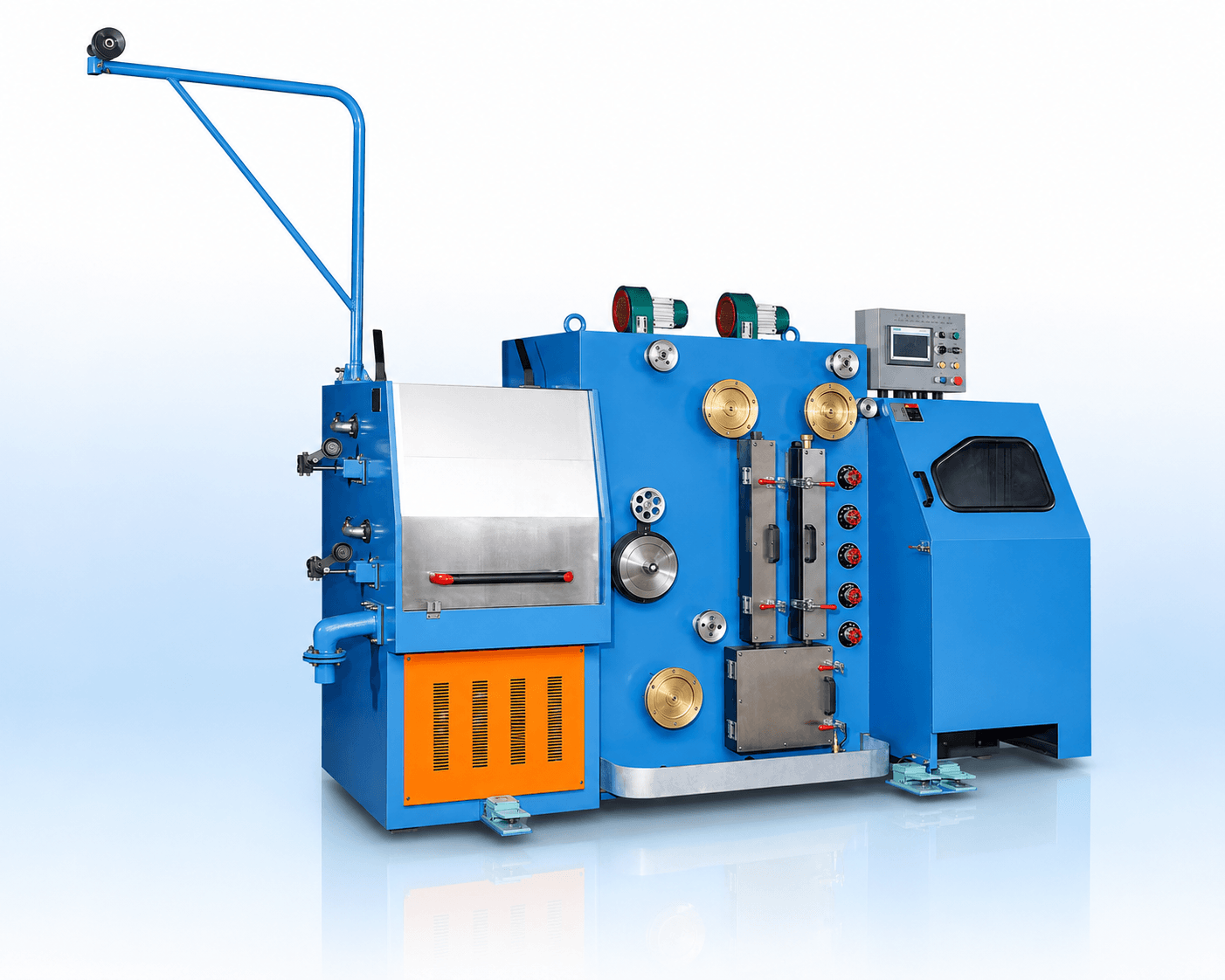

Small Wire Drawing Machine with Annealer

The Small Wire Drawing Machine with Annealer is designed for drawing copper wire into fine wire sizes and producing soft annealed copper wire for cable production and electrical conductor manufacturing. The machine supports high-speed single-wire drawing, integrated annealing capacity and common bobbin take-up options for wire and cable factories.
Get a Quote
Company Profile

An Experienced Team,
Built to Deliver
Overseas.

This small wire drawing machine with annealing function is suitable for copper wire processing after intermediate drawing and before bunching, stranding, insulation or other cable manufacturing processes. According to the source specification, the line includes XT22/24, XTD22/24 and XTD16 models, covering copper outlet wire ranges from 0.10 mm up to 0.80 mm depending on the selected machine model.

The machine combines wire drawing, annealing and take-up in a compact production line. With maximum mechanical speed up to 2000 m/min and transformer capacity options from 20 KVA to 60 KVA, it is suitable for factories that require stable small copper wire production, soft wire performance and practical operation for continuous cable production.

Product Advantages

Integrated drawing and annealing

The machine is designed for copper fine wire drawing with annealing, helping factories produce soft copper wire in one continuous production process.

Multiple model options

XT22/24, XTD22/24 and XTD16 models cover different inlet wire diameters, outlet wire ranges, die quantities and motor power requirements.

High-speed small wire production

The source specification lists maximum mechanical speed up to 2000 m/min, supporting efficient copper wire production for cable factories.

Wide outlet wire range

Depending on the selected model, the machine can produce copper wire from 0.10 mm to 0.80 mm for different electrical wire and conductor applications.

Compatible bobbin options

The equipment supports ABS, PVC, PND300 and PND400 bobbins, making it practical for common wire collection and downstream handling.

What the Line Includes

The system is delivered as a sequence of coordinated stations, each built and tested in-house before shipment.

  • Integrated Drawing & Online Annealing

    1. All‑in‑one unit completes copper fine‑wire drawing and softening in one pass, stable soft‑wire elongation for cable conductor usage. 2.

  • Multiple Model Portfolio

    XT22/24, XTD22/24 and XTD16 models with varied dies, power and transformer capacity, match different inlet‑outlet wire‑size requirements.

  • Wide Fine‑Wire Output Range

    Copper finished wire covers 0.10‑0.80 mm across models, covers mainstream specifications for electronic wire and small‑size cable.

  • High‑Speed Fine‑Wire Production

    Max mechanical speed reaches 2000 m/min, delivers high‑throughput continuous fine‑copper‑wire production for cable workshops.

  • Universal Bobbin Compatibility

    Supports ABS, PVC, PND300 / PND400 bobbins, fits standard downstream handling workflows in wire‑and‑cable factories.

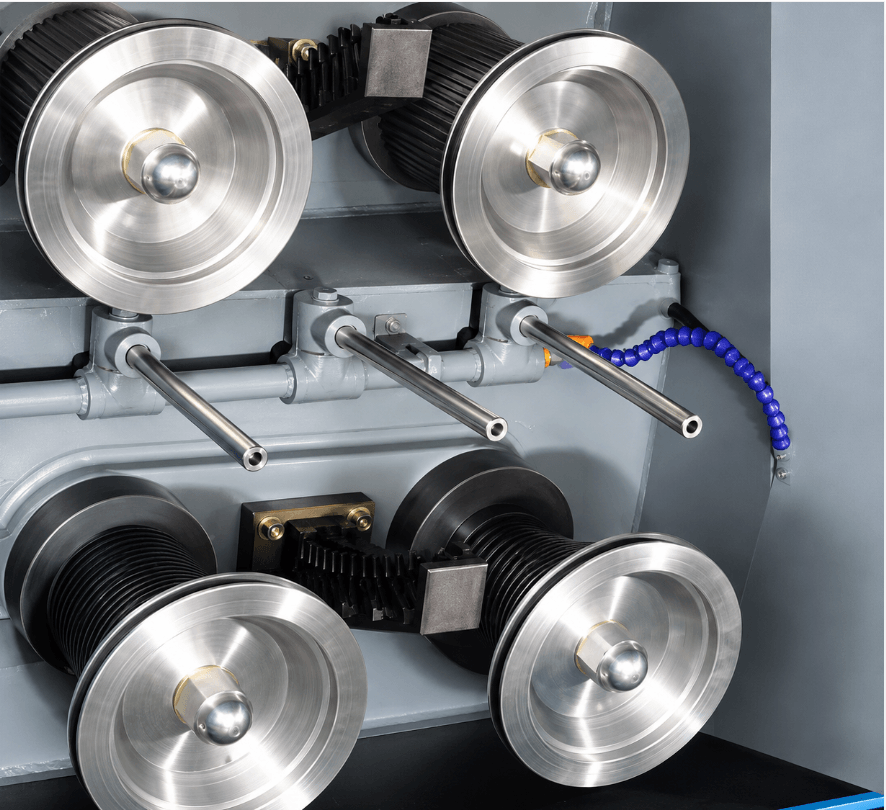

  • Precision Multi‑Die Drawing System

    Multi‑die drawing cones achieve gradual wire reduction, ensuring consistent dimension and smooth surface of finished fine copper wire.

  • Custom‑Tailored Line Configuration

    Adjust model, transformer capacity, bobbin style, electric components and layout according to local voltage and workshop conditions.

  • Stable Annealing Transformer Unit

    20‑60 KVA transformer options supply steady annealing power, reliable soft‑wire performance under long‑run high‑speed operation.

Core Equipment

Parameter

XT22/24

XTD22/24

XTD16

Inlet Wire Diameter

Max 1.20 mm (Cu)

Max 1.60 mm (Cu)

Max 2.0 mm (Cu)

Outlet Wire Diameter

Cu: 0.10-0.32 mm

Cu: 0.15-0.60 mm

Cu: 0.30-0.80 mm

Mechanical Speed

Max 2000 m/min

Max 2000 m/min

Max 2000 m/min

Maximum Number of Dies

22/24

22/24

16

Drawing Cone Diameter

190 mm

190 mm

200 mm

Mechanical Elongation

Drawing part 17.6%; final die 15%

Drawing part 13%; final die 8%

Not specified in source image

Main Motor Power

11 kW

15 kW

22 kW

Take-up Motor Power

3 kW

3 kW

5.5 kW

Transformer Capacity

20 KVA

50 KVA

60 KVA

Bobbin Size

ABS, PVC bobbin, or PND300/400 bobbin

ABS, PVC bobbin, or PND300/400 bobbin

ABS, PVC bobbin, or PND300/400 bobbin
Cable Production Equipment Configured according to lithium battery copper foil process requirements and project scale.
Electrical Control and Automation System Controls production parameters, alarms, line synchronization and process monitoring.

Applications

  • Copper fine wire drawing for cable production

  • Soft annealed copper wire production

  • Electrical conductor manufacturing

  • Building wire and electronic wire productio

  • Wire preparation before bunching, stranding and insulation

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is a small wire drawing machine with annealer used for?
It is used to draw copper wire into fine wire sizes and anneal the wire to produce soft copper wire for cable production and conductor manufacturing.
Which models are available?
The source specification lists XT22/24, XTD22/24 and XTD16 models.
What wire material can the machine process?
The listed specifications are for copper wire drawing and annealing.
What outlet wire sizes can be produced?
Depending on the model, the outlet copper wire range covers 0.10-0.32 mm, 0.15-0.60 mm or 0.30-0.80 mm.
What is the maximum mechanical speed?
The source specification lists a maximum mechanical speed of 2000 m/min.
What bobbins can be used?
The source image lists ABS, PVC bobbin, or PND300/400 bobbin options.
