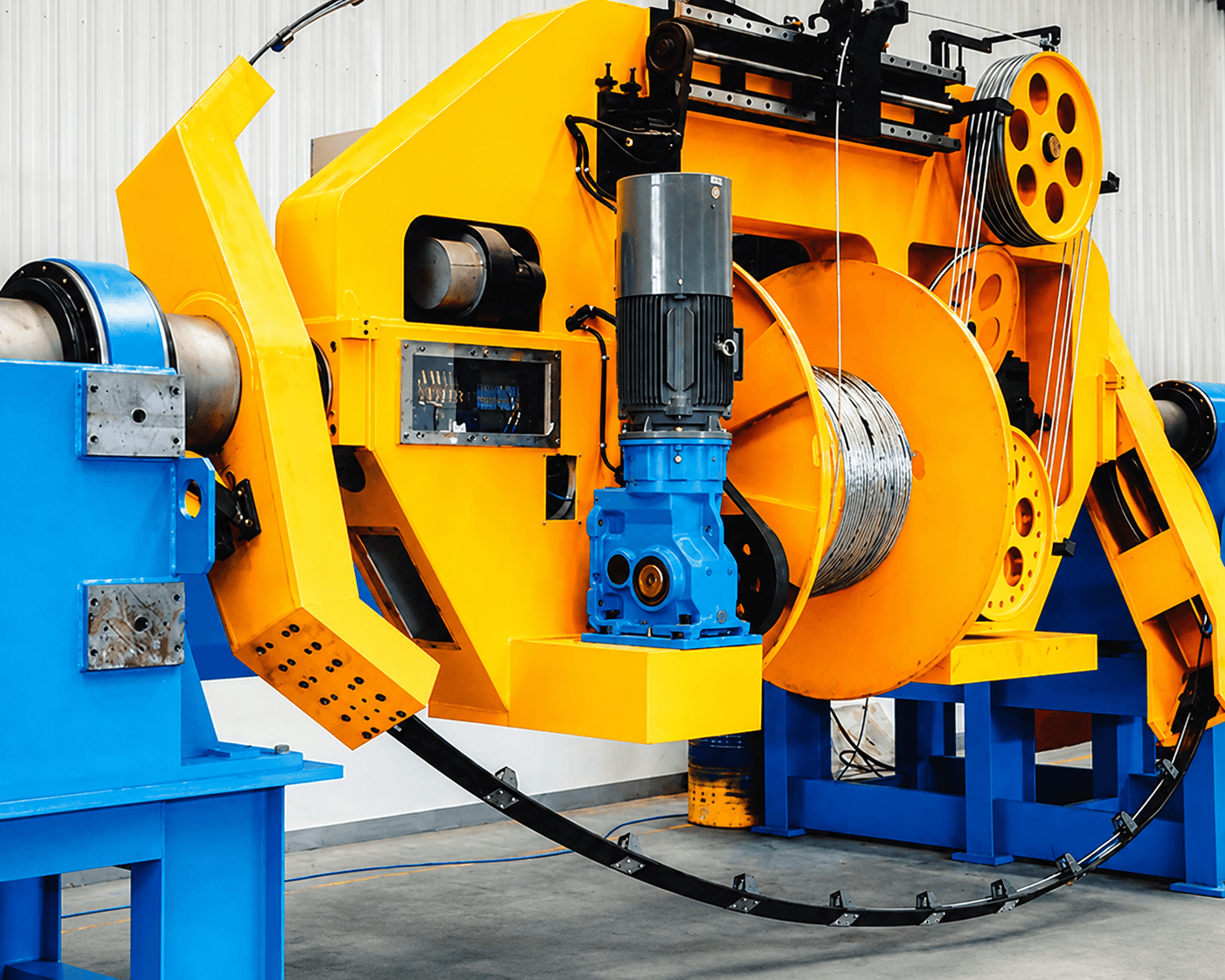

JSH Double Pitch Bunching Machine

A high-efficiency bunching solution for stranded conductors, designed for stable production, wide wire-size adaptability and reliable output in cable and conductor manufacturing.
Get a Quote
Company Profile

Overview

The JSH Double Pitch Bunching Machine is designed for conductor bunching and stranding applications in cable and wire manufacturing plants. It is suitable for processing a wide range of round single wires and can be configured for different conductor sizes according to production requirements.
With stable running performance, practical speed configurations and flexible line dimensions, the JSH series is an effective solution for manufacturers looking for reliable bunching performance and consistent finished conductor quality. It can be applied in production lines that require compact and non-compacted stranded conductors.

Product Advantages

Stable Production Performance

Designed for continuous bunching operation with reliable rotational stability and consistent conductor formation.

Wide Wire Size Compatibility

Suitable for different round single-wire specifications, helping manufacturers handle a broader production range.

Multiple Capacity Options

Available in several bobbin-size configurations to match different conductor cross-sections and output requirements.

Supports Compact and Non-Compact Conductors

Can be selected for production needs involving both compacted and non-compacted stranded conductors.

Practical Line Layout

The listed production line dimensions provide reference for plant planning and equipment arrangement.

Core Equipment

Bobbin Size (mm) Single Round Wire Size (mm) Max. Speed (rpm) Max. Conductor Cross-Section (mm²) Production Line L × W (m)
Compacted Conductor Non-Compacted Conductor
Ø1250 Ø1.0~Ø3.0 800 70 95 24×4
Ø1600 Ø1.5~Ø5.0 500 95 240 27×7
Ø2200 Ø1.5~Ø5.0 400 95 340 28×8

Applications

  • Stranded conductor production

  • Compact conductor production

  • Non-compacted conductor production

  • Cable core bunching

  • Power cable conductor manufacturing

  • Wire and cable processing lines

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is the JSH Double Pitch Bunching Machine used for?
It is used for bunching and stranding conductors in cable and wire manufacturing, especially where stable operation and flexible conductor sizing are required.
What wire size range can this machine handle?
According to the listed specifications, the machine can process round single-wire sizes from Ø1.0~Ø3.0 mm up to Ø1.5~Ø5.0 mm depending on the selected model.
Can it produce both compacted and non-compacted conductors?
Yes. The technical table includes maximum conductor cross-sections for both compacted and non-compacted conductors.
How do I choose the right model?
Selection should be based on your required conductor cross-section, single-wire size, desired production speed and available workshop space.
What are the typical installation space requirements?
The reference production line dimensions range from 24×4 m to 28×8 m depending on the model configuration.
Is this machine suitable for cable manufacturing plants?
Yes. It is suitable for wire and cable factories producing stranded conductors, cable cores and related conductor products.
