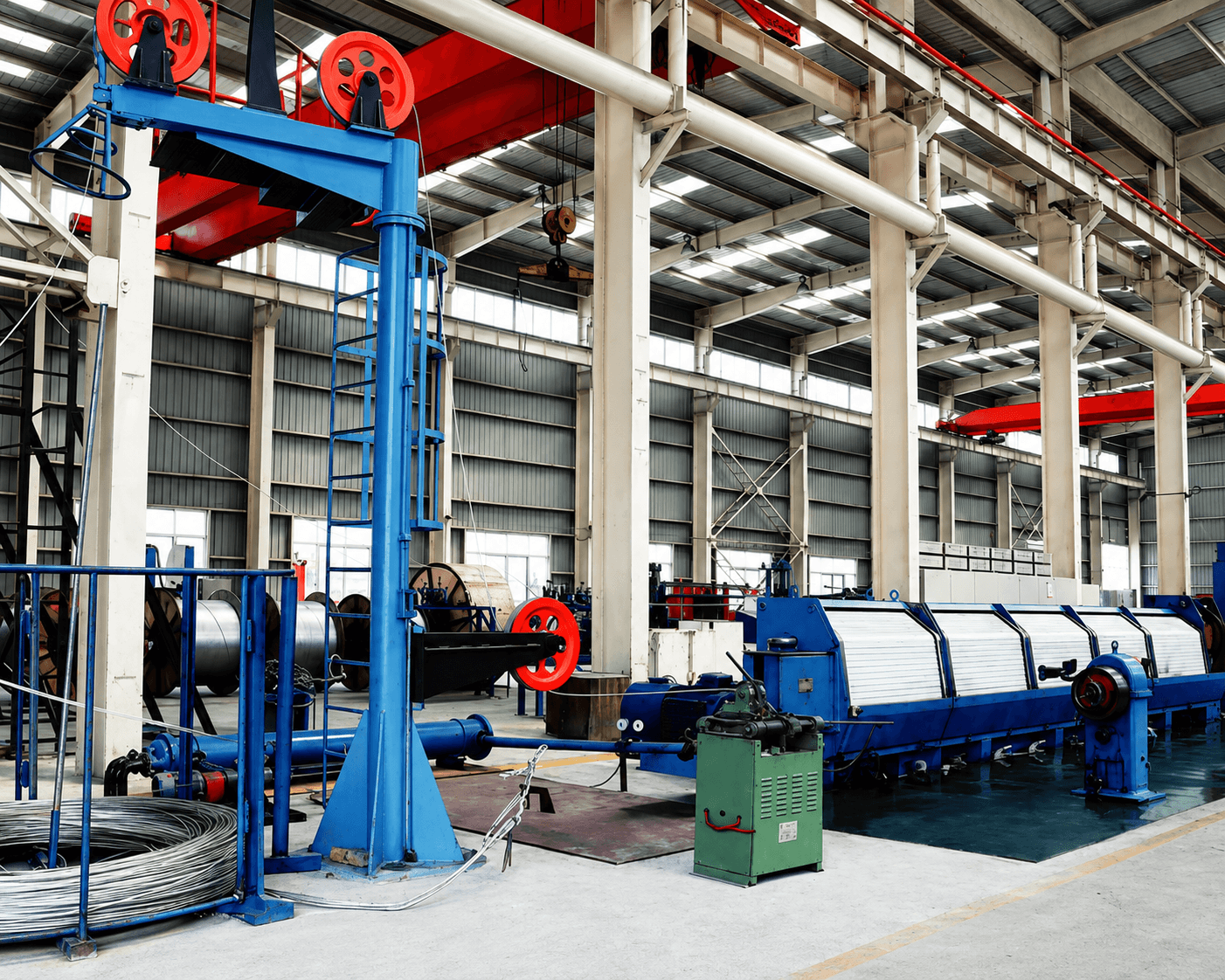

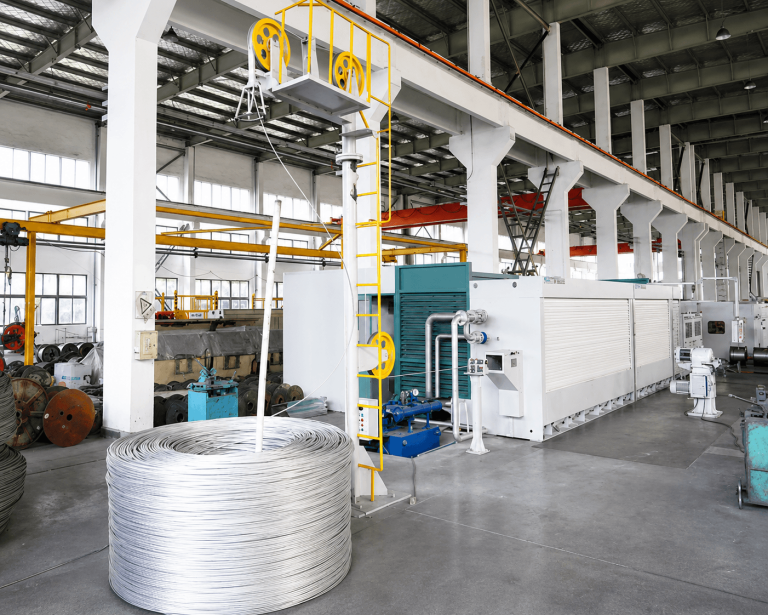

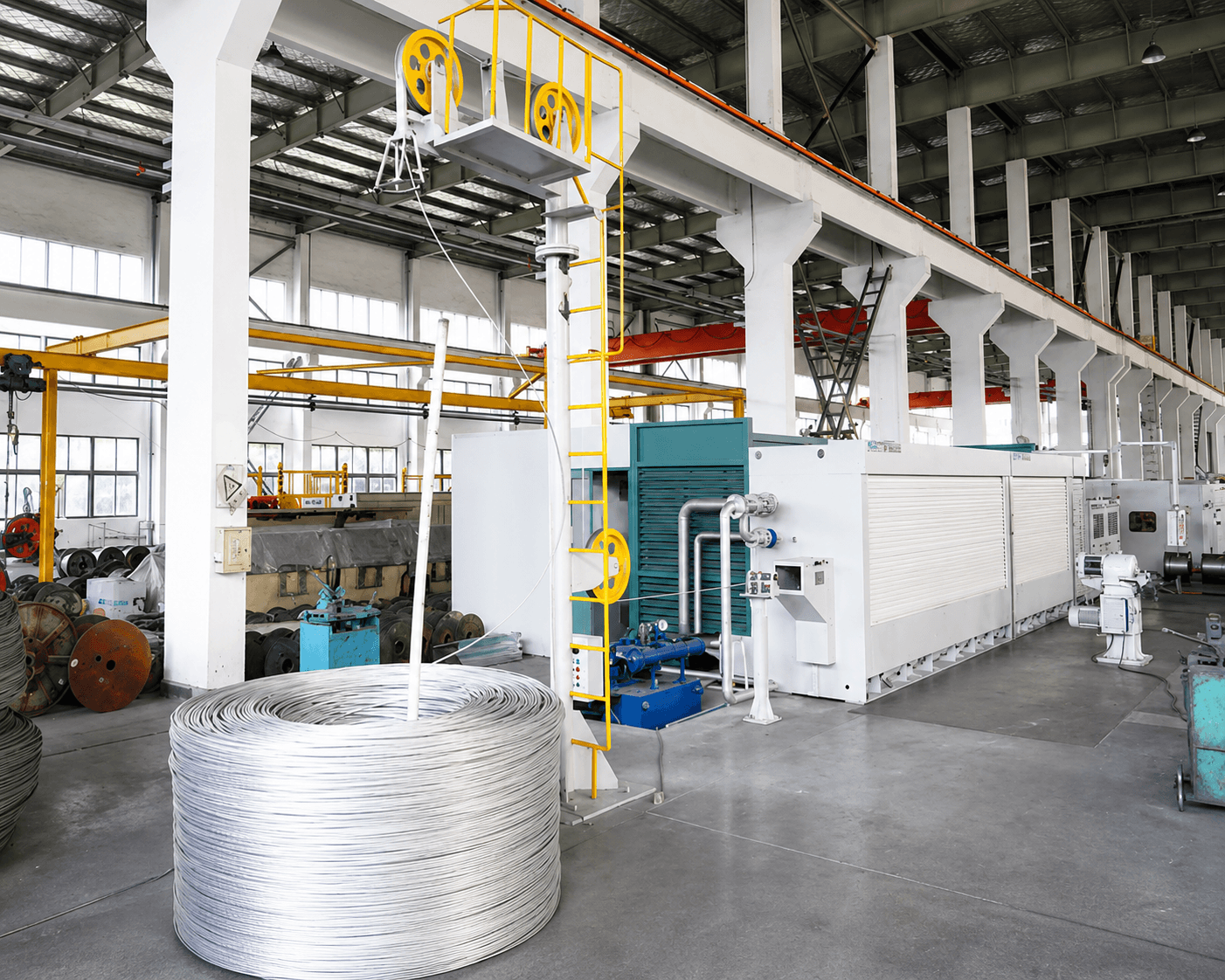

LFDL Φ450 Equal-Diameter Capstan Multi-Motor Aluminum & Aluminum Alloy Rod Breakdown Machine

Designed for drawing Φ9.5 mm aluminum or aluminum alloy rod into round wire or shaped wire with an equivalent cross-sectional area. The machine features independently driven drawing capstans and supports different take-up configurations for continuous industrial production.
Get a Quote
Company Profile

Overview

The LFDL Φ450 series is developed for aluminum and aluminum alloy wire manufacturing. Available with 9, 11 or 13 drawing passes, it covers different finished wire sizes and can be matched with dual-spool, single-spool or coiler take-up systems according to the production process.

Product Advantages

Independent Motor Drive

Each drawing capstan is separately driven for stable and coordinated operation.

Aluminum & Aluminum Alloy Processing

Suitable for both pure aluminum and aluminum alloy rod drawing.

Multiple Drawing Pass Options

Available in 9-pass, 11-pass and 13-pass configurations.

High Production Speed

Maximum line speed reaches up to 30 m/s for efficient continuous production.

Flexible Finished Wire Production

Suitable for round wire and shaped wire with an equivalent cross-sectional area.

Core Equipment

Parameter LFDT Φ450-9 LFDT Φ450-11 LFDT Φ450-13
Capstan Diameter Φ450 mm Φ450 mm Φ450 mm
Drawing Passes 9 11 13
Inlet Diameter Φ9.5 mm Φ9.5 mm Φ9.5 mm
Outlet Diameter – Aluminum Φ2.8–Φ4.5 mm Φ2.2–Φ4.5 mm Φ1.7–Φ4.5 mm
Outlet Diameter – Aluminum Alloy Φ3.0–Φ5.0 mm Φ2.5–Φ5.0 mm Φ1.7–Φ4.5 mm
Max. Line Speed 25 m/s 30 m/s 30 m/s
Production Line Size 29 × 6 m 31 × 6 m 32 × 6 m

Applications

  • Aluminum conductor manufacturing

  • Power cable manufacturing

  • Overhead conductor production

  • Round aluminum wire production

  • Aluminum alloy conductor production

  • Building wire production

  • Electrical cable manufacturing

  • Shaped aluminum wire production

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What raw material can this machine process?
It is designed for Φ9.5 mm aluminum rod and aluminum alloy rod.
What finished wire sizes can be produced?
Depending on the model and material, the outlet diameter ranges from approximately Φ1.7 mm to Φ5.0 mm.
Can it draw both aluminum and aluminum alloy?
Yes. The machine can be configured for both materials according to the required finished wire specification.
What is the maximum line speed?
The maximum production speed is up to 30 m/s, depending on the selected model.
Which take-up systems are available?

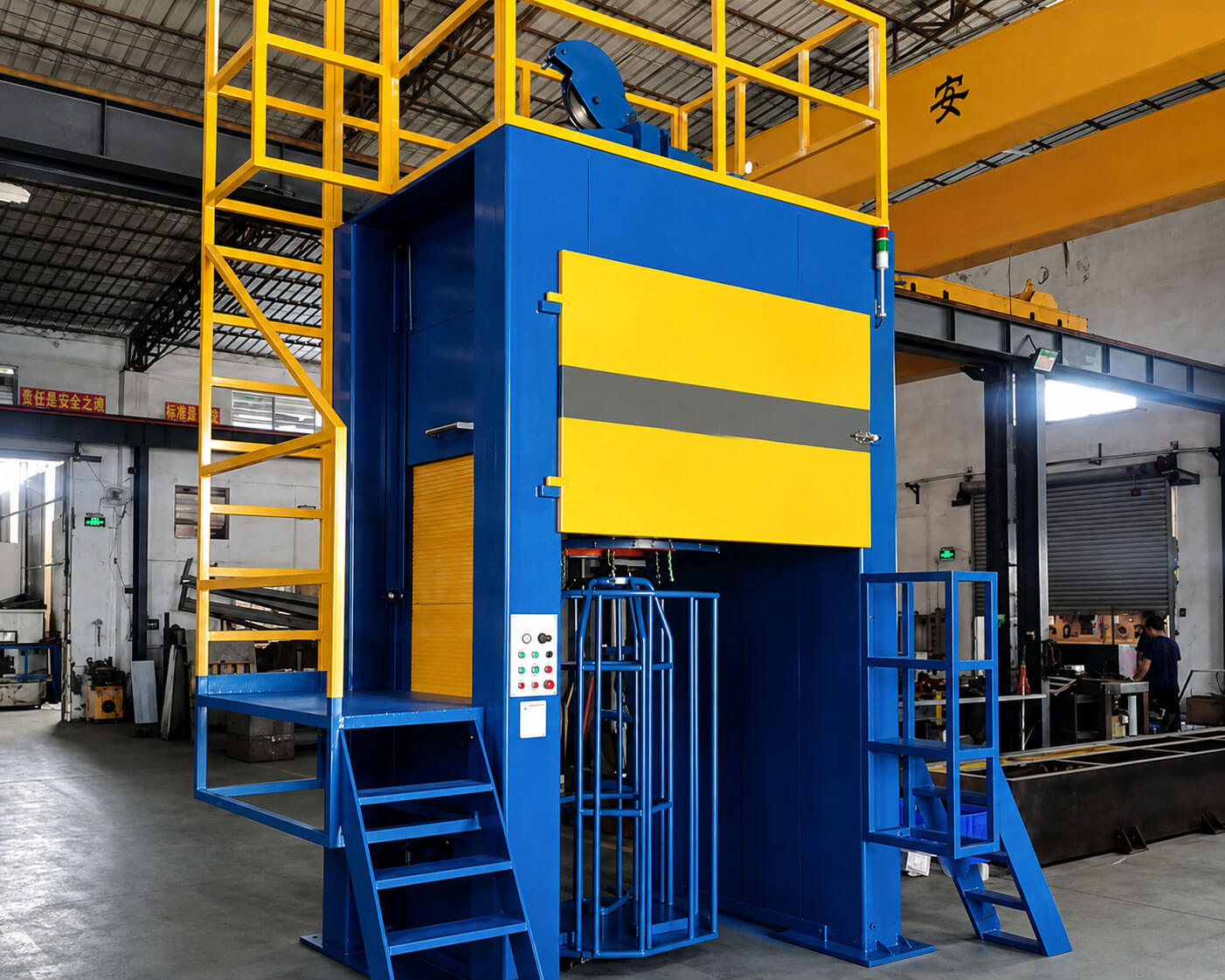

The line can work with dual-spool, single-spool or coiler take-up systems.
Can the machine produce shaped wire?
Yes. It can also produce shaped wire with an equivalent cross-sectional area.
