KRB Tangential Steel Tape Armoring Machine

A high-efficiency cable armoring machine designed for applying steel tape armor to power, control and other industrial cables, providing stable wrapping performance across different cable diameters and tape widths.
Get a Quote
Company Profile

Overview

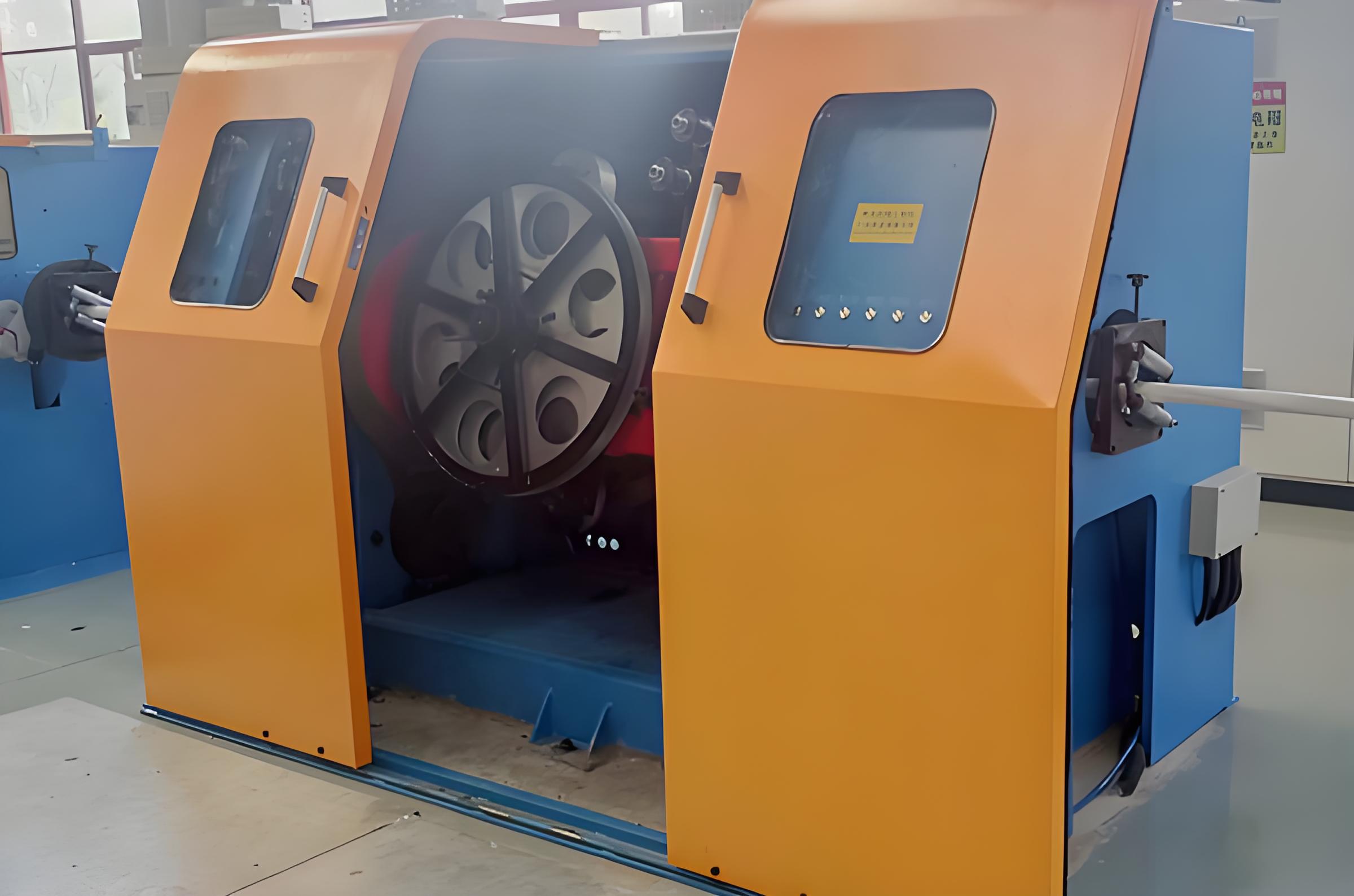

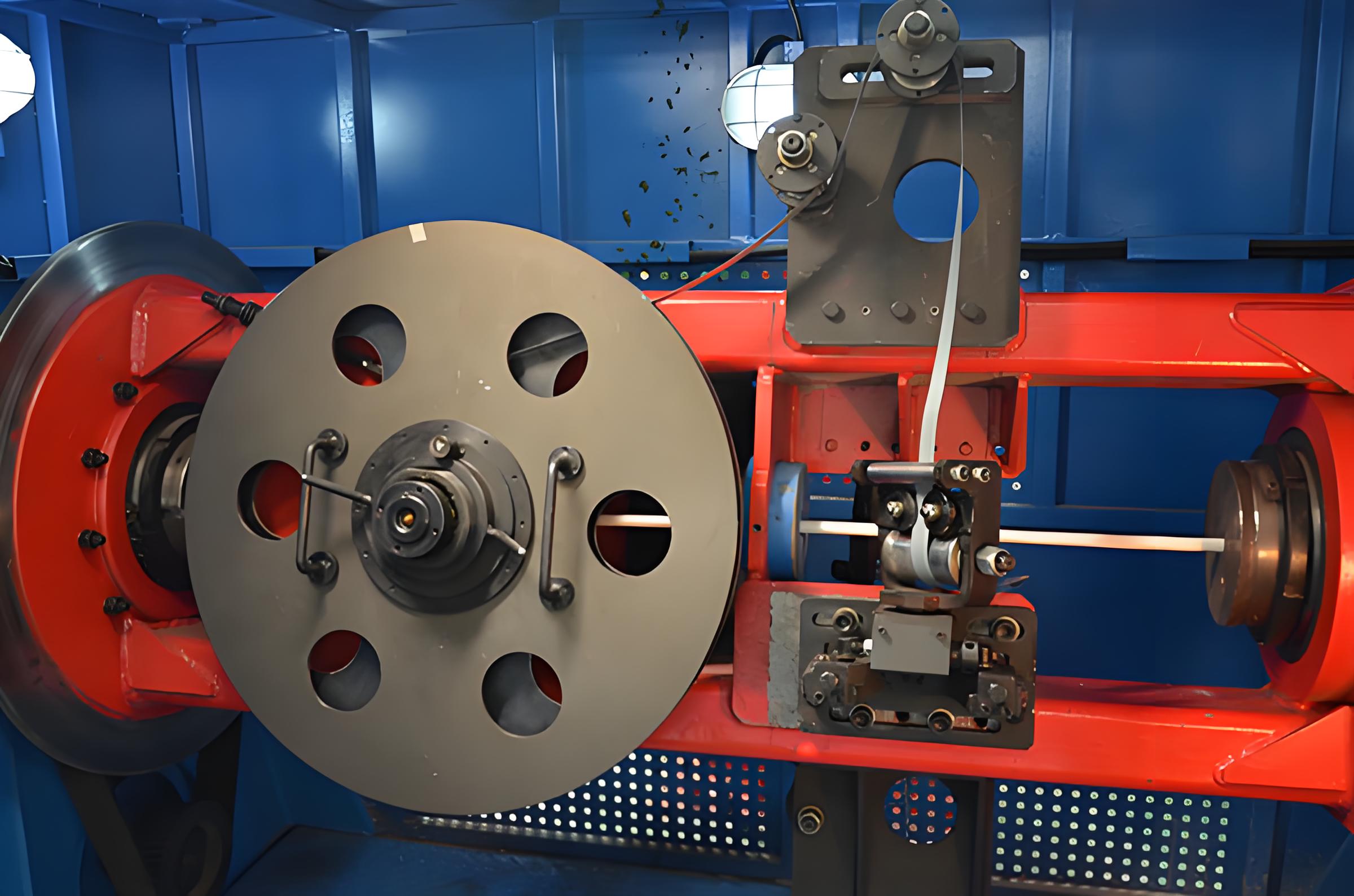

The KRB tangential steel tape armoring machine is developed for continuous steel tape armoring in cable manufacturing lines. It applies protective steel tape around the cable core to improve resistance to mechanical impact and external pressure during installation and service. With multiple tape reel configurations and working ranges, the machine can accommodate different cable diameters and steel tape widths while maintaining stable armoring quality and efficient production.

Product Advantages

Designed specifically for steel tape armoring of cable products requiring enhanced mechanical protection.

Multiple tape reel sizes are available to match different cable diameters and production requirements.

High rotating speed supports efficient continuous cable armoring and stable line productivity.

Compatible with steel tape widths from 15 mm to 60 mm depending on the selected configuration.

Suitable for cable outer diameters up to Ø150 mm according to the technical configuration shown below.

Core Equipment

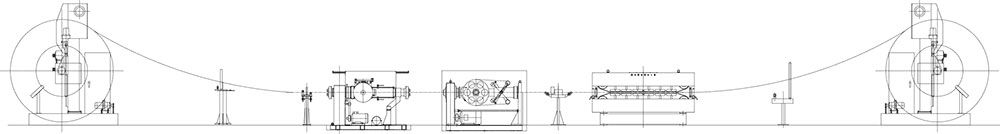

Tape Reel Size (mm) Steel Tape Width (mm) Maximum Rotating Speed (rpm) Maximum Cable Outer Diameter (mm) Production Line L × W (m)
Ø600 15~40 500 Ø90 28×6
Ø710 15~40 450 Ø120 30×7
Ø800 15~60 400 Ø150 30×7

Applications

  • Steel tape armored power cables

  • Control cables requiring additional mechanical protection

  • Communication and industrial cables with steel tape armor

  • Underground cable production

  • Infrastructure and construction cable manufacturing

  • Customized armored cable production lines for different cable diameters

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is the KRB steel tape armoring machine used for?
It is used to apply steel tape armor around cable cores, helping improve the cable’s mechanical protection for installation and service in demanding environments.
What steel tape widths can the machine process?
Depending on the selected reel configuration, the machine supports steel tape widths of 15~40 mm or 15~60 mm, as listed in the technical parameter table.
What is the maximum cable diameter supported?
The listed configurations cover maximum cable outer diameters from Ø90 mm to Ø150 mm. The appropriate configuration should be selected according to the finished cable specification.
Which reel sizes are available?
The technical table lists Ø600 mm, Ø710 mm and Ø800 mm tape reel configurations, with corresponding maximum rotating speeds of 500 rpm, 450 rpm and 400 rpm.
What types of cable can be armored on this machine?
Typical products include power cables, control cables, communication cables and other industrial cables that use steel tape as a protective armor layer.
What information is needed before selecting a machine?
Please provide cable type, cable outer diameter range, steel tape width, required production speed, reel specification, target capacity and available workshop layout so the line can be configured correctly.
