Intermediate Wire Drawing Machine

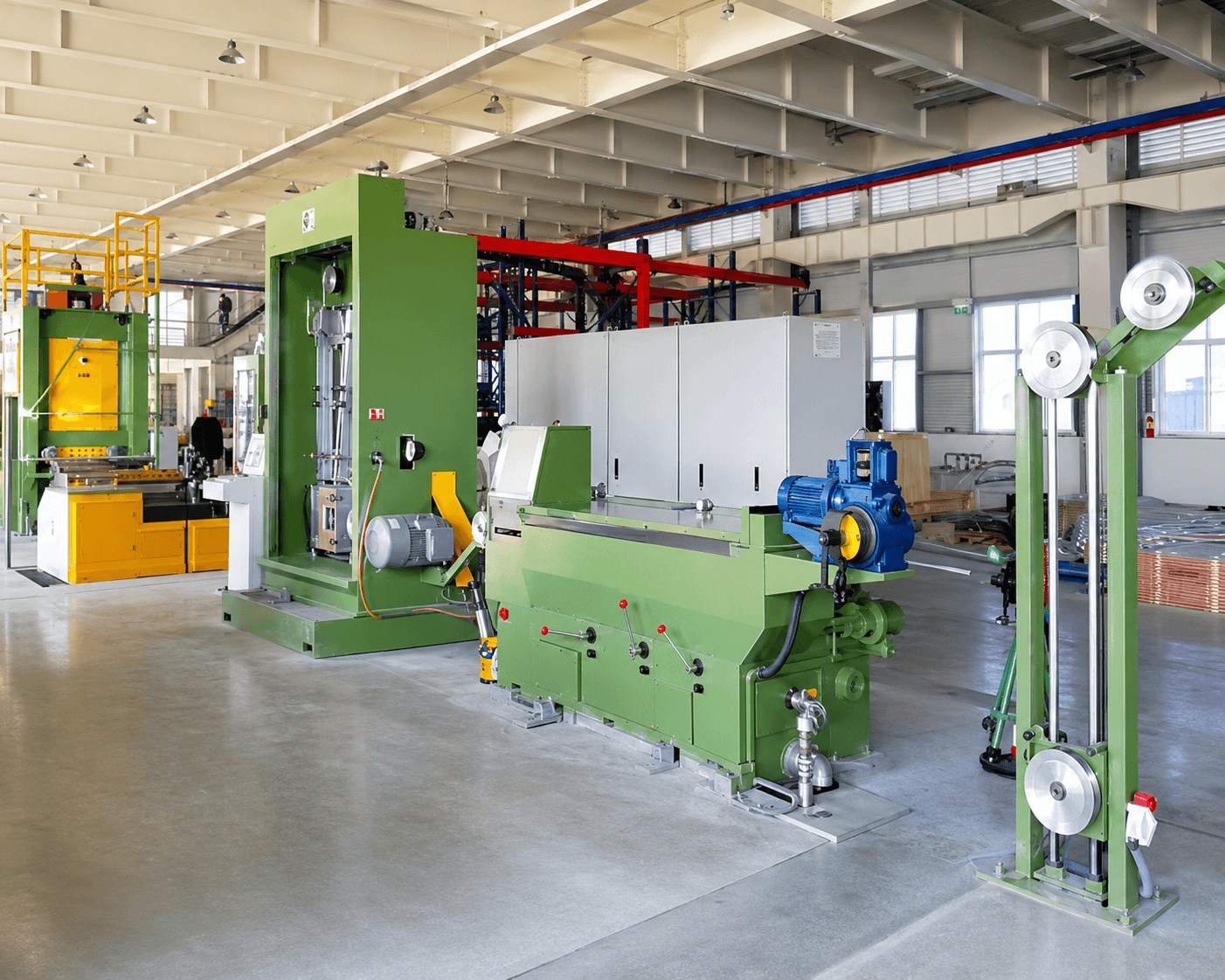

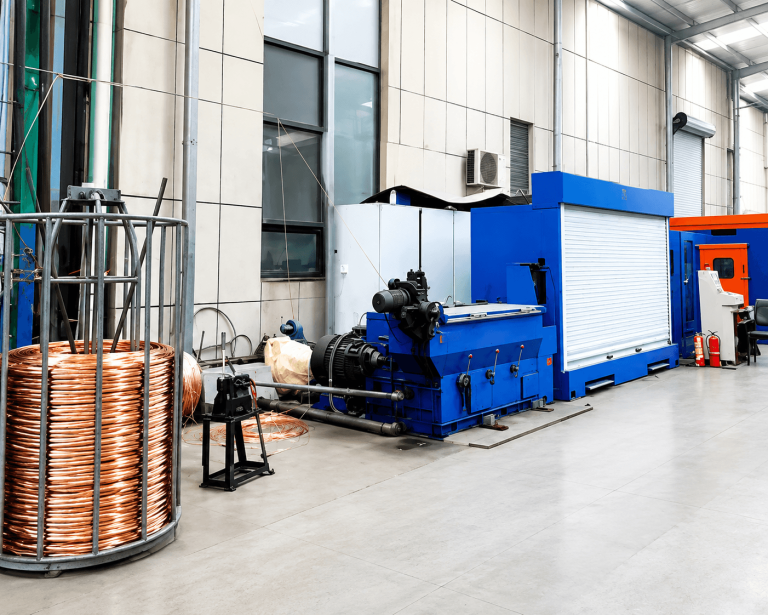

The Intermediate Wire Drawing Machine is designed for drawing copper wire and aluminum wire from larger inlet diameters to medium wire sizes used in cable production and conductor manufacturing. The line can be matched with an intermediate wire drawing annealer and different take-up systems to support hard wire, soft annealed wire and continuous production requirements.
Get a Quote
Company Profile

An Experienced Team,
Built to Deliver
Overseas.

This intermediate wire drawing machine is suitable for wire and cable factories that need stable wire reduction between rod breakdown and fine wire drawing or stranding processes. According to the source specification, the Z17 and Z17B models cover copper outlet wire from 0.40-2.0 mm and aluminum outlet wire from 0.60-2.50 mm, while the Z17-280 model is designed for copper wire from 0.80-2.76 mm.

The production line can be configured with T1000, T2000 or T3000 annealer models, and can use single spooler, double spooler or coiler take-up systems. This makes the equipment suitable for copper wire drawing, aluminum wire drawing, soft annealed wire production and cable conductor preparation.

Product Advantages

Multiple model choices

Z17, Z17B and Z17-280 models provide different wire ranges, capstan wheel diameters and elongation structures for different production requirements.

Suitable for copper and aluminum wire

The equipment can be selected for copper wire and aluminum wire drawing, supporting cable factories with flexible material processing needs.

High-speed intermediate drawing

The source specification lists a maximum mechanical drawing speed of 1800 m/min, supporting efficient medium wire production.

Optional online annealing

T1000, T2000 and T3000 annealer models are available for producing soft annealed wire within different production ranges.

Flexible take-up configuration

Single spooler, double spooler and coiler options allow the production line to match different bobbin, basket and workshop workflow requirements.

What the Line Includes

The system is delivered as a sequence of coordinated stations, each built and tested in-house before shipment.

  • Multi‑Model Intermediate Drawing Platform

    Z17, Z17B and Z17‑280 models with different capstan wheel and elongation parameters, match varied wire‑size and throughput demands.

  • Copper & Aluminum Wire Compatibility

    Supports both copper and aluminum intermediate drawing, flexible for multi‑material cable conductor production workflows.

  • High‑Speed Drawing Capacity

    Max mechanical speed reaches 1800 m/min, delivering high‑efficiency continuous medium‑wire reduction for large‑volume workshops.

  • Optional T‑Series Online Annealer

    T1000 / T2000 / T3000 annealers available, realize inline softening to produce qualified soft annealed copper wire.

  • Diversified Take‑up Selections

    Choose S630 single spooler, SS630 double spooler or S650 coiler, adapt to different bobbin / basket packages and downstream handling.

  • Reliable 17‑Die Drawing Structure

    17‑die drawing layout with 250 mm / 280 mm capstan wheel options, stable elongation control for consistent wire dimension & surface finish.

  • Complete Cooling‑lubrication System

    Optimized lubrication and cooling extends die service life, guarantees stable drawing performance under long‑time high‑speed operation.

  • Project‑Oriented Custom Configuration

    Adjust machine model, annealer unit, take‑up style, electric components and layout according to local voltage and workshop conditions.

Technical Specifications

Intermediate Wire Drawing Machine Specifications

Parameter Z17 Z17B Z17-280
Inlet Wire Diameter Max 3.50 mm (Cu) / Max 4.50 mm (Al) Max 3.50 mm (Cu) / Max 4.50 mm (Al) Max 3.50 mm (Cu) / Max 4.50 mm (Al)
Outlet Wire Diameter Cu: 0.40-2.0 mm / Al: 0.60-2.50 mm Cu: 0.40-2.0 mm / Al: 0.60-2.50 mm Cu: 0.80-2.76 mm
Mechanical Speed Max 1800 m/min Max 1800 m/min Max 1800 m/min
Maximum Number of Dies 17 17 17
Drawing Cone Diameter Max 250 mm Max 250 mm Max 250 mm
Capstan Wheel Diameter 250 mm 250 mm 280 mm
Mechanical Elongation Drawing part 25%; final die 18.6% Drawing part 18.18%; final die 13.38% Drawing part 25%; final die 18.6%
Main Motor Power Cu: 55 kW / Al: 45 kW Cu: 55 kW / Al: 45 kW Cu: 75 kW

Intermediate Wire Drawing Machine Annealer Specifications

Parameter T1000 T2000 T3000
Production Range 0.40-1.20 mm 0.40-1.60 / 0.40-2.0 mm 0.80-2.76 mm
Mechanical Speed Max 1500 m/min Max 1500 m/min Max 1500 m/min
Annealing Current Max 1000 A DC Max 2000 A DC Max 3000 A DC
Annealing Voltage Max 55 V DC Max 55 V DC Max 55 V DC
Annealing Capacity 84 KVA 173/195 KVA 220 KVA

Applications

  • Copper intermediate wire drawing for cable production

  • Soft annealed copper wire production

  • Building wire and power cable manufacturing

  • Wire preparation before fine drawing, bunching, stranding or insulation

  • Non-ferrous metal wire processing plants

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is an intermediate wire drawing machine used for?
It is used to draw copper or aluminum wire from larger diameters to medium wire sizes before fine drawing, bunching, stranding or cable insulation.
Which models are available?
The source specification lists Z17, Z17B and Z17-280 intermediate wire drawing machine models.
What materials can the machine process?
The machine can be selected for copper wire and aluminum wire drawing. Actual material range depends on the selected model and final wire size.
Can the line include an annealer?
Yes. T1000, T2000 and T3000 intermediate wire drawing machine annealers are listed for different production ranges.
What take-up systems are available?
The line can be matched with S630 single spooler, SS630 double spooler or S650 coiler according to the required package type.
What is the maximum drawing speed?
The drawing machine specification lists a maximum mechanical speed of 1800 m/min. The annealer specification lists a maximum mechanical speed of 1500 m/min.
