Fine Wire Drawing Machine

The Fine Wire Drawing Machine is designed for drawing copper wire and aluminum wire into smaller wire diameters for cable production, electrical conductor manufacturing and wire processing applications. The machine provides multiple model options, stable drawing performance and practical bobbin take-up for continuous factory production.
Get a Quote
Company Profile

An Experienced Team,
Built to Deliver
Overseas.

This small wire drawing machine, also called a fine wire drawing machine, is used to reduce copper or aluminum wire through a multi-die drawing process. It is suitable for wire and cable factories that need reliable fine wire output before bunching, stranding, insulation or other downstream processes.

According to the source specification, the machine series includes X22, X24, XD22, X16 and XD16 models. The available configurations cover different inlet diameters, outlet wire ranges, die quantities, main motor power and take-up motor power, allowing buyers to select the appropriate model according to material, final wire size and production requirements.

Product Advantages

Designed for copper and aluminum fine wire

The machine can be selected for copper wire and aluminum wire drawing within the listed inlet and outlet diameter ranges.

Multiple model options

X22, X24, XD22, X16 and XD16 models cover different production ranges, die quantities and motor configurations.

High-speed drawing performance

The X22 and X24 models list mechanical speed up to 2400 m/min, while XD22, X16 and XD16 list speed up to 2000 m/min.

Stable fine wire size range

The machine can produce fine copper wire down to 0.10 mm and aluminum wire down to 0.15 mm depending on the selected model.

Practical bobbin take-up

The source specification lists PND300/400 bobbin compatibility for easy collection and downstream handling.

Core Equipment

Technical Specifications - X22 / X24 / XD22


Parameter X22 X24 XD22
Inlet Wire Diameter Max 1.20 mm (Cu) / Max 1.60 mm (Al) Max 1.20 mm (Cu) / Max 1.60 mm (Al) Max 1.60 mm (Cu) / Max 2.0 mm (Al)
Outlet Wire Diameter Cu: 0.10-0.32 mm / Al: 0.15-0.60 mm Cu: 0.10-0.32 mm / Al: 0.15-0.60 mm Cu: 0.15-0.60 mm / Al: 0.30-0.80 mm
Mechanical Speed Max 2400 m/min Max 2400 m/min Max 2000 m/min
Maximum Number of Dies 22 24 22

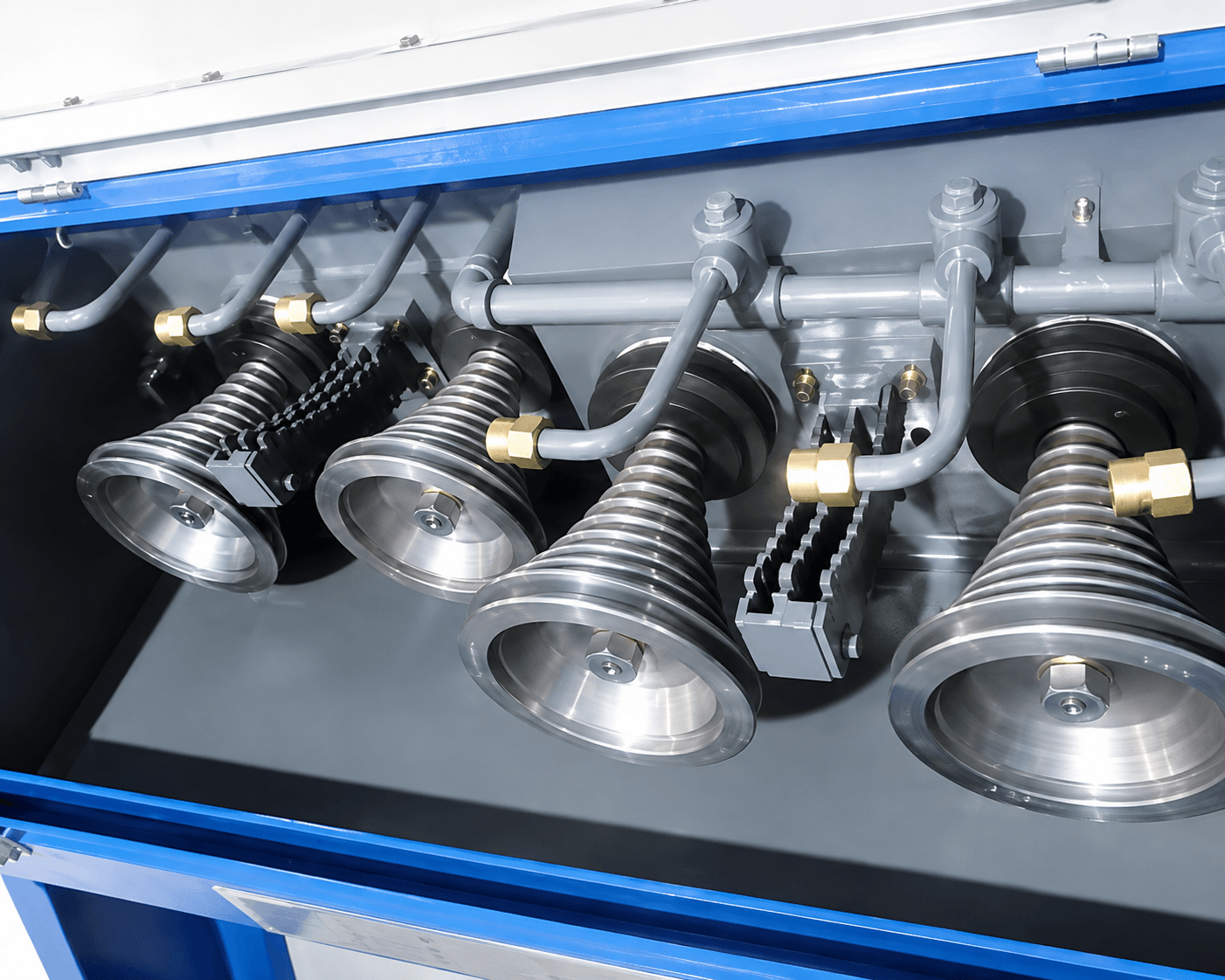

Drawing Cone Diameter 190 mm 190 mm 190 mm
Mechanical Elongation Drawing part 17.6%; final die 15% Drawing part 13%; final die 8% Not separately specified in source image
Main Motor Power 11 kW 11 kW 15 kW
Take-up Motor Power 3 kW 3 kW 3 kW
Bobbin Size PND300/400 bobbin PND300/400 bobbin PND300/400 bobbin



Technical Specifications - X16 / XD16


Parameter X16 XD16
Inlet Wire Diameter Max 1.60 mm (Cu) / Max 2.0 mm (Al) Max 2.0 mm (Cu) / Max 2.60 mm (Al)
Outlet Wire Diameter Cu: 0.15-0.60 mm / Al: 0.30-0.80 mm Cu: 0.25-0.80 mm / Al: 0.35-1.20 mm
Mechanical Speed Max 2000 m/min Max 2000 m/min
Maximum Number of Dies 16 16
Drawing Cone Diameter 190 mm 190 mm
Mechanical Elongation Drawing part 17.6%; final die 15% Drawing part 17.6%; final die 15%
Main Motor Power 15 kW 22 kW
Take-up Motor Power 3 kW 5.5 kW
Bobbin Size PND300/400 bobbin PND300/400 bobbin

Applications

  • Copper fine wire drawing for cable production

  • Aluminum fine wire drawing for electrical conductor manufacturing

  • Building wire and electronic wire production

  • Wire preparation before bunching, stranding and insulation

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What is a fine wire drawing machine used for?
It is used to draw copper or aluminum wire into smaller wire diameters for cable production, conductor manufacturing and electrical wire processing.
Which models are available?
The source specification lists X22, X24, XD22, X16 and XD16 models.
What materials can the machine process?
The listed specifications cover copper wire and aluminum wire drawing.
What outlet wire sizes can be produced?
Depending on the selected model, the machine can produce copper wire from 0.10-0.80 mm and aluminum wire from 0.15-1.20 mm.
What is the maximum mechanical speed?
The source specification lists maximum mechanical speed up to 2400 m/min for X22 and X24, and up to 2000 m/min for XD22, X16 and XD16.
What bobbins can be used?
The source image lists PND300/400 bobbin compatibility.
Can the machine be customized?
Yes. Model, wire range, bobbin type, electrical configuration, voltage and line layout can be customized according to production requirements.
What information is needed for quotation?
Please provide wire material, inlet wire diameter, target outlet diameter, required production speed or output, bobbin type, voltage and workshop layout.
Start a project

Tell Us Your Target. We'll Design the Line.

Share your capacity, raw material and site conditions — we'll come back with a process route, equipment selection and a turnkey path to production.

Email Our Team View a Project
Address

No.310–311 National Road, Quanshan District, Xuzhou City, China

Related Machines

Often Delivered Together

Explore More Products
Wire Stranding Machine Featured Image
Wire Stranding Machine Drawing Lines

This wire stranding machine is designed for bunching fine copper wires into flexible conductors for wire and cable production. With JR500, JR630, JR800 and JR1000 models available, the machine supports different bobbin sizes, conductor cross-sections and production speeds for cable factories and conductor manufacturers.
Small Wire Drawing Machine with Annealer Featured Image
Small Wire Drawing Machine with Annealer Drawing Lines

The Small Wire Drawing Machine with Annealer is designed for drawing copper wire into fine wire sizes and producing soft annealed copper wire for cable production and electrical conductor manufacturing. The machine supports high-speed single-wire drawing, integrated annealing capacity and common bobbin take-up options for wire and cable factories.
Intermediate Wire Drawing Machine Featured Image
Intermediate Wire Drawing Machine Drawing Lines

The Intermediate Wire Drawing Machine is designed for drawing copper wire and aluminum wire from larger inlet diameters to medium wire sizes used in cable production and conductor manufacturing. The line can be matched with an intermediate wire drawing annealer and different take-up systems to support hard wire, soft annealed wire and continuous production requirements.
Double Wire Fine Wire Drawing Machine Featured Image
Double Wire Fine Wire Drawing Machine Drawing Lines

The Double Wire Fine Wire Drawing Machine is designed for fine drawing of copper wire and aluminum wire in cable production, conductor manufacturing and electrical wire processing. The machine supports double-wire operation, high-speed drawing up to 2000 m/min, and the XT22-2 model can be configured with annealing for soft copper wire production.
Double Head Intermediate Wire Drawing Machine Featured Image
Double Head Intermediate Wire Drawing Machine Drawing Lines

The Double Head Intermediate Wire Drawing Machine is designed for drawing copper wire from larger inlet sizes to medium wire diameters used in cable production and conductor manufacturing. Based on the PM200 series specification, the machine supports stable two-wire drawing, adjustable mechanical elongation and optional online annealing for soft copper wire production.

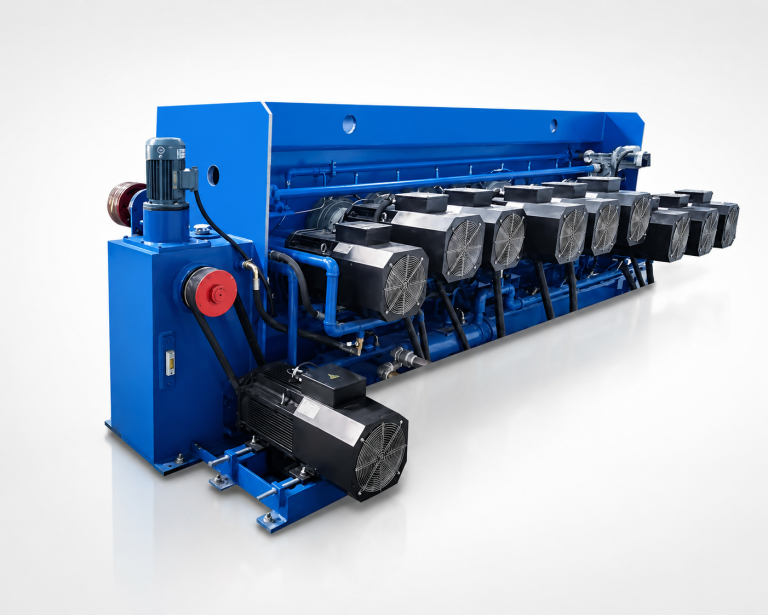

Individual Motor Type Intermediate Drawing Machine Featured Image
