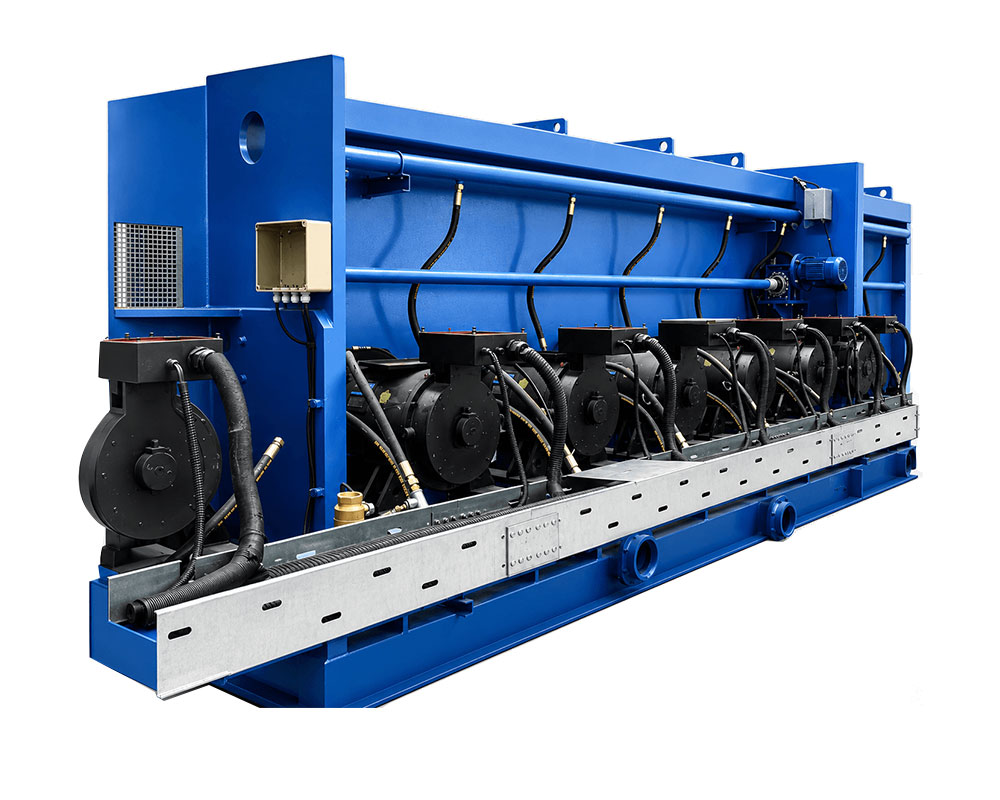

Double Wire Individual Motor Type Rod Breakdown Machine

The Double Wire Individual Motor Type Rod Breakdown Machine is designed for high-efficiency drawing of copper, aluminum and aluminum alloy rods into finished wire for cable and conductor production. With double-wire processing, individual motor drive, adjustable mechanical elongation, optional T8000-2 annealer and flexible take-up systems, it helps wire and cable factories improve output while maintaining stable wire quality.
Get a Quote
Company Profile

An Experienced Team,
Built to Deliver
Overseas.

The Double Wire Individual Motor Type Rod Breakdown Machine is designed for high-efficiency drawing of copper, aluminum and aluminum alloy rods into finished wire for cable and conductor production. With double-wire processing, individual motor drive, adjustable mechanical elongation, optional T8000-2 annealer and flexible take-up systems, it helps wire and cable factories improve output while maintaining stable wire quality.

Product Advantages

Double-Wire Production for Higher Output

The double-head design supports two-wire drawing, helping factories increase production capacity while using one integrated drawing line.

Individual Motor Drive

Each drawing section uses an independent motor drive structure, improving speed coordination, drawing stability and flexible process control.

Suitable for Multiple Conductive Materials

The line can process copper, aluminum and aluminum alloy wire, making it suitable for diversified cable and conductor production.

Optional T8000-2 Online Annealer

The annealing system supports online softening for copper and aluminum wire, improving wire ductility and meeting downstream cable production requirements.

Flexible Take-Up Configuration

S630 single spooler, SS630 double spooler and S800 coiler options allow customers to match different bobbin, basket and coiling requirements.

Practical for Industrial Cable Plants

The machine is suitable for continuous production of copper wire, aluminum wire and aluminum alloy conductor wire used in power cables, building wires and electrical conductors.

Applications

  • Copper wire drawing

  • Aluminum wire drawing

  • Aluminum alloy wire production

  • Power cable manufacturing

  • Electrical conductor manufacturing

  • Building wire production

  • Wire and cable factories

  • Non-ferrous metal wire processing plants

Technical Specifications

Double Wire Rod Breakdown Machine

Item

PM450-9-2

PM450-11-2

PM450-13-2

Inlet Diameter

Max 8.0 mm Cu / Max 9.50 mm Al / Max 9.50 mm Al Alloy

Same

Same

Outlet Diameter

Cu: 1.20-4.50 mm / Al: 1.70-5.0 mm / Al Alloy: 2.2-4.50 mm

Same

Same

Mechanical Speed

Max 1800-1200 m/min

Max 1800-1200 m/min

Max 1800-1200 m/min

Max. Number of Dies

9

11

13

Drawing Cone Diameter

450 mm

450 mm

450 mm

Capstan Wheel Diameter

450 mm

450 mm

450 mm

Mechanical Elongation Rate

Adjustable

Adjustable

Adjustable

Servo Motor Power

Cu: 75-90 kW / Al, Al Alloy: 55-75 kW

Same

Same

T8000-2 Annealer

Item

Specification

Production Range

1.20-3.50 mm / 1.20-4.50 mm

Mechanical Speed

Max 1500 m/min

Annealing Current

Max 8000A AC

Annealing Voltage

Max 53V AC

Annealing Capacity

568 KVA / 610 KVA

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What materials can this double wire rod breakdown machine process?
It can process copper, aluminum and aluminum alloy rods.
What models are available?
The available models include PM450-9-2, PM450-11-2 and PM450-13-2, with 9, 11 and 13 dies.
What is the benefit of the double-head design?
The double-head design allows two wires to be drawn at the same time, helping improve production efficiency for cable and conductor factories.
Can the machine be equipped with an annealer?
Yes. The T8000-2 annealer can be configured for online annealing according to wire material and production requirements.
What take-up options are available?
The line can be matched with S630 single spooler, SS630 double spooler or S800 coiler.
Can the configuration be customized?
Yes. The machine model, die number, annealer, take-up type and production layout can be selected according to wire diameter, material and factory requirements.
