The Gear Type Rod Breakdown Machine is designed for drawing copper, aluminum and aluminum alloy rods into finished wire for cable and conductor production. With a traditional gear transmission structure, stable high-speed drawing performance, optional online annealer and flexible take-up systems, it provides a practical solution for wire and cable manufacturing plants.
The Gear Type Rod Breakdown Machine is designed for drawing copper, aluminum and aluminum alloy rods into finished wire for cable and conductor production. With a traditional gear transmission structure, stable high-speed drawing performance, optional online annealer and flexible take-up systems, it provides a practical solution for wire and cable manufacturing plants.
Cables Product Line

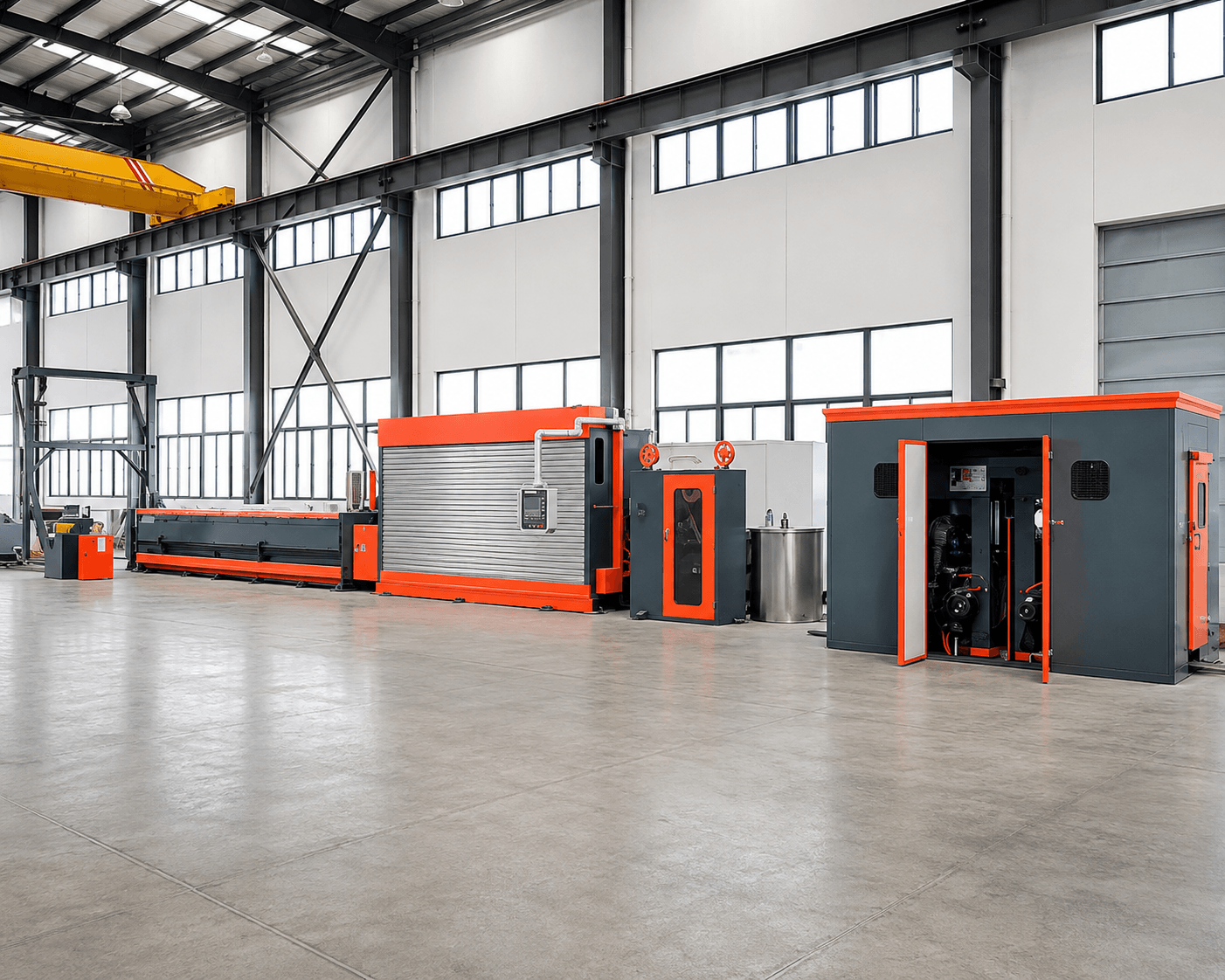

Gear Type Rod Breakdown Machine (Double Head)

The Gear Type Rod Breakdown Machine is designed for drawing copper, aluminum and aluminum alloy rods into finished wire for cable and conductor production. With a traditional gear transmission structure, stable high-speed drawing performance, optional online annealer and flexible take-up systems, it provides a practical solution for wire and cable manufacturing plants.
Get a Quote
Company Profile

An Experienced Team,
Built to Deliver
Overseas.

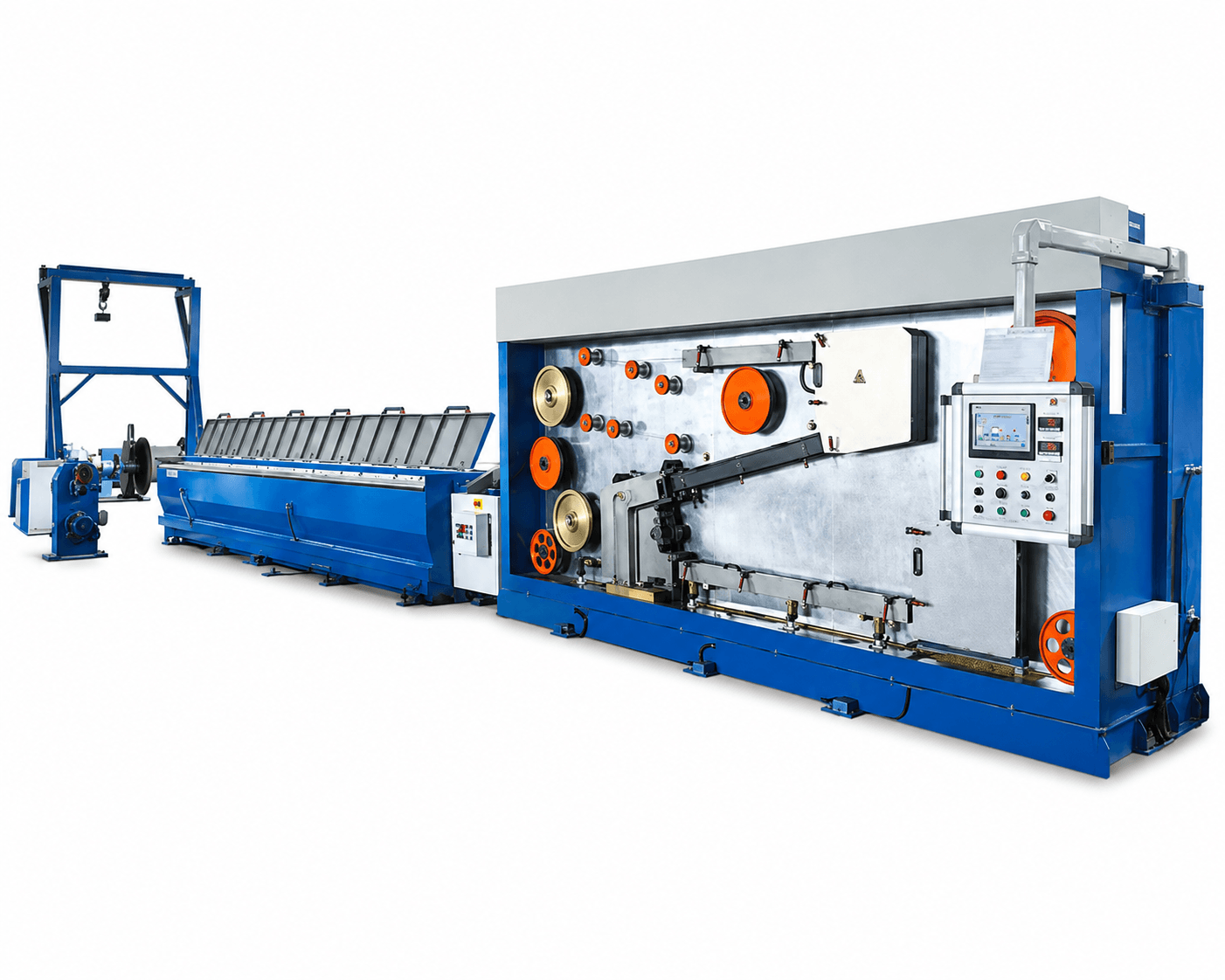

This gear type large wire drawing machine is used for reducing copper rod, aluminum rod and aluminum alloy rod into different finished wire diameters. It is suitable for power cable, building wire, electrical conductor and non-ferrous metal wire processing applications.

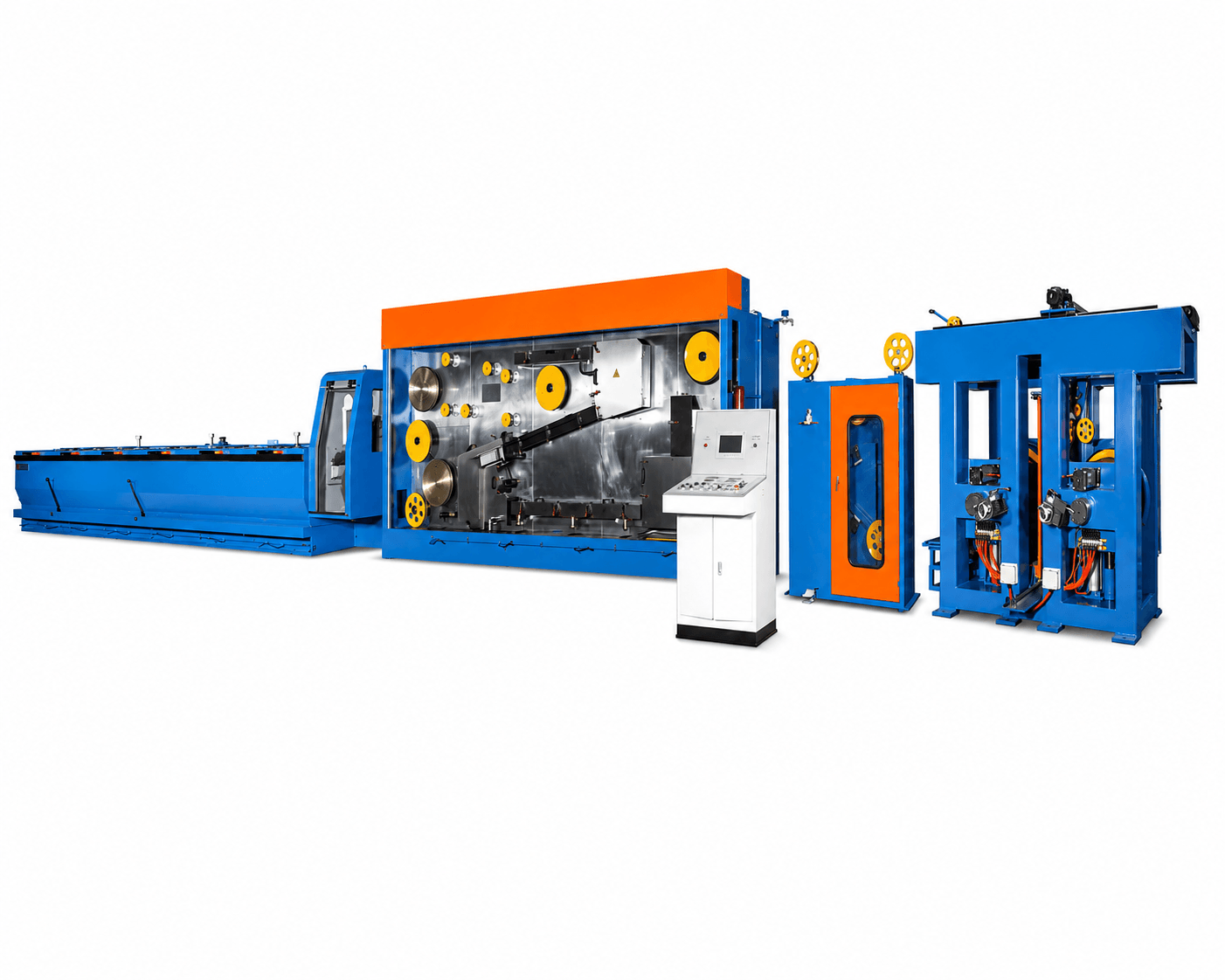

According to the source image, the available reference configurations include D9, D11 and D13 models with 9, 11 and 13 dies. The production line can be matched with a T5000 annealer, S630 single spooler, SS630 double spooler or S800 coiler according to material type, finished wire diameter and take-up requirements.

Product Advantages

Traditional Gear Transmission Structure

The gear-driven design provides a practical and proven structure for rod breakdown drawing, suitable for continuous production in cable and conductor factories.

Suitable for Copper, Aluminum and Aluminum Alloy

The machine can process copper wire, aluminum wire and aluminum alloy conductor wire, supporting diversified production needs.

Multiple Die Configurations

D9, D11 and D13 configurations are available with 9, 11 and 13 dies, allowing customers to select the right drawing setup according to final wire diameter.

Adjustable Mechanical Elongation

The mechanical elongation range supports copper/aluminum and aluminum alloy drawing requirements, helping maintain stable wire reduction across different materials.

Optional Online Annealer

The T5000 annealer can be added for online annealing, improving wire softness and supporting downstream cable processing.

Flexible Take-Up Options

The line can be equipped with S630 single spooler, SS630 double spooler or S800 coiler for different bobbin, basket and coiling requirements.

Technical Specifications

Item

D9

D11

D13

Inlet Diameter

Max 8.0 mm Cu / Max 9.50 mm Al / Max 9.50 mm Al Alloy

Same

Same

Outlet Diameter

Cu: 1.20-4.50 mm / Al: 1.70-5.0 mm / Al Alloy: 2.2-4.50 mm

Same

Same

Mechanical Speed

Max 1800-1200 m/min

Max 1800-1200 m/min

Max 1800-1200 m/min

Max. Number of Dies

9

11

13

Drawing Cone Diameter

500 & 400 / 450 mm

500 & 400 / 450 mm

500 & 400 / 450 mm

Capstan Wheel Diameter

400 / 450 mm

400 / 450 mm

400 / 450 mm

Mechanical Elongation

Cu/Al: 8%-45%; Al Alloy: 8%-28%

Same

Same

Main Motor Power

Cu: 185 kW / Al: 160 kW

Same

Same

Final Capstan Motor Power

Cu: 55 kW / Al: 37 kW

Same

Same

Applications

  • Copper wire drawing

  • Aluminum wire drawing

  • Aluminum alloy wire production

  • Power cable manufacturing

  • Electrical conductor manufacturing

  • Building wire production

  • Wire and cable factories

  • Non-ferrous metal wire processing plants

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What materials can this double wire rod breakdown machine process?
It can process copper, aluminum and aluminum alloy rods.
What models are listed in the source parameter image?
The parameter image lists D9, D11 and D13 configurations with 9, 11 and 13 dies.
Can the machine be equipped with an annealer?
Yes. The T5000 annealer can be configured for online annealing according to wire material and production requirements.
What take-up options are available?
The line can be matched with S630 single spooler, SS630 double spooler or S800 coiler.
Can the configuration be customized?
Yes. The machine model, die number, annealer, take-up type and production layout can be selected according to wire diameter, material and factory requirements.
Is this machine suitable for cable factories?
Yes. It is suitable for factories producing copper wire, aluminum wire, aluminum alloy conductor wire and cable products.
Start a project

Tell Us Your Target. We'll Design the Line.

Share your capacity, raw material and site conditions — we'll come back with a process route, equipment selection and a turnkey path to production.

Email Our Team View a Project
