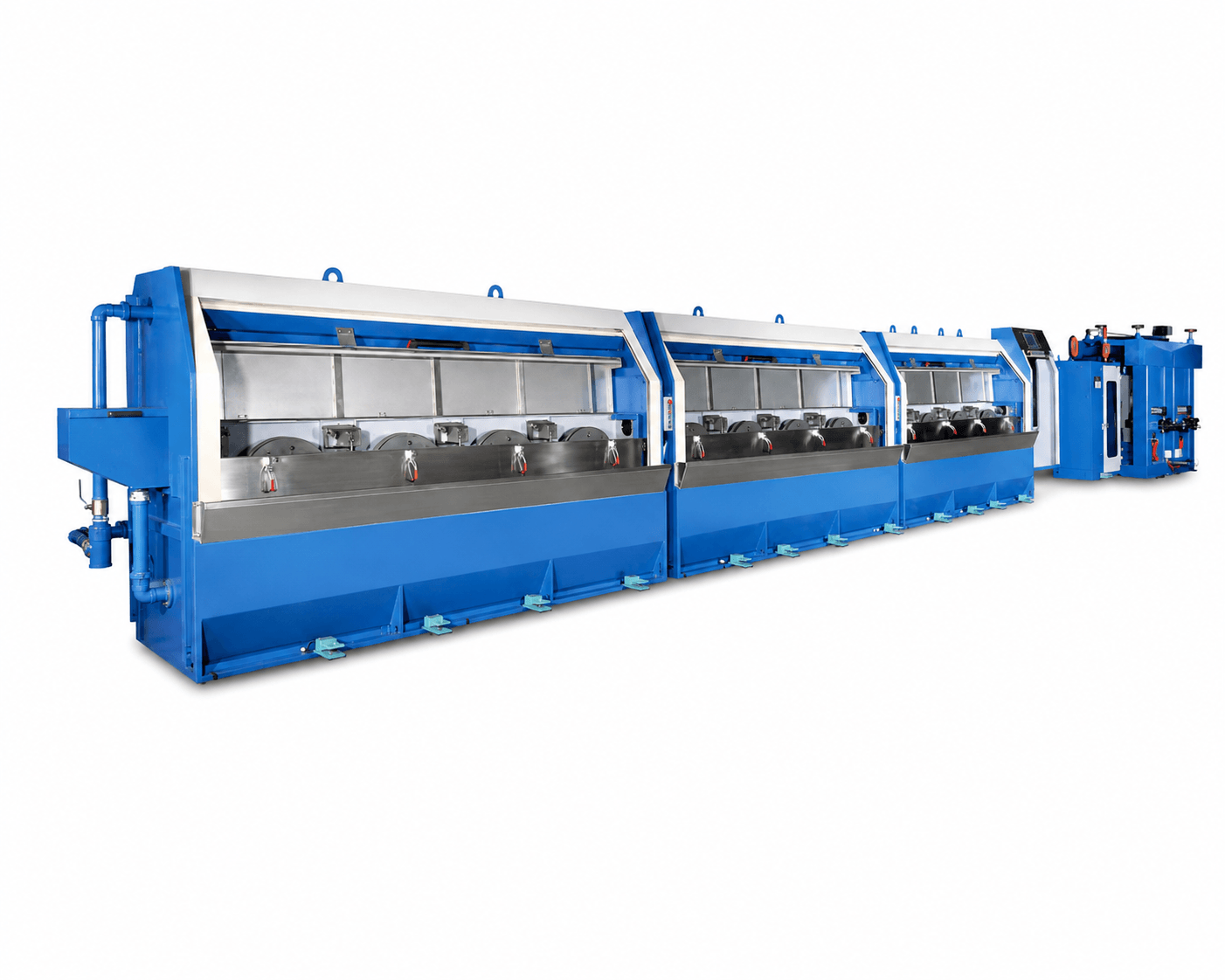

Single Wire Individual Motor Type Rod Breakdown Machine

The Single Wire Individual Motor Type Rod Breakdown Machine is designed for drawing copper, aluminum and aluminum alloy rods into different wire diameters for cable and conductor production. With individual motor drive, adjustable mechanical elongation rate, optional annealer and flexible take-up systems, it provides stable wire drawing performance for wire and cable manufacturers.
Get a Quote

Key Selling Points

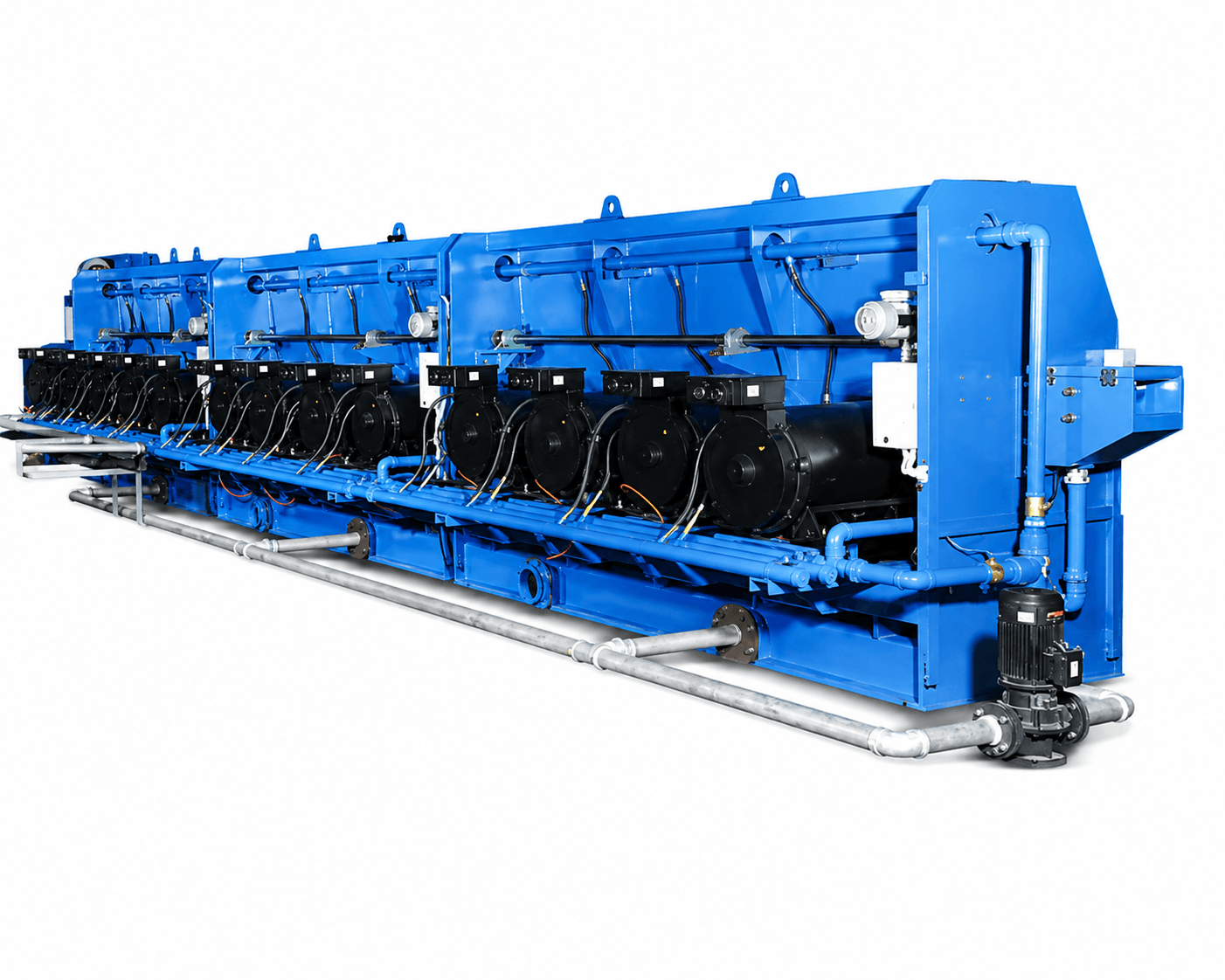

Individual Motor Drive Design

Each drawing section is driven by an independent motor, improving drawing stability, speed matching and process flexibility.

Suitable for Copper, Aluminum and Aluminum Alloy

The machine can process copper, aluminum and aluminum alloy materials, making it suitable for multi-material wire production.

Multiple Drawing Models Available

PM450-9, PM450-11 and PM450-13 models are available with 9, 11 or 13 dies to meet different wire diameter requirements.

Optional Online Annealing System

The T5000 annealer supports copper and aluminum wire annealing, helping improve wire softness and conductivity for downstream cable production.

Flexible Take-Up Solutions

The line can be matched with S630 single spooler, SS630 double spooler or S800 coiler according to factory layout and finished wire packaging requirements.

Good for Cable and Conductor Production

The machine is suitable for power cable, building wire, electrical conductor, aluminum alloy wire and copper wire production lines.

Applications

  • Copper wire drawing

  • Aluminum wire drawing

  • Aluminum alloy wire production

  • Power cable manufacturing

  • Electrical conductor production

  • Building wire production

  • Non-ferrous metal wire processing plants

  • Aluminum wire drawing

Standard Configurations

Three reference sizes cover most projects. Intermediate capacities and custom configurations are engineered on request.

Rod Breakdown Machine

Item

PM450-9

PM450-11

PM450-13

Inlet Diameter

Max 8.0 mm Cu / Max 9.50 mm Al / Max 9.50 mm Al Alloy

Same

Same

Outlet Diameter

Cu: 1.20-4.50 mm / Al: 1.70-5.0 mm / Al Alloy: 2.0-4.50 mm

Same

Same

Mechanical Speed

Max 1800-1200 m/min

Max 1800-1200 m/min

Max 1800-1200 m/min

Max. Number of Dies

9

11

13

Drawing Cone Diameter

450 mm

450 mm

450 mm

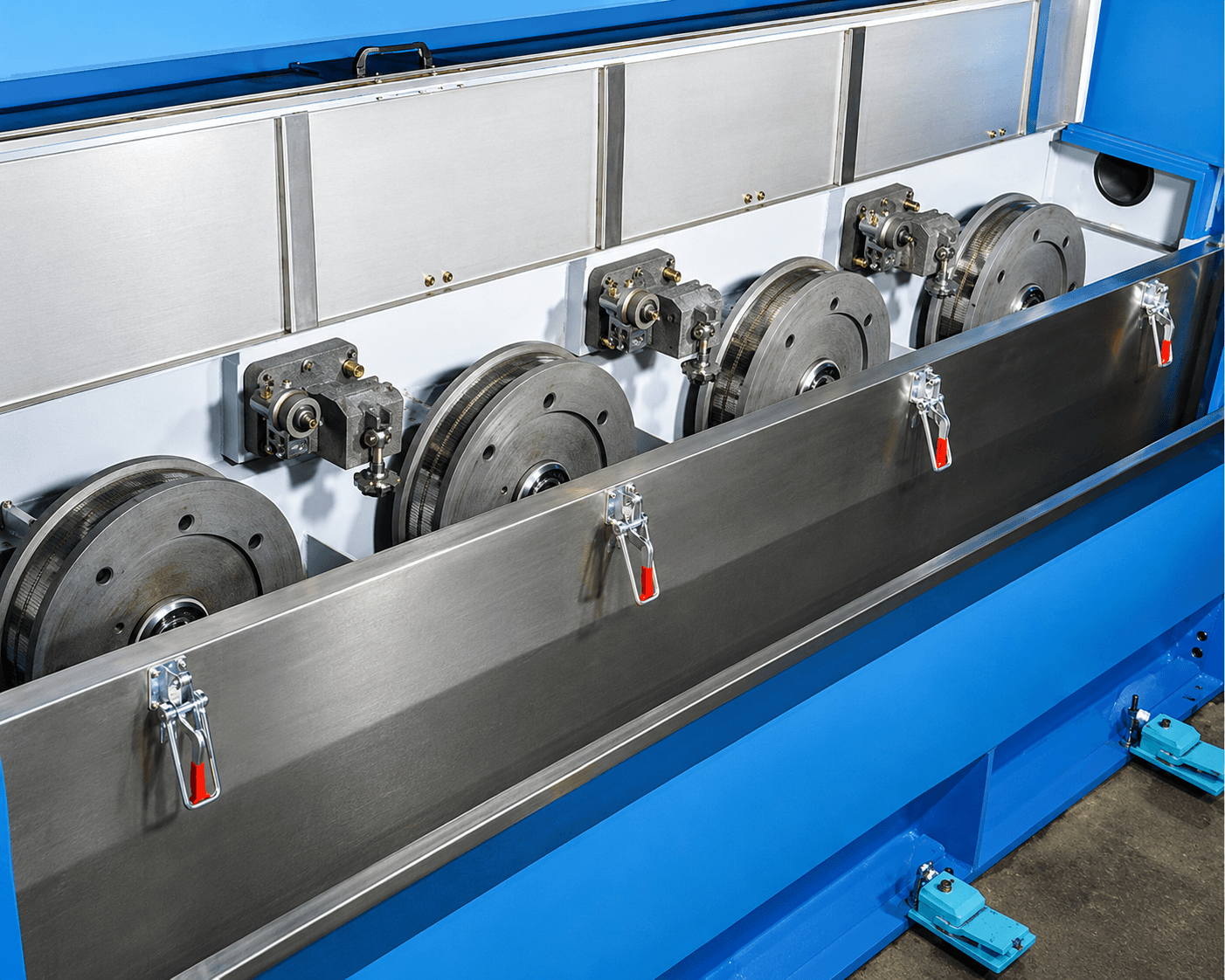

Capstan Wheel Diameter

450 mm

450 mm

450 mm

Mechanical Elongation Rate

Adjustable

Adjustable

Adjustable

Servo Motor Power

Cu: 55-75 kW / Al, Al Alloy: 45-55 kW

Same

Same

T5000 Annealer

Item

Specification

Production Range

1.20-3.50 mm / 1.20-4.50 mm

Mechanical Speed

Max 1500 m/min

Annealing Current

Max 5000A AC

Annealing Voltage

Max 53V AC

Annealing Capacity

283 KVA / 324 KVA

Spoolers and Coiler

Item

S630 Single Spooler

SS630 Double Spooler

S800 Coiler

Take-Up Range

Cu: 1.20-4.50 mm / Al: 1.70-5.0 mm / Al Alloy: 2.0-4.50 mm

Same

Same

Mechanical Speed

Max 1500 m/min

Max 1500 m/min

Max 1200 m/min

Motor Power

15 kW

22 kW

18.5 kW

Suitable Bobbin or Basket

PND500 / PND630

PND500 / PND630

580 x 1050 x 1810 mm

Bobbin or Basket Capacity

Cu: max 500 kg; Al / Al Alloy: max 150 kg

Cu: max 500 kg; Al / Al Alloy: max 150 kg

Cu: max 1800 kg; Al Alloy: max 550 kg


Lines Built, Shipped and
Commissioned.

Furnace Assembly

workshop

CCR Line

trial run

Export Packing

container load

Furnace Assembly

workshop

Start a project

Tell Us Your Target. We'll Design the Line.

Share your capacity, raw material and site conditions — we'll come back with a process route, equipment selection and a turnkey path to production.

Email Our Team View a Project
Address

No.310–311 National Road, Quanshan District, Xuzhou City, China

Frequently Asked Questions

Check our FAQs below, or reach out to our team for tailored answers and project quotation.

Get a Quote
What materials can this rod breakdown machine process?
It can process copper, aluminum and aluminum alloy rods.
What models are available?
The available models include PM450-9, PM450-11 and PM450-13, with 9, 11 and 13 dies.
Can the machine be equipped with an annealer?
Yes. The T5000 annealer can be configured for online annealing according to wire material and production requirements.
What take-up options are available?
The machine can be matched with S630 single spooler, SS630 double spooler or S800 coiler.
Is this machine suitable for cable factories?
Yes. It is suitable for wire and cable manufacturers producing copper wire, aluminum wire and aluminum alloy conductor wire.
Can the configuration be customized?
Yes. The machine model, die number, annealer, take-up type and production layout can be selected according to wire diameter, material and factory requirements.
